SELECTOR BOARD
(JE)
(JE)

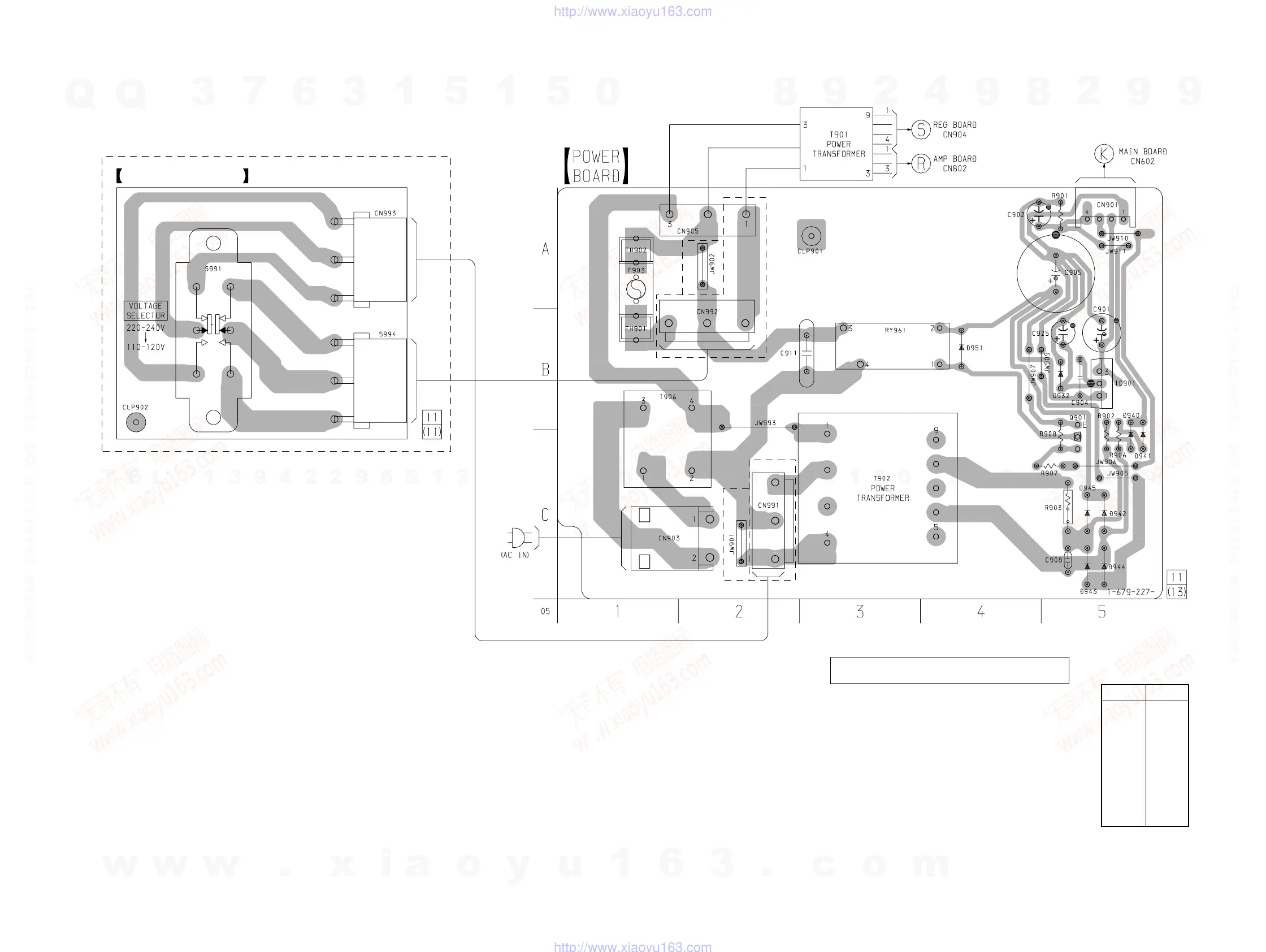

6-29. PRINTED WIRING BOARDS – POWER/SELECTOR Boards –• See page 53 for Circuit Boards Location.
There are a few cases that the part isn't mounted in model
is printed on diagrams.
• Semiconductor
Location
Ref. No. Location
D932 B-5
D940 C-5
D941 C-5
D942 C-5
D943 C-5
D944 C-5
D945 C-5
D951 B-4
IC901 B-5
Q901 C-5
(Page 76)
(Page 70)
(Page 68)
