Sony HCD-PX5 - Page 25

25

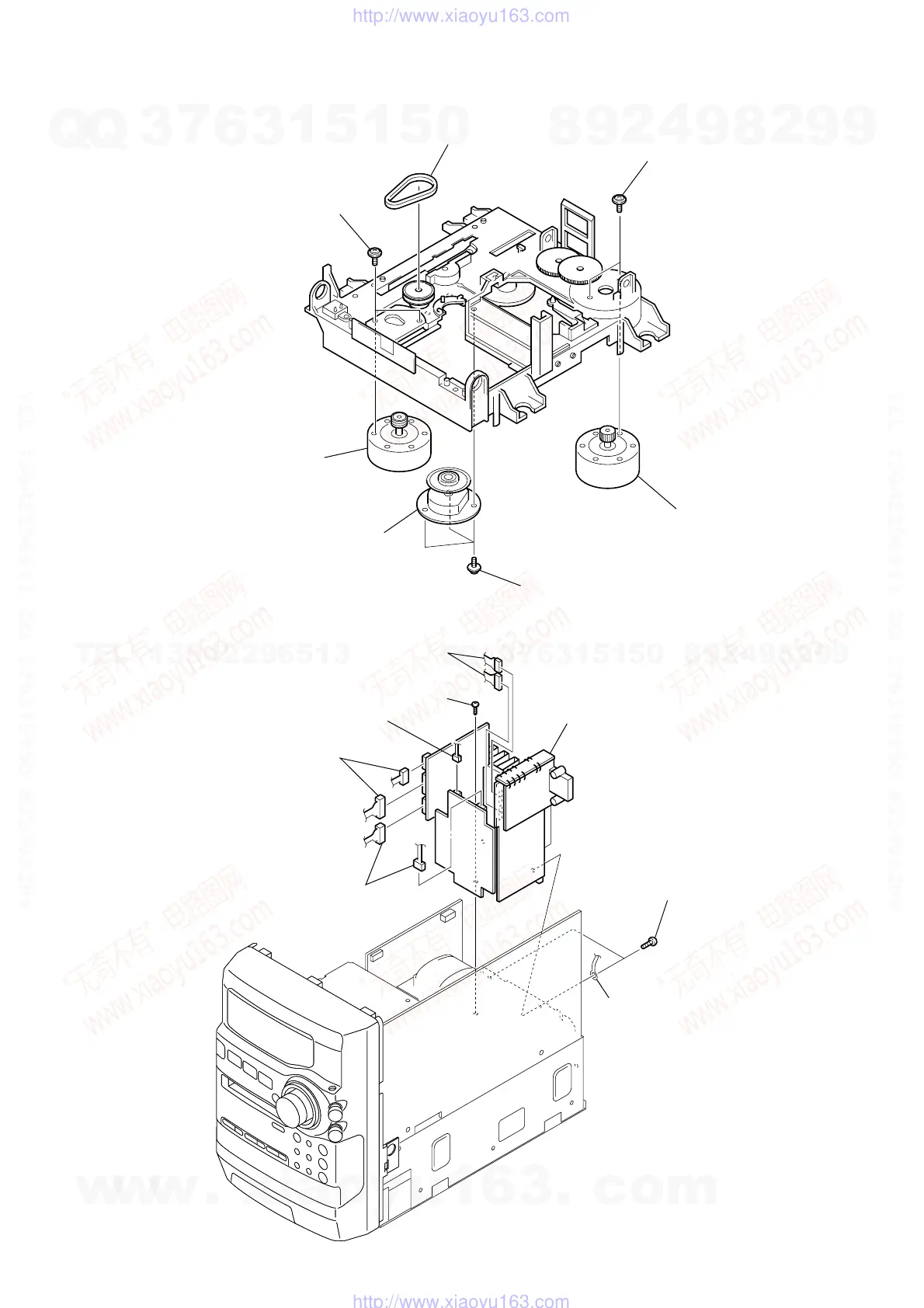

REG BOARD, AMP BOARD, HEAT SINK
SPINDLE MOTOR ASSY (M101), SLED MOTOR ASSY (M102), LOADING MOTOR ASSY (M103)
2 two screws
(PWH1.7
× 2.5)
1 belt (loading)
4 two screws
(PWH1.7
× 2.5)
5 sled motor assy
(M102)
6 three screws
(M1.7)
7 spindle motor assy
(M101)
3 loading motor assy
(M103)
5 REG board, AMP board,
heat sink
3 harness
1 two connectors
(CN802, 908)
1 two connectors
(CN904, 907)
1 two connectors
(CN801, 803)
1 connector (CN852)
4 screw (BVTT3 × 6)
2 two screws (BVTT3 × 6)
