Sony HCD-RX77 - Page 10

– 10 –

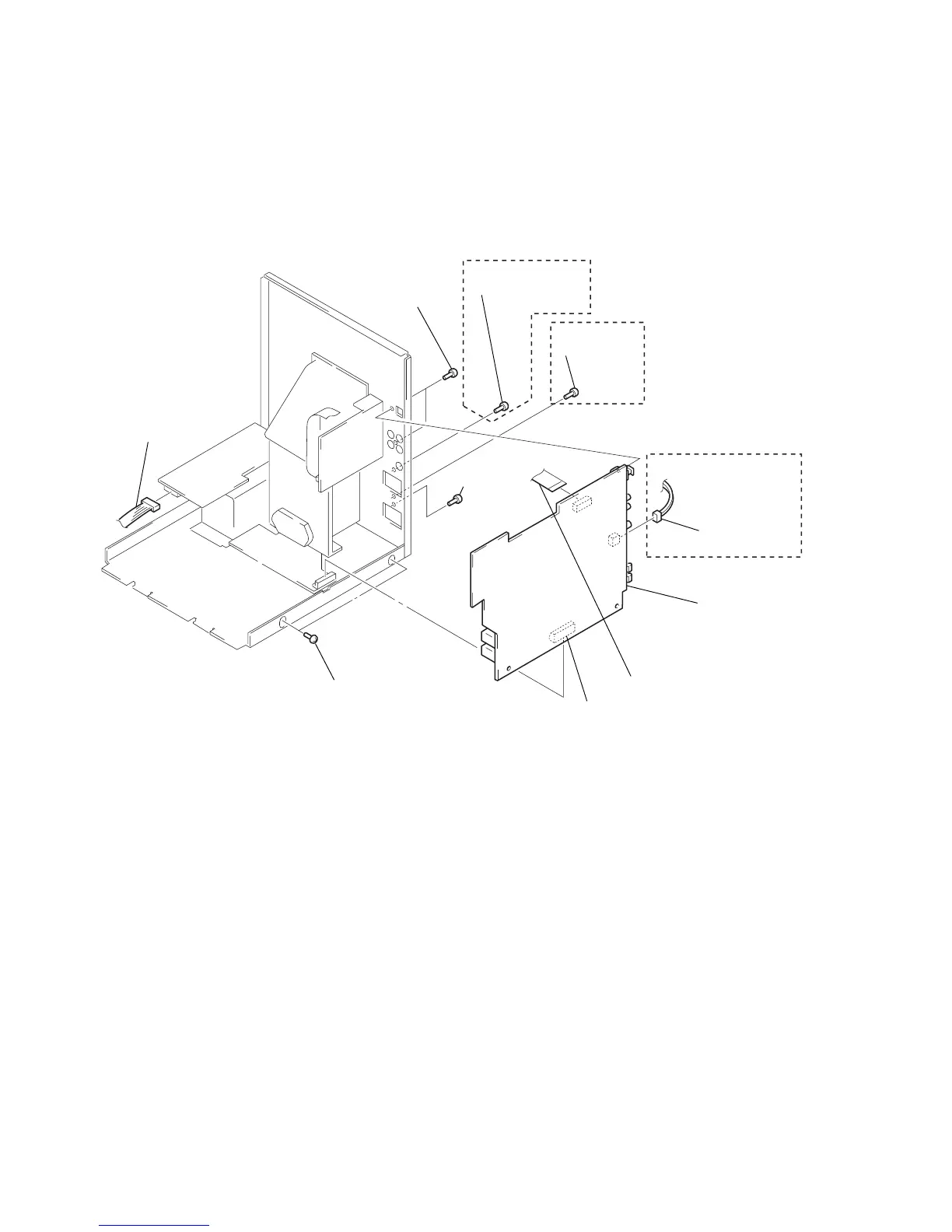

MAIN BOARD
Abbreviation
AUS : Australian
CND: Canadian
E2 : 120 V AC Area in E model
E3 : 240 V AC Area in E model
EA3 : Saudi Arabia
EA4 : Israel
EE : East European
G : German
HK : Hong Kong
IA : Indonesian
MX : Mexican
MY : Malaysia
SAF : South African
SP : Singapore
TH : Thai
TW : Taiwan
3 two screws
(BVTP3
× 8)
3 screw
(BVTP3
× 8)
2 wire (flat type) (13 core) (14 cm)
(CN102) (CND, E2, EA4, TH,
MX, AUS)
wire (flat type) (15 core) (14 cm)
(CN102) (GRX7: E3, EA3, MY,
SP, IA, HK, TW, SAF/GRX7J/
R700/RX77: AEP, G, EE/RX77S
)
6 MAIN board
5 connector
(CN101)
7 connector
(CN110)
4 two screws
(BVTT3
× 6)
1 connector
(CN11)
GRX7/GRX7J
GRX7/GRX7J/RX77: CND
3 screw
(BVTP3
× 8)
3 screw
(BVTP3
× 8)
CND
