Sony HCD-RX77 - Power Amp Section Printed Wiring Board; Power Amp Semiconductor Locations

– 72 –

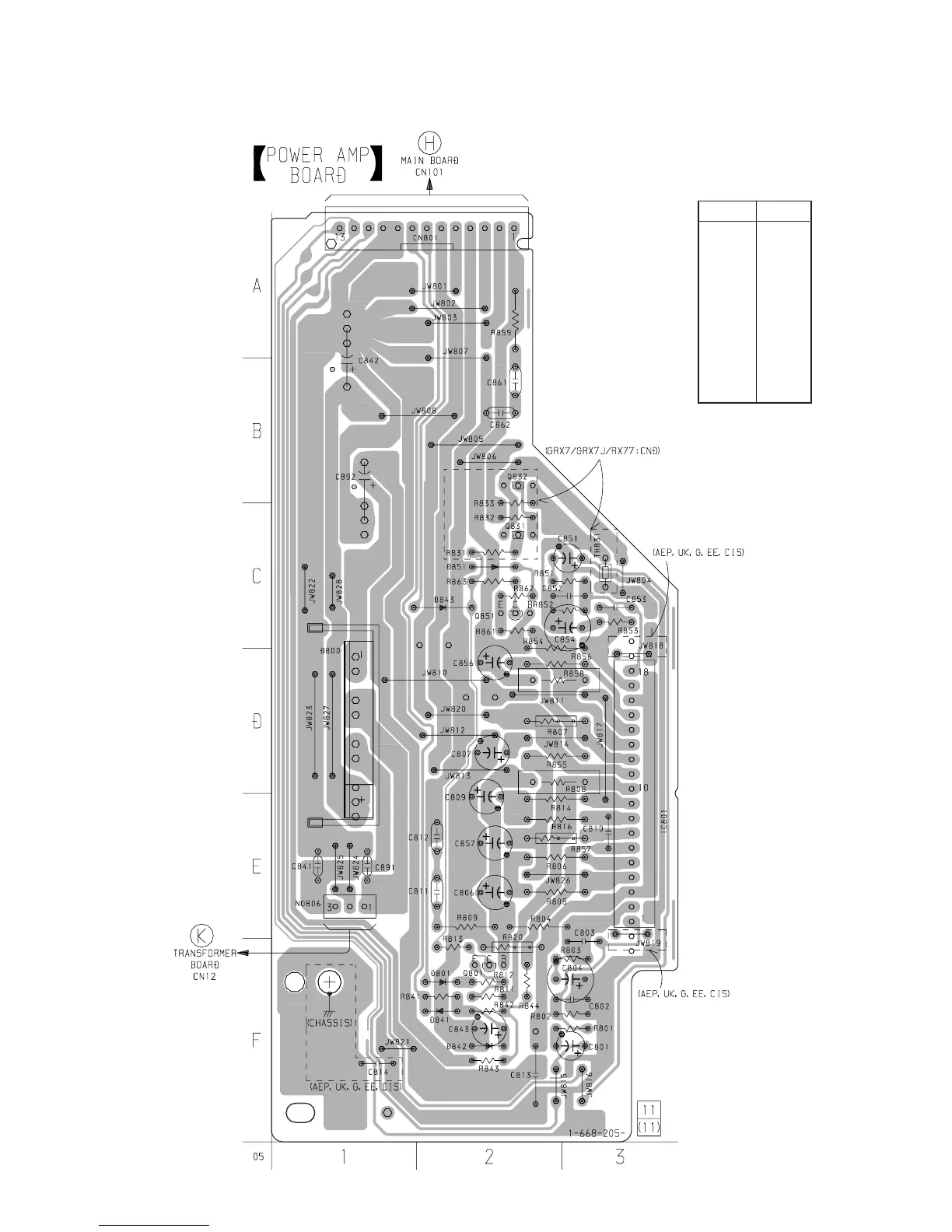

7-30. PRINTED WIRING BOARD – POWER AMP Section –
• See page 20 for Circuit Boards Location. • See page 33 for Note on Printed Wiring Boards.
HCD-GRX7/GRX7J/R700/RX77/RX77S
(page 56)
(page 75)
• Semiconductor
Location
Ref. No. Location
D800 D-1
D801 F-2
D841 F-2
D842 F-2
D843 C-2
D851 C-2
IC801 E-3
Q801 F-2
Q831 C-2
Q832 B-2
Q851 C-2
