HCD-GRX7/GRX7J/R700/RX77/RX77S
(Page 55)
(Page 55)
MAIN BOARD
CN104
MAIN BOARD
CN103
– 45 –
– 46 –

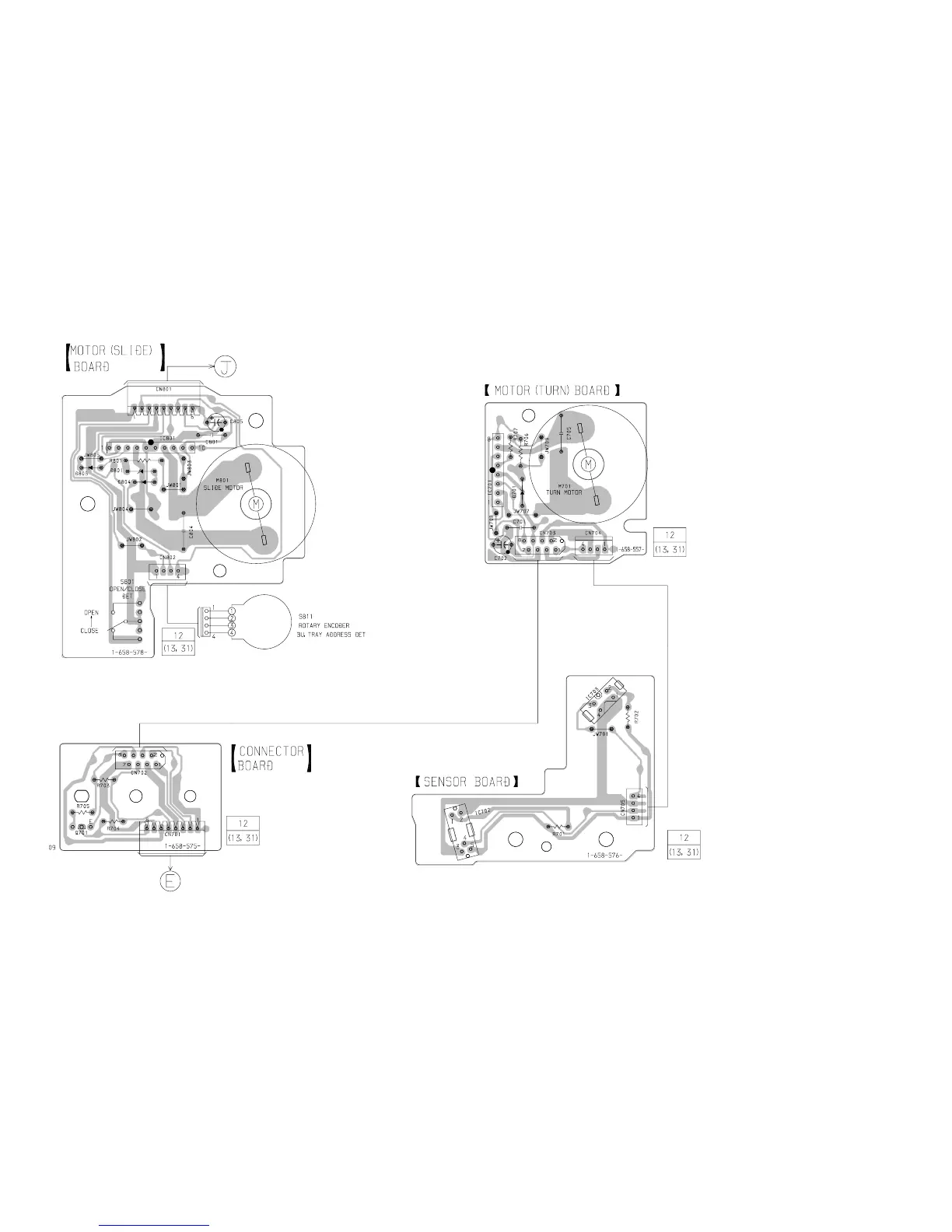

7-13. PRINTED WIRING BOARDS – CD MOTOR Section –
• See page 20 for Circuit Boards Location. • See page 33 for Note on Printed Wiring Boards.
