Sony HCD-RX77 - Panel Section Schematic Diagram

HCD-GRX7/GRX7J/R700/RX77/RX77S
– 67 –
– 68 –

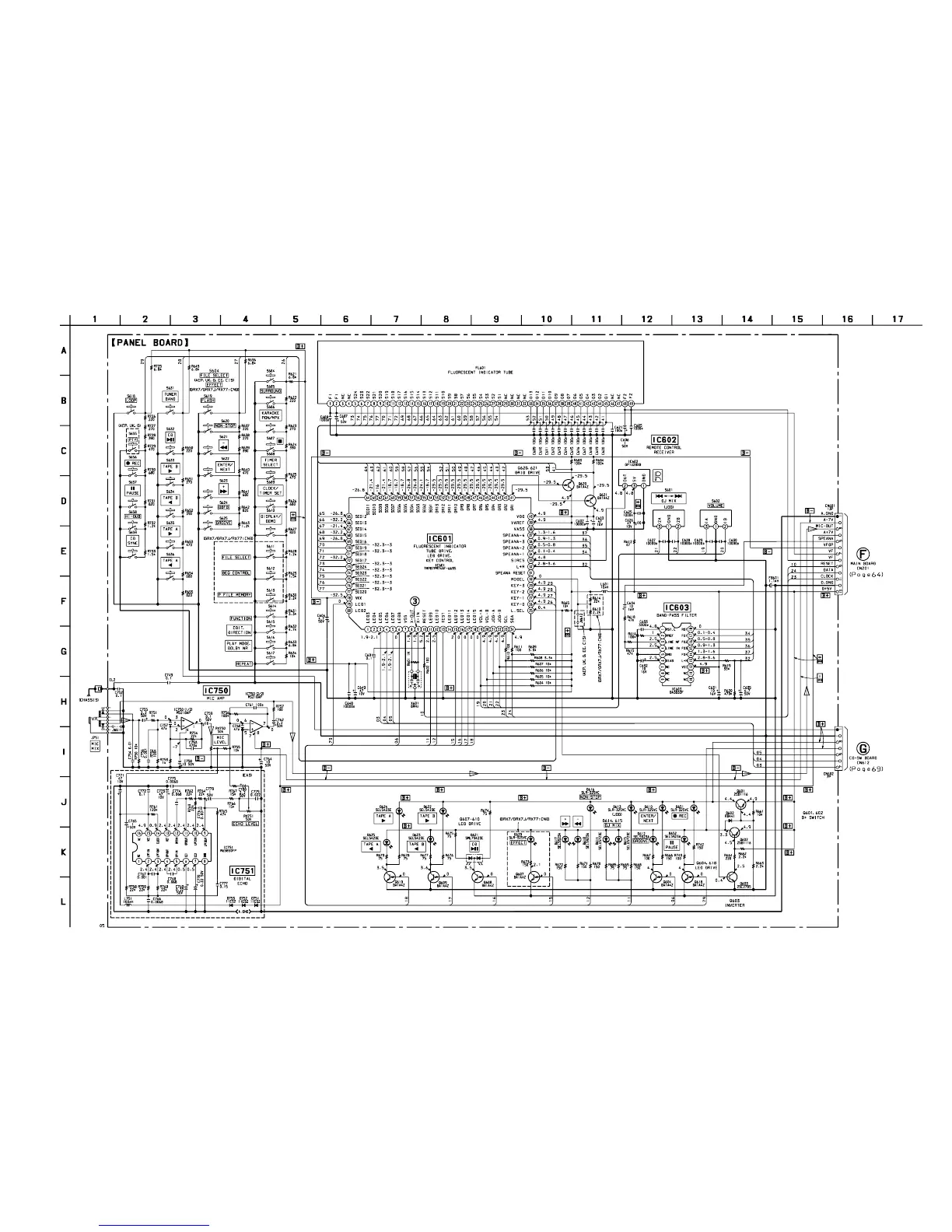

7-25. SCHEMATIC DIAGRAM – PANEL Section –
• See page 34 for Waveform. • See page 81 for IC Block Diagrams.
• See page 33 for Note on Schematic Diagram.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
