Sony HCD-RX77 - LEAF SW Section Printed Wiring Board; Leaf SW Semiconductor Locations

HCD-GRX7/GRX7J/R700/RX77/RX77S
(Page 55)
MAIN BOARD
CN107
(Page 61)
MAIN BOARD
CN107
– 53 –
– 54 –

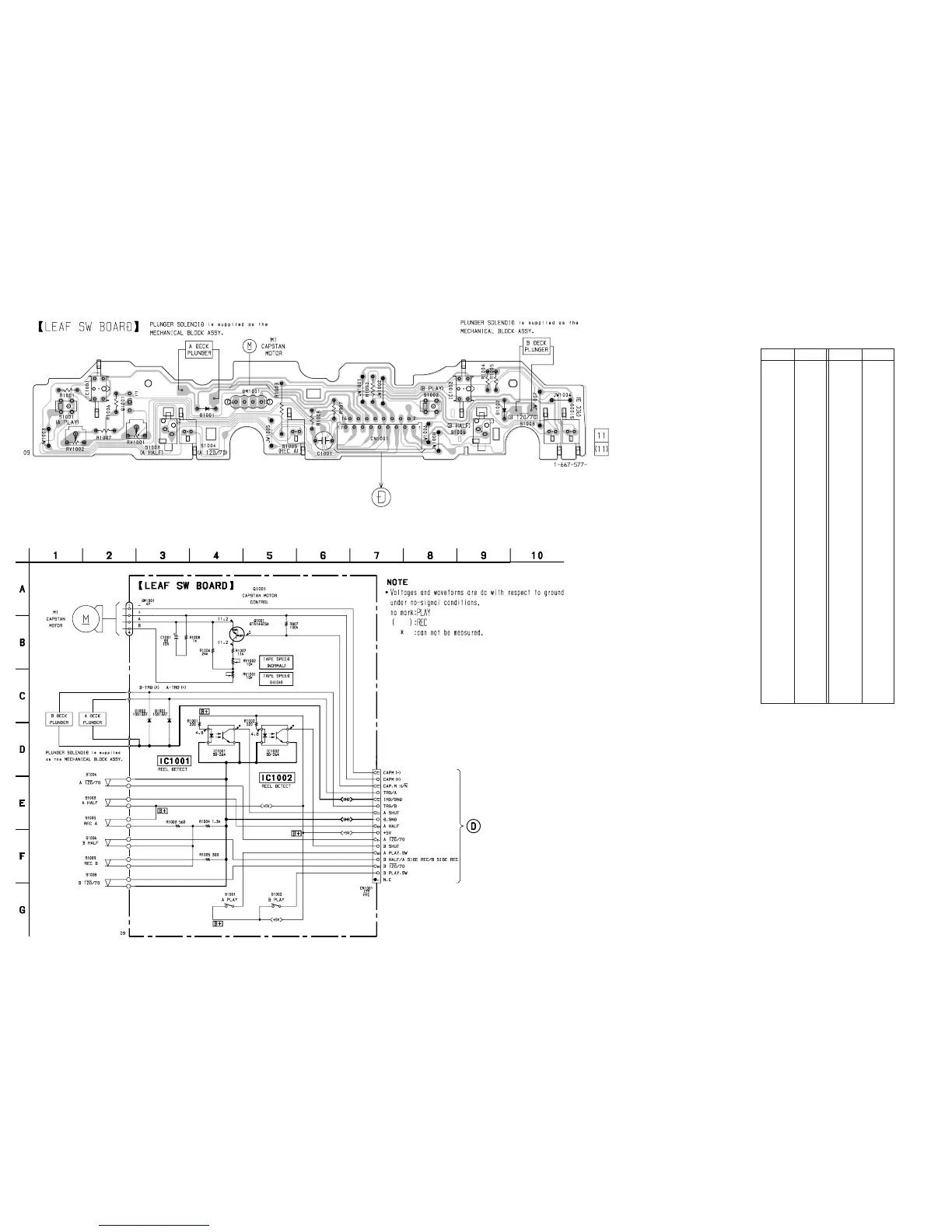

7-17. PRINTED WIRING BOARD – LEAF SW Section – • See page 20 for Circuit Boards Location. • See page 33 for Note on Printed Wiring Boards.
7-18. SCHEMATIC DIAGRAM – LEAF SW Section – • See page 33 for Note on Schematic Diagram.
Ref. No. Location
Ref. No. Location
• Semiconductor Location
D141 G-9
D401 G-10
D403 F-11
D404 F-11
D405 F-10
D406 F-11
D407 F-11
D501 E-5
D502 E-5
D503 E-5
D504 E-5
D505 E-6
D506 E-6
D507 F-3
D508 F-2
D901 I-6
D902 I-5
D903 I-6
D904 I-6
D905 G-6
D906 G-7
D907 H-4
D908 H-4
D909 I-5
D910 I-4
D911 I-4
D912 I-4
D913 G-3
D914 G-5
D915 I-3
IC101 D-9
IC102 F-10
IC191 D-11
IC301 B-2
IC381 A-11
IC501 D-4
IC502 E-6
IC901 G-5
IC902 G-3
IC903 H-3
Q111 F-9
Q112 F-9
Q113 H-8
Q161 E-8
Q162 D-8
Q163 H-8
Q191 D-11
Q331 C-2
Q332 D-2
Q333 C-2
Q334 D-2
Q335 C-1
Q336 E-2
Q337 E-2
Q338 F-2
Q339 F-2
Q340 E-2
Q341 E-2
Q342 E-2
Q343 E-2
Q401 E-11
Q402 E-11
Q431 G-9
Q432 H-8
Q433 H-9
Q434 H-8
Q435 H-8
Q436 G-8
Q437 G-8
Q501 E-7
Q571 E-6
Q572 E-6
Q575 F-8
Q901 F-6
Q902 G-6
Q903 H-6
Q905 F-6
Q906 G-6
Q907 G-4
Q908 G-5
Q909 H-4
Q910 I-4
Q913 G-6
Q914 F-7
Q951 G-7
Q952 G-7
