Sony HCD-RX77 - CD Section Printed Wiring Board

HCD-GRX7/GRX7J/R700/RX77/RX77S
(Page 55)
MAIN BOARD
CN105
– 41 –
– 42 –

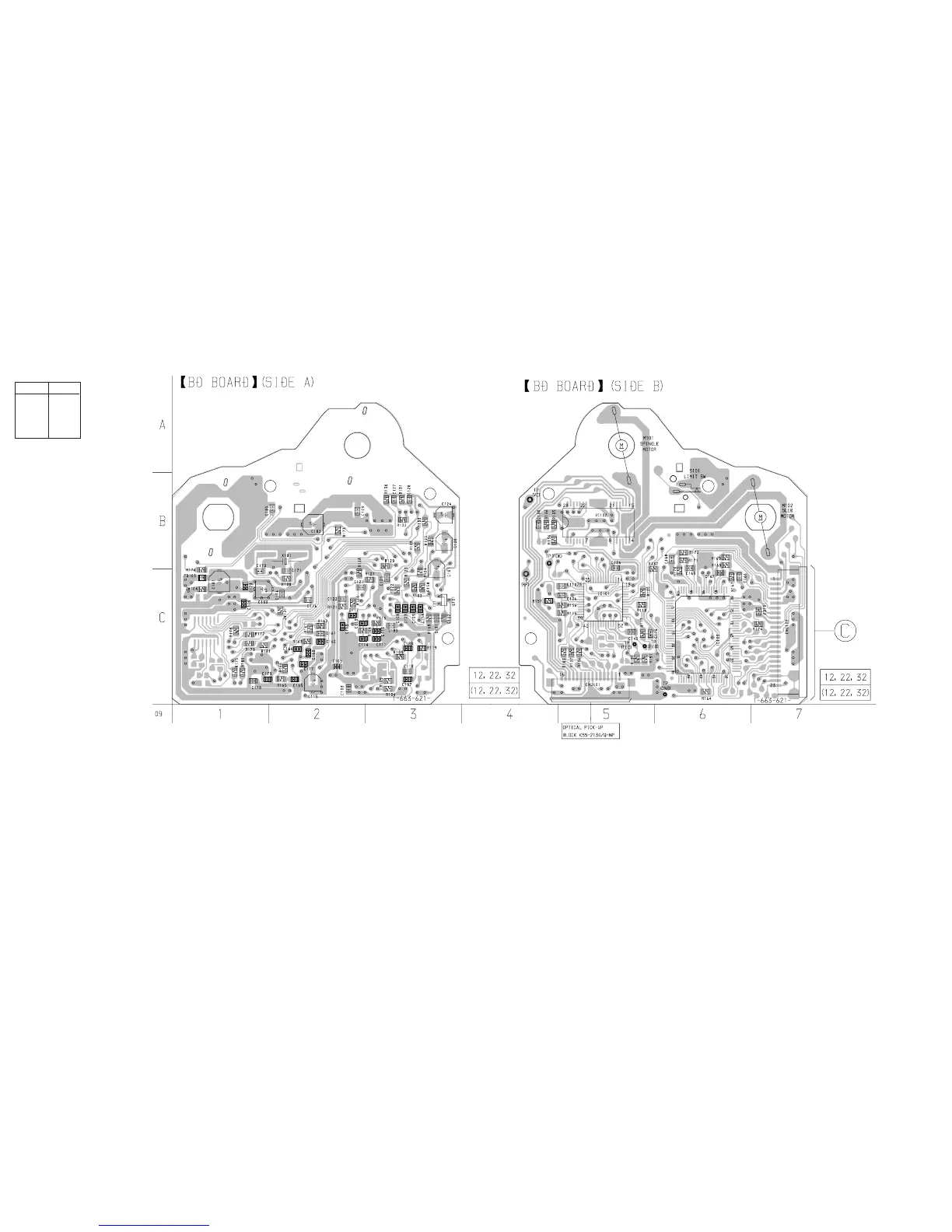

7-11. PRINTED WIRING BOARD – CD Section –
• See page 20 for Circuit Boards Location. • See page 33 for Note on Printed Wiring Board.
• Semiconductor
Location
Ref. No. Location
IC101 C-5
IC102 B-5
IC103 C-6
Q101 C-3
