Sony HCD-RX77 - Exploded Views Overview; Exploded View Notes

– 87 –
SECTION 8
EXPLODED VIEWS
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

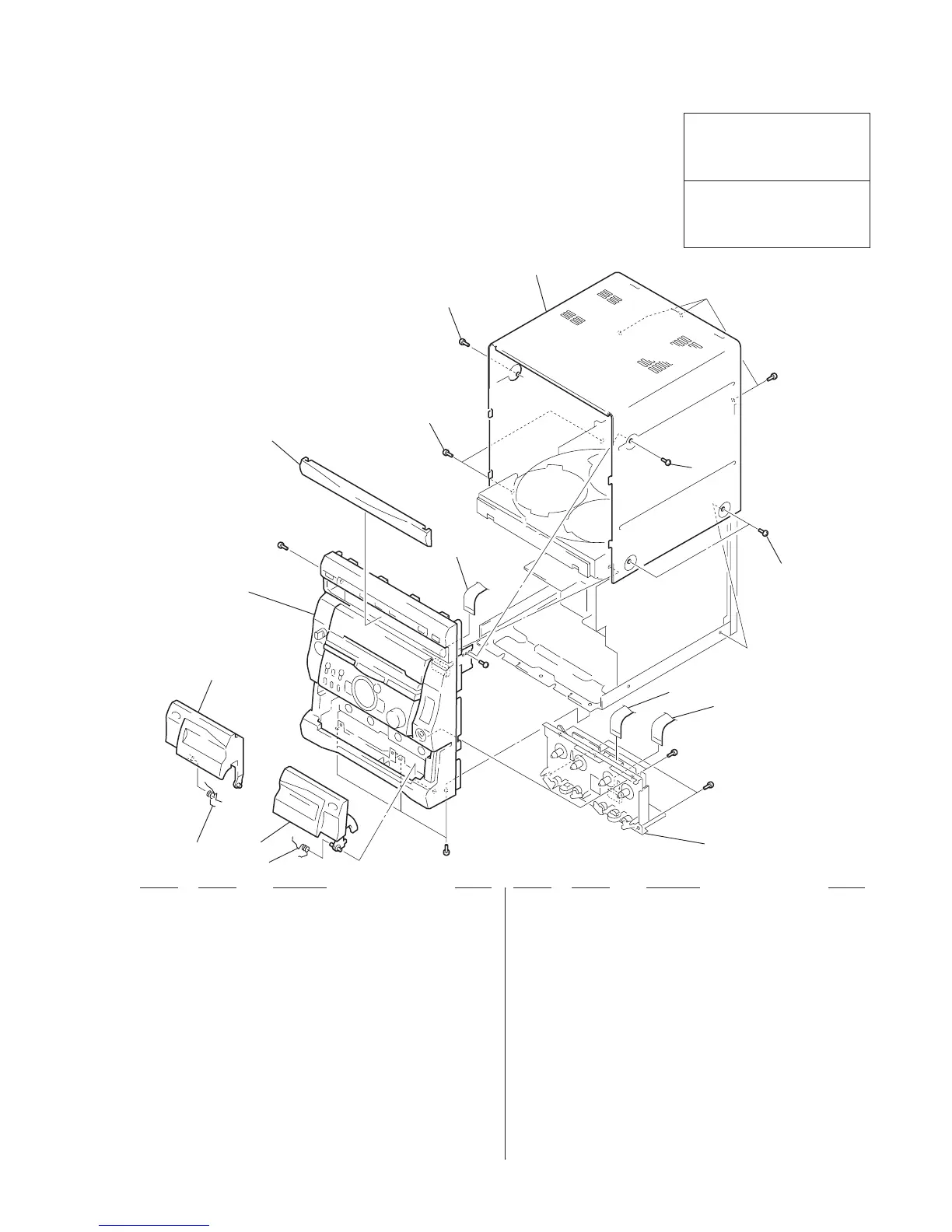

(1) CASE SECTION
9
8
8
7
10
11
7
5
4
3
2
1
6
#2
#5
#2
#2
#3
#3
Front panel
TCM-230AWR1
TCM-230PWR1
• Abbreviation
AUS : Australian IA : Indonesian
CND : Canadian JE : Tourist
E2 : 120 V AC Area in E model MX : Mexican
E3 : 240 V AC Area in E model MY : Malaysia
EA3 : Saudi Arabia SAF : South African
EA4 : Israel SP : Singapore
EE : East European TH : Thai
G : German TW : Taiwan
HK : Hong Kong
1 4-996-733-01 SPRING (B DECK)
2 X-4949-350-1 LID (R) ASSY, CASSETTE (SILVER)
(GRX7/GRX7J/RX77: CND)
2 X-4949-411-1 LID (R) ASSY, CASSETTE (BLACK) (R700)
2 X-4949-414-1 LID (R) ASSY, CASSETTE (SILVER)
(RX77: AEP, G/RX77S)
3 4-996-732-01 SPRING (A DECK)
4 X-4949-349-1 LID (L) ASSY, CASSETTE (SILVER)
(GRX7/GRX7J/RX77: CND)
4 X-4949-398-1 LID (L) ASSY, CASSETTE (SILVER)
(RX77: AEP, G/RX77S)
4 X-4949-410-1 LID (L) ASSY, CASSETTE (BLACK) (R700)
5 4-996-703-21 PANEL, LOADING (SILVER) (CND)
5 4-996-703-31 PANEL, LOADING (SILVER) (GRX7)
5 4-996-703-81 PANEL, LOADING (SILVER) (GRX7J)
5 4-998-222-01 PANEL, LOADING (SILVER) (RX77: AEP, G, EE)
5 4-998-222-11 PANEL, LOADING (SILVER) (RX77S)
5 4-998-222-21 PANEL, LOADING (BLACK) (R700)
6 1-769-984-11 WIRE (FLAT TYPE) (13 CORE) (23CM)
7 3-363-099-01 SCREW (CASE 3 TP2) (3X8) (BLACK) (R700)
7 3-363-099-11 SCREW (CASE 3 TP2) (3X8) (SILVER)
(GRX7/GRX7J/RX77/RX77S)
8 3-363-099-41 SCREW (CASE 3 TP2) (3X12) (BLACK) (R700)
8 3-363-099-71 SCREW (CASE 3 TP2) (3X12)(SILVER)
(GRX7/GRX7J/RX77/RX77S)
* 9 4-996-728-01 CASE (SILVER) (EXCEPT IA, R700)
* 9 4-996-728-21 CASE (SILVER) (IA)
* 9 4-996-728-81 CASE (BLACK) (R700)
10 1-773-048-11 WIRE (FLAT TYPE) (17 CORE)
11 1-773-025-11 WIRE (FLAT TYPE) (15 CORE) (33CM)
