Sony HCD-RX77 - Panel Section Printed Wiring Board; Panel Semiconductor Locations

HCD-GRX7/GRX7J/R700/RX77/RX77S
– 65 –
– 66 –

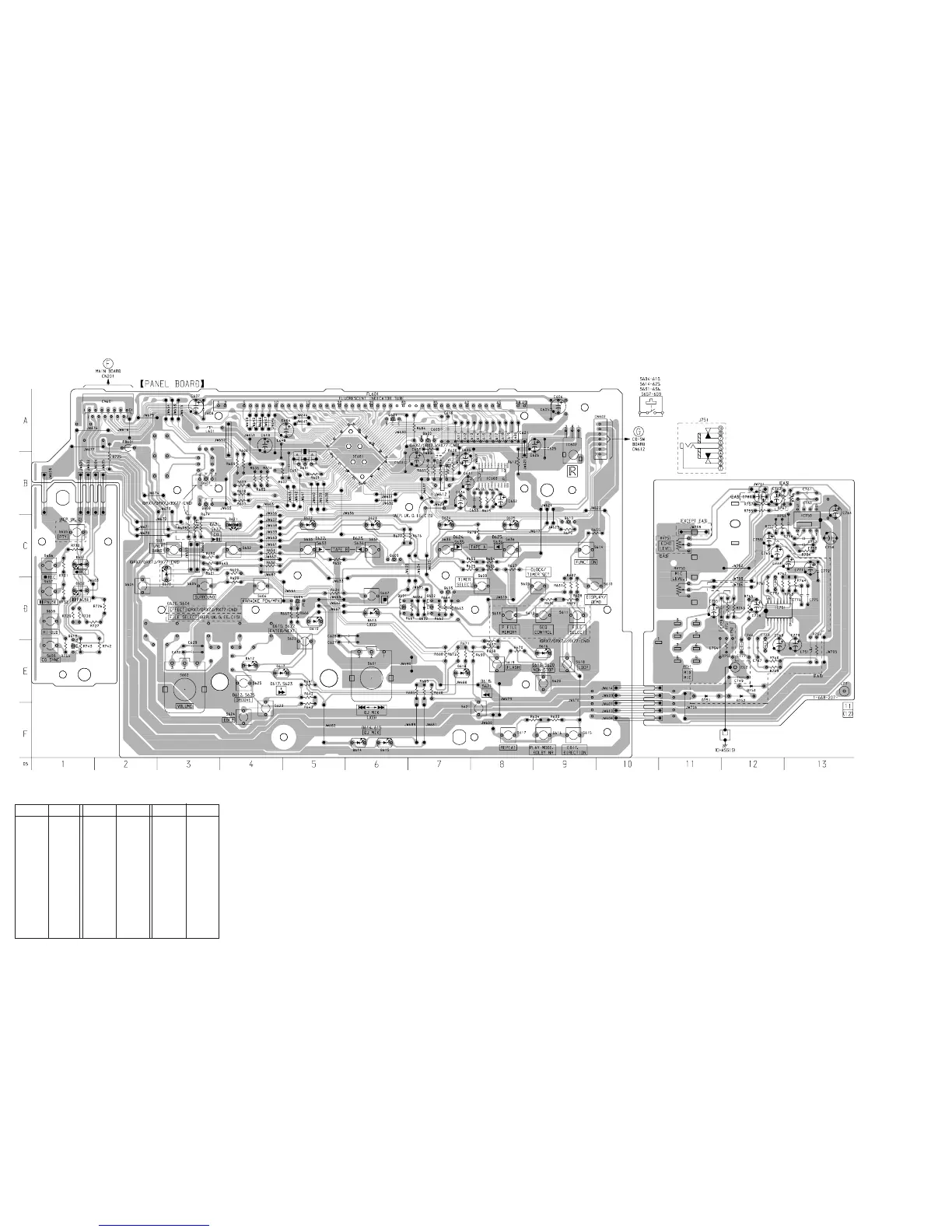

7-24. PRINTED WIRING BOARD – PANEL Section –
• See page 20 for Circuit Boards Location. • See page 33 for Note on Printed Wiring Boards.
Ref. No. Location
Ref. No. Location
• Semiconductor Location
D602 D-7
D610 D-5
D612 E-4
D613 D-6
D614 F-6
D615 F-6
D616 E-9
D617 E-4
D618 E-7
D620 C-3
D621 C-4
D622 C-5
D623 C-6
D624 C-7
D625 C-8
D651 C-1
D652 D-1
D751 E-11
D752 E-12
D753 E-12
IC601 B-6
IC602 A-9
IC603 B-8
IC750 C-13
IC751 D-12
Q601 D-6
Q602 D-7
Q603 D-7
Q604 D-5
Q607 B-3
Q608 B-3
Q609 C-6
Q610 C-9
Q618 E-1
Q620 A-7
Q621 A-6
Ref. No. Location
(Page 55)
(Page 70)
