Sony HCD-RX77 - Main Section Schematic (4;4)

HCD-GRX7/GRX7J/R700/RX77/RX77S
– 63 –
– 64 –

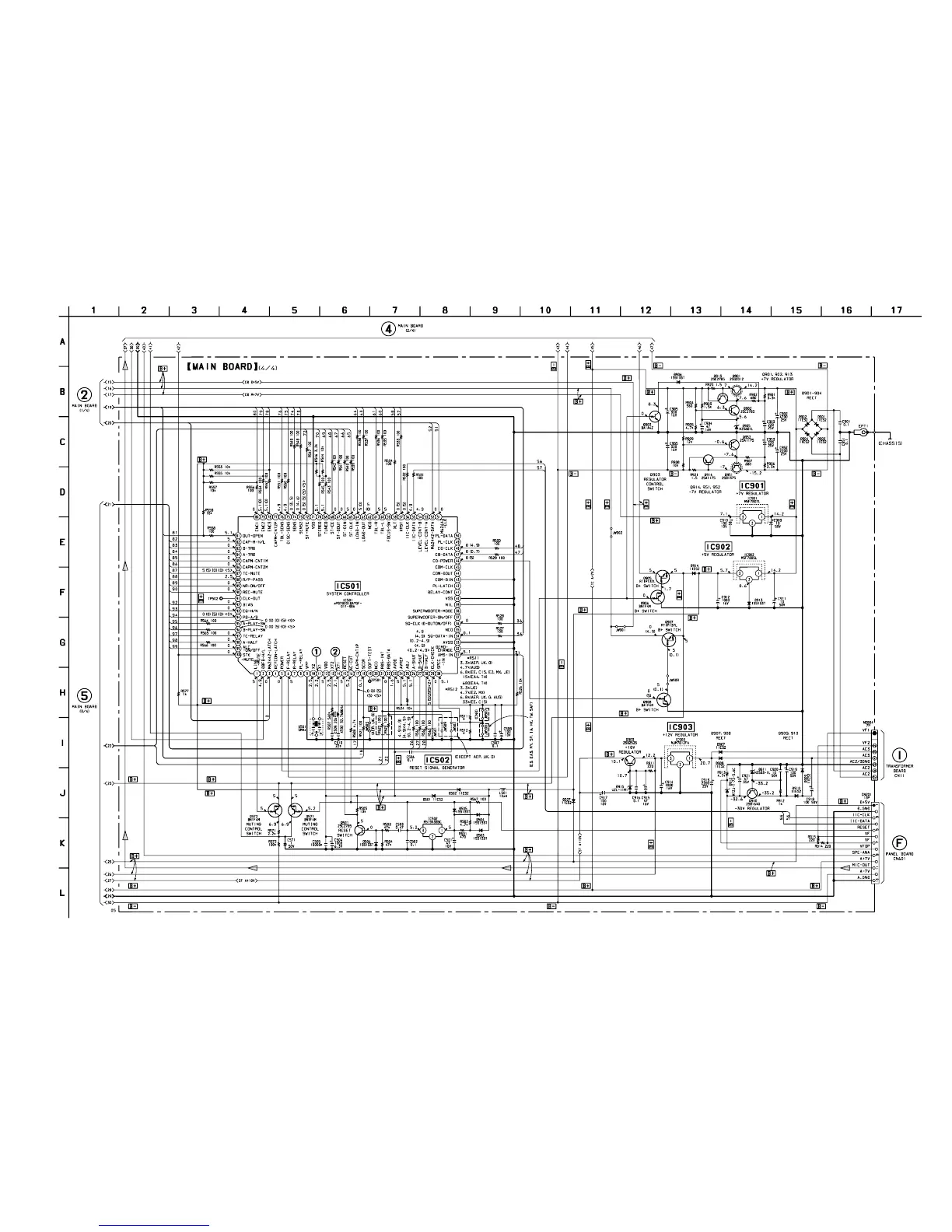

7-23. SCHEMATIC DIAGRAM – MAIN Section (4/4) –
• See page 34 for Waveforms. • See page 33 for Note on Schematic Diagram. • See page 55 and 56 for Printed Wiring Board.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM { } : PB (DECK A)
( ) : CD [ ] : PB (DECK B)
< > : REC
(Page 68)
(Page 76)
(Page 58)
(Page 62)
(Page 59)
