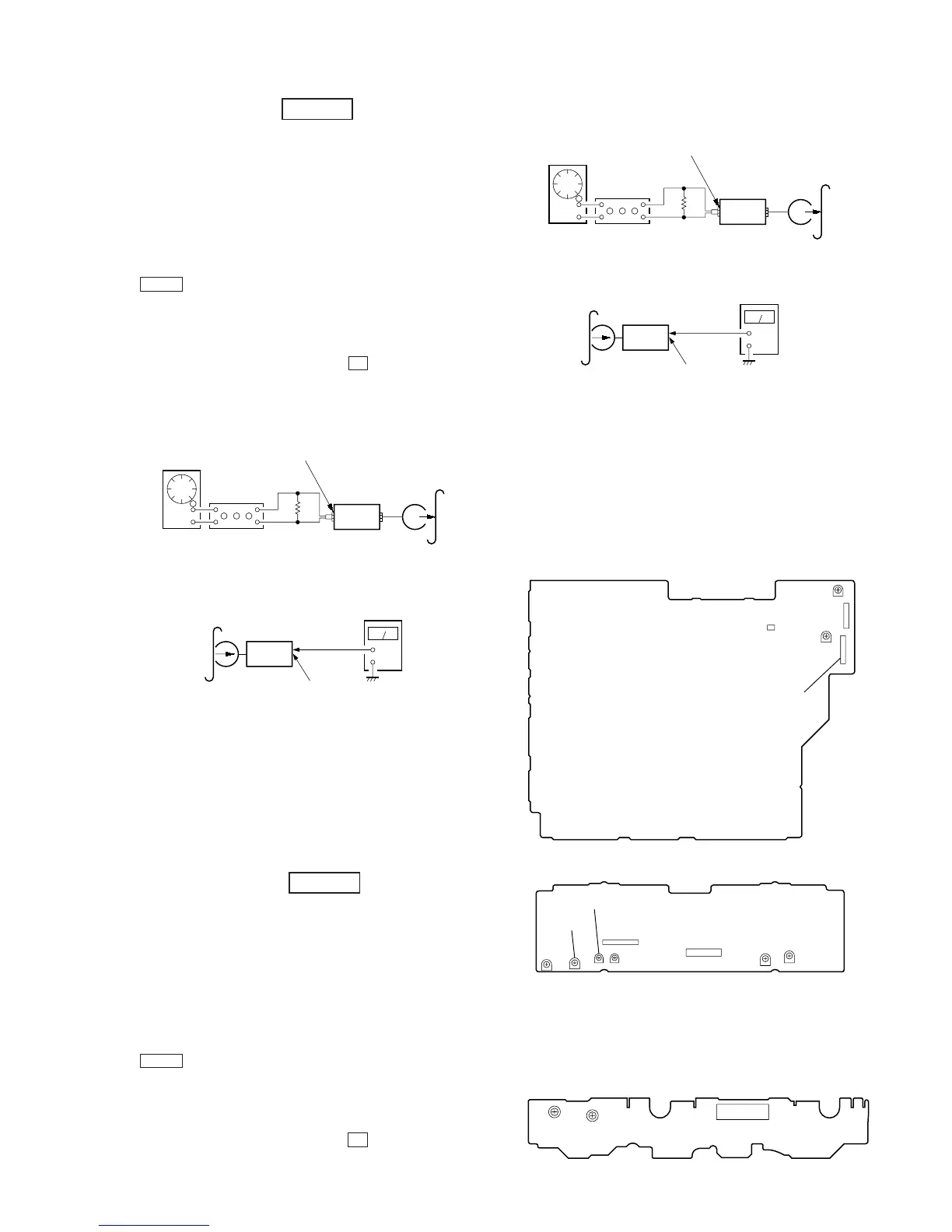

– 15 –
REC Bias Adjustment DECK B
Procedure:
4. Mode: Record
5. Mode: Playback
6. Confirm playback the signal recorded in step 3 become ad-
justable level as follows.
If these levels do not adjustable level, adjustment the RV341
(L-CH) and RV441 (R-CH) on the AUDIO board to repeat
steps 4 and 5.
Adjustable level: Playback output of 315 Hz to playback output
of 10 kHz: ±1.0 dB
Adjustment Location: AUDIO board
REC Level Adjustment
DECK B
Procedure:
attenuator
set
MD/VIDEO (AUDIO) IN
1) 315 Hz
2) 10 kHz
50 mV (–23.8 dB)
600
Ω
blank tape
CN-123
AF OSC
+
–
set
recorded
portion
CN301 (Pin
3
: L-CH)
(Pin
1
: R-CH)
level meter
4. Mode: Record
5. Mode: Playback
6. Confirm playback the signal recorded in step 3 become ad-
justable level as follows.
If these levels do not adjustable level, adjustment the RV301
(L-CH) and RV351 (R-CH) on the MAIN board to repeat steps
4 and 5.
Adjustable level:
CN301 PB level: 47.2 to 53.0 mV (–24.3 to –23.3 dB)
Adjustment Location: MAIN board
[MAIN BOARD] (Component Side)
[AUDIO BOARD] (Component Side)
[LEAF SW BOARD] (Component Side)
TAPE SPEED
RV1002
RV1001
(NORMAL) (HIGH)
CN1001
r
INTRODUCTION
When set to the test mode performed in Tape Speed Adjust-
ment, when the tape is rewound after recording, the “REC memory
mode” which rewinds only the recorded portion and playback is
set.
This “REC memory mode” is convenient for performing this ad-
justment. During recording, the input signal FUNCTION will au-
tomatically switch to VIDEO.
(If do not operation of stopped from recording complete, and press
– 0 button then rewind to recording start position.)
1. Press [FUNCTION] button to select VIDEO. (This step is not
necessary if the above test mode has already been set.)
2. Insert a tape into deck B.
3. After press [REC] button, press P button, then recording
start.
r
INTRODUCTION
When set to the test mode performed in Tape Speed Adjust-
ment, when the tape is rewound after recording, the “REC memory
mode” which rewinds only the recorded portion and playback is
set.
This “REC memory mode” is convenient for performing this ad-
justment. During recording, the input signal FUNCTION will au-
tomatically switch to VIDEO.
(If do not operation of stopped from recording complete, and press
– 0 button then rewind to recording start position.)
1. Press [FUNCTION] button to select VIDEO. (This step is not
necessary if the above test mode has already been set.)
2. Insert a tape into deck B.
3. After press [REC] button, press P button, then recording
start.
To Next Page
