– 37 –
HCD-GRX7/GRX7J/R700/RX77/RX77S
Ref. No. Location
• Semiconductor
Location
D21 D-1
D41 D-2
D42 E-3
D1751 F-2
IC21 D-1
IC41 C-3
IC1751 E-1
IC1752 F-3
Q1 D-1
Q2 D-1
Q3 C-2
Q4 C-2
Q5 C-2
Q9 B-1
Q11 B-3
Q12 A-3
Q13 A-2
Q14 A-2

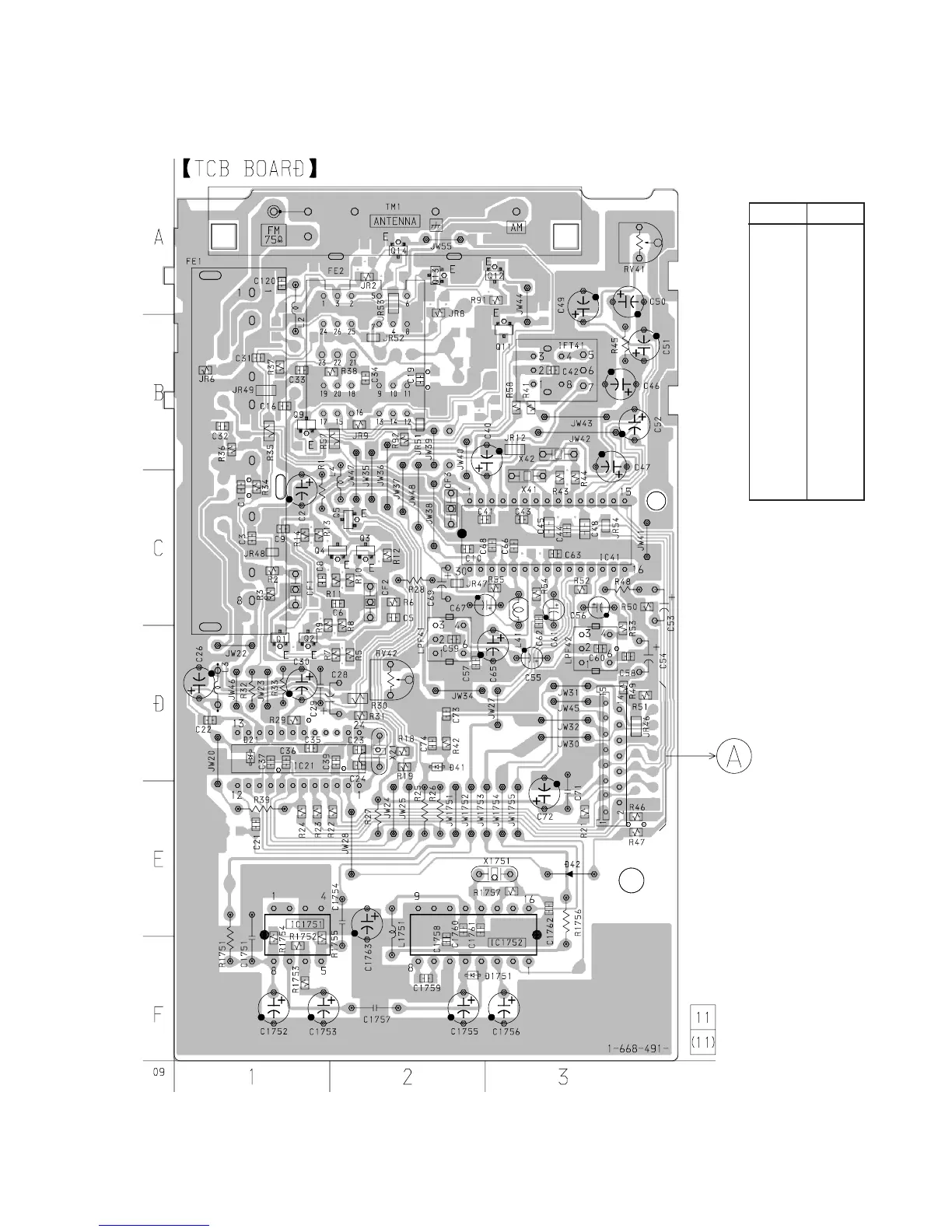

7-8. PRINTED WIRING BOARD – TUNER Section (AEP, UK, German models only) –
• See page 20 for Circuit Boards Location. • See page 33 for Note on Printed Wiring Board.
(Page 56)
MAIN BOARD
CN102
