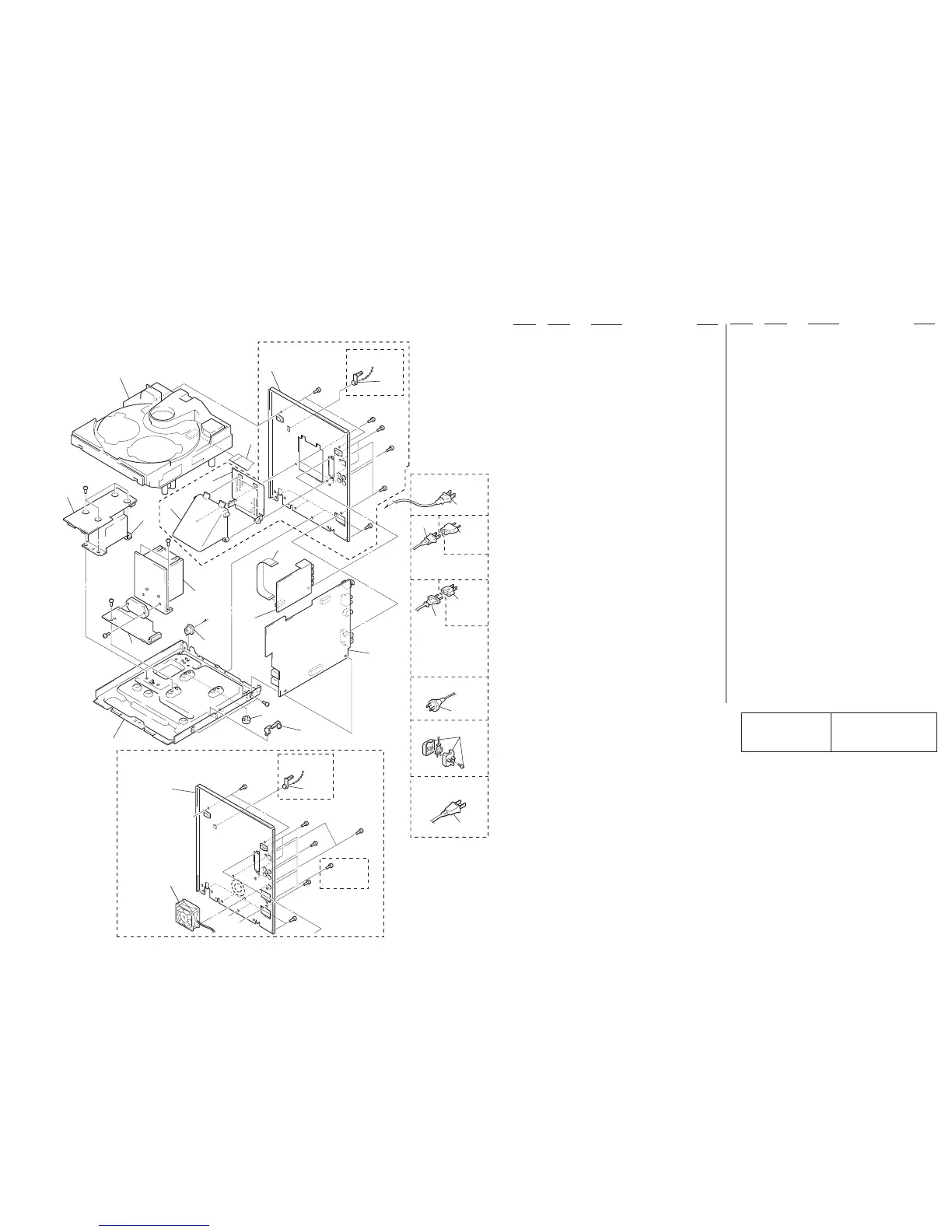

(3) CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
107
105
106
104
#2
CDM38L-5BD29AL
CDM38LH-5BD29AL
#5
#2
T11
#2
#5
not supplied
not supplied
#4
#2
#2
#2
A
A
#2
#2
UK
CND
E2, E3, IA, MX, TH
AEP, UK, G, EE, CIS,
EA3, EA4, MY, SP,
HK, TW, SAF
AUS
UK, HK
EA3, MY, SP,
TW, SAF
E3, IA, JE
103
101
102
108
109
112
111
#2
#2
#2
#2
#2
M401
#2
#2
113
107
110
115
115
114
114
TH
114
115
114
114
113
AEP, UK, G, EE, CIS
CND
HK, AUS
GRX7/GRX7J/RX77: CND
* 101 A-4403-998-A POWER AMP BOARD, COMPLETE
(AEP, UK, G, EE, CIS)
* 101 A-4407-010-A POWER AMP BOARD, COMPLETE
(EXCEPT CND, AEP, UK, G, EE, CIS)
* 101 A-4407-027-A POWER AMP BOARD, COMPLETE (CND)
* 102 3-703-244-00 BUSHING (2104), CORD (CND, AEP, UK, G,
EE, CIS, EA3, MY, SP, HK, TW, SAF, AUS)
102 3-703-571-11 BUSHING (S) (4516), CORD
(E2, E3, EA4, TH, MX, JE)
102 4-966-266-01 BUSHING (S) (FBS002), CORD (IA)
* 103 1-668-208-11 TRANSFORMER BOARD
104 4-996-736-01 DUCT (A) (AEP, UK, G, EE, CIS)
105 4-996-701-01 DUCT (B) (AEP, UK, G, EE, CIS)
106 1-783-570-11 WIRE (FLAT TYPE) (19 CORE) (24CM)
* 107 4-996-843-01 PANEL, BACK (CND)
* 107 4-996-843-61 PANEL, BACK (EA4, TH)
* 107 4-996-844-01 PANEL, BACK (E2, E3)
* 107 4-996-844-11 PANEL, BACK (MY, SP, SAF)
* 107 4-996-844-21 PANEL, BACK (GRX7: EA3, TW)
* 107 4-996-844-31 PANEL, BACK (HK)
* 107 4-996-844-41 PANEL, BACK (AUS)
* 107 4-996-844-51 PANEL, BACK (MX)
* 107 4-996-844-71 PANEL, BACK (IA)
* 107 4-996-844-81 PANEL, BACK (GRX7J)
* 107 4-996-845-01 PANEL, BACK (RX77S: UK)
* 107 4-996-845-11 PANEL, BACK (RX77S: EE, CIS)
* 107 4-996-845-21 PANEL, BACK (R700)
* 107 4-996-845-31 PANEL, BACK (RX77: AEP, G)
* 107 4-996-845-41 PANEL, BACK (RX77: EE)
108 1-769-976-11 WIRE (FLAT TYPE) (13 CORE) (14CM)
(CND, E2, EA4, TH, MX, AUS)
108 1-773-008-11 WIRE (FLAT TYPE) (15 CORE) (14CM)
(GRX7: E3, EA3, MY, SP, IA, HK, TW, SAF/
GRX7J/R700/RX77: AEP, G, EE, RX77S)
109 1-233-544-11 ENCAPSULATED COMPONENT (CND)
109 1-233-545-11 ENCAPSULATED COMPONENT
(E2, EA4, TH, MX, AUS)
109 1-233-546-11 ENCAPSULATED COMPONENT
(E3, EA3, MY, SP, IA, HK, TW, SAF)
109 1-693-385-11 TUNER (JE)
* 109 A-4303-588-A TCB BOARD, COMPLETE (EE, CIS)
* 109 A-4303-590-A TCB BOARD, COMPLETE (AEP, UK, G)
* 110 A-4403-987-A MAIN BOARD, COMPLETE (EE, CIS)
* 110 A-4403-992-A MAIN BOARD, COMPLETE (AEP, UK, G)
* 110 A-4407-007-A MAIN BOARD, COMPLETE
(GRX7: E3, EA3, MY, SP, HK, TW, SAF)
* 110 A-4407-017-A MAIN BOARD, COMPLETE (E2, MX)
* 110 A-4407-021-A MAIN BOARD, COMPLETE (AUS)
* 110 A-4407-024-A MAIN BOARD, COMPLETE (CND)
* 110 A-4407-032-A MAIN BOARD, COMPLETE (EA4, TH)
* 110 A-4407-040-A MAIN BOARD, COMPLETE (IA)
* 110 A-4407-048-A MAIN BOARD, COMPLETE (JE)
* 110 A-4407-056-A MAIN BOARD, COMPLETE (GRX7J: EA3)
111 4-965-822-01 FOOT
* 112 4-988-533-01 HOLDER, PWB
113 4-956-370-12 BAND, PLUG FIXED (UK, HK, AUS)
0 114 1-575-651-11 CORD, POWER
(EA3, EA4, MY, SP, HK, TW, SAF)
0 114 1-575-653-11 CORD, POWER (E2, E3, IA, MX, JE)
0 114 1-690-608-11 CORD, POWER (AUS)
0 114 1-690-609-21 CORD, POWER (CND)
0 114 1-751-326-31 CORD, POWER (TH)
0 114 1-775-787-71 CORD, POWER (AEP, UK, G, EE, CIS)
0 115 1-569-007-11 ADAPTOR, CONVERSION 2P (E3, IA, JE)
0 115 1-569-008-11 ADAPTOR, CONVERSION 2P
(EA3, MY, SP, TW, SAF)
0 115 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK, HK)
M401 1-698-792-11 FAN, DC (GRX7/GRX7J/RX77: CND)
0 T11 1-431-659-11 TRANSFORMER, POWER (CND)
0 T11 1-431-660-11 TRANSFORMER, POWER (AEP, UK, G, EE,CIS)
0 T11 1-431-661-11 TRANSFORMER, POWER (GRX7/GRX7J)
6 1-769-984-11 WIRE (FLAT TYPE) (13 CORE) (26CM)
10 1-773-048-11 WIRE (FLAT TYPE) (17 CORE)
11 1-773-025-11 WIRE (FLAT TYPE) (15 CORE) (33CM)
