– 95 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 451 X-3374-214-1 CHASSIS ASSY, MAIN
452 3-016-570-01 BELT (CAPSTAN)
453 3-016-569-01 BELT (TENSION)
454 3-017-360-01 BRACKET (MOTOR)
455 X-3374-234-1 FLYWHEEL (FWD) ASSY
456 X-3374-235-1 FLYWHEEL (REV) ASSY
457 X-3374-238-1 PULLEY ASSY, TENSION
458 3-024-405-01 BELT (FR)
459 A-2004-629-A MECHANICAL BLOCK ASSY (230AWR1)
(*NOTE)
459 A-2004-630-A MECHANICAL BLOCK ASSY (230PWR1)
(*NOTE)
460 3-016-566-01 SLIDER, REVERSE
* 461 A-2007-732-A LEAF SW BOARD, COMPLETE
462 3-016-575-01 SPRING, TORSION
463 3-019-208-01 WASHER, STOPPER
M1 A-2004-628-A MOTOR ASSY, CAPSTAN

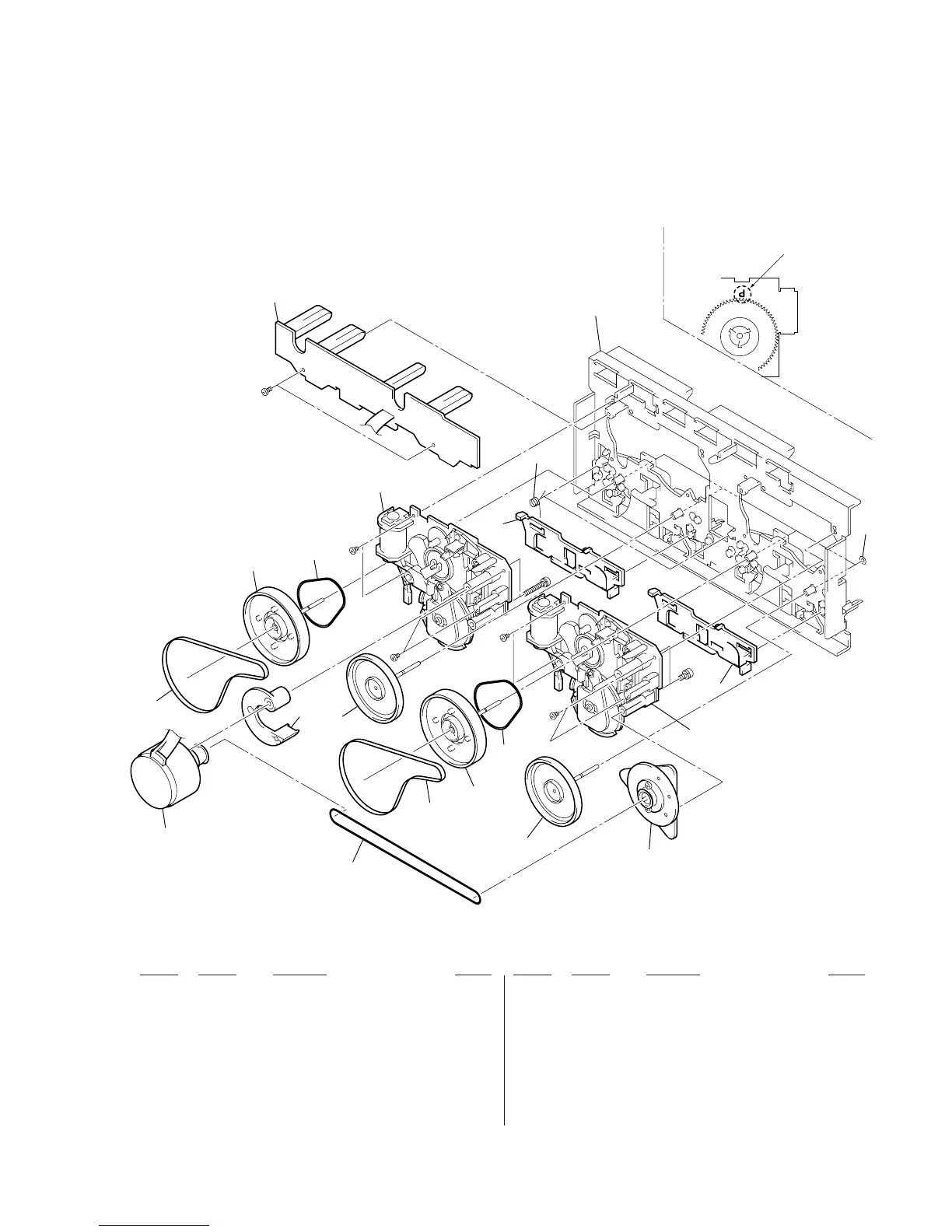

(8) TAPE MECHANISM DECK SECTION-2
TCM-230AWR1
TCM-230PWR1
451
452
452
453
454
455
455
456
456
457
458
458
459
459
460
460
461
462
463
M1
#10
#11
#12
#10
#10
#10
#13
Parts with “P” mark: 230PWR1
Parts without “P” mark: 230AWR1
*
NOTE: Two types of parts which are not interchangeable are available
for the mechanical block assembly. When replacing the parts,
refer to the following figure, and use the appropriate part.
To Next Page
