Sony HCD-TB10 - H;P & PANEL Board Removal; LCD & Back Light Board Removal

10
HCD-TB10

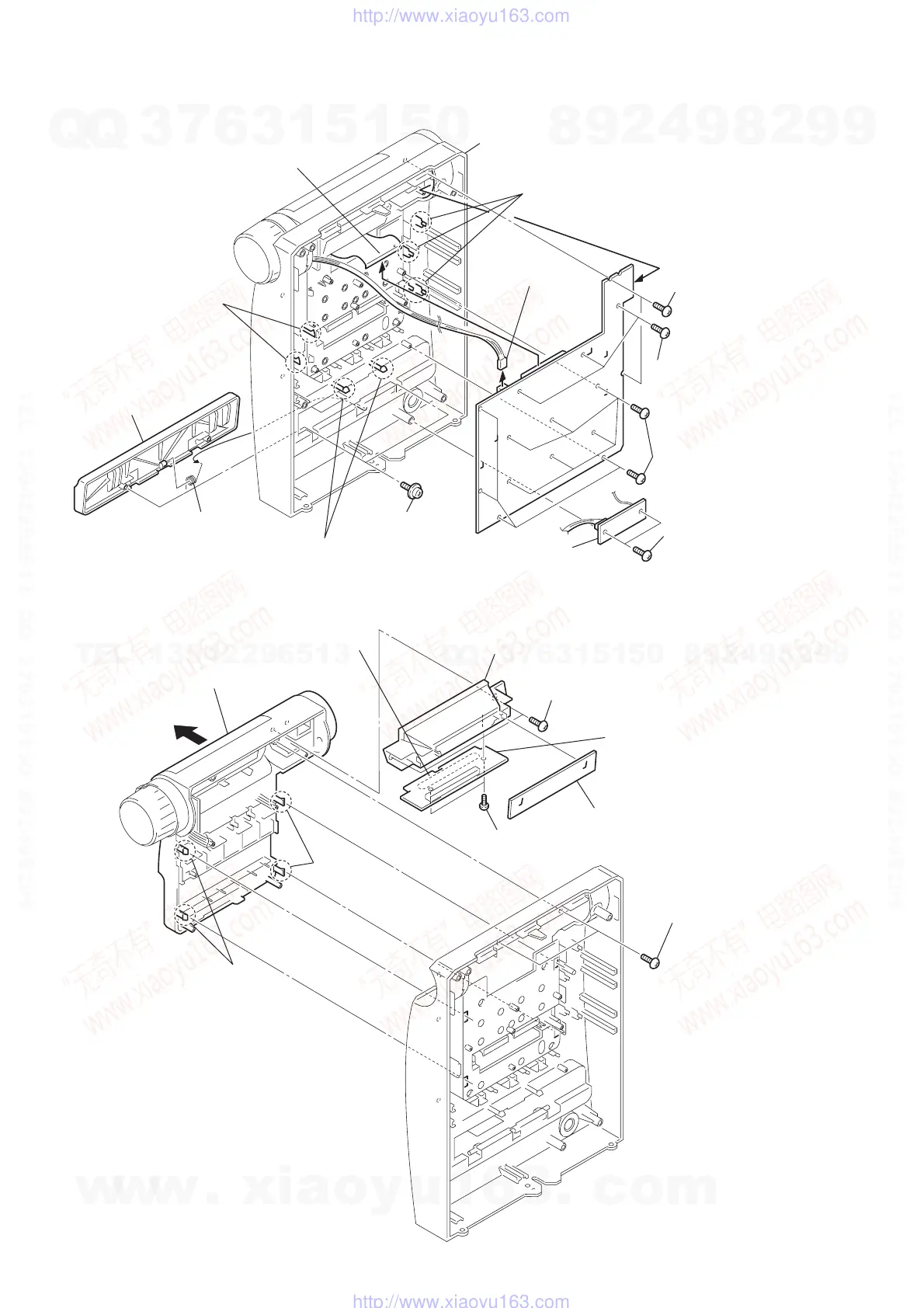

3-5. H/P Board, PANEL Board
3-6. LCD Board, BACK LIGHT Board
2 two claws
4 sub panel
3 two claws
5 two screws
(
+BVTP 2.6 × 8 )
7 two screws
(
+BVTP 2.6 × 8 )
1 two screws
(
+BVTP 2.6 × 8
)
6 Remove solderings.
0 liquid crystal display panel
9 BACK LIGHT board
8 LCD board
1 two screws
(
+BVTP 2.6 × 8 )
8 ten screws
(
+BVTP 2.6 × 8 )
7 three screws
(
+BVTP 2.6 × 8 )
6 two screws
(
+BVTP 2.6 × 8)
2 H/P board
front panel assy
3 two screws
(
+PTPWH 2.6 × 5 )
5 s pring (CD)
4 CD Lid
9 three claws
qa two claws
0 two claws
qs PANEL board
(Remove in the direction
of the arrow.)
qd connector
(CN611)
qf flat cable (39 core)
(CN607)
