41
HCD-TB10
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
• The mechanical parts with no reference number
in the exploded views are not supplied.
•Abbreviation
MX : Mexican model
KR : Korea model
TW : Taiwan model.

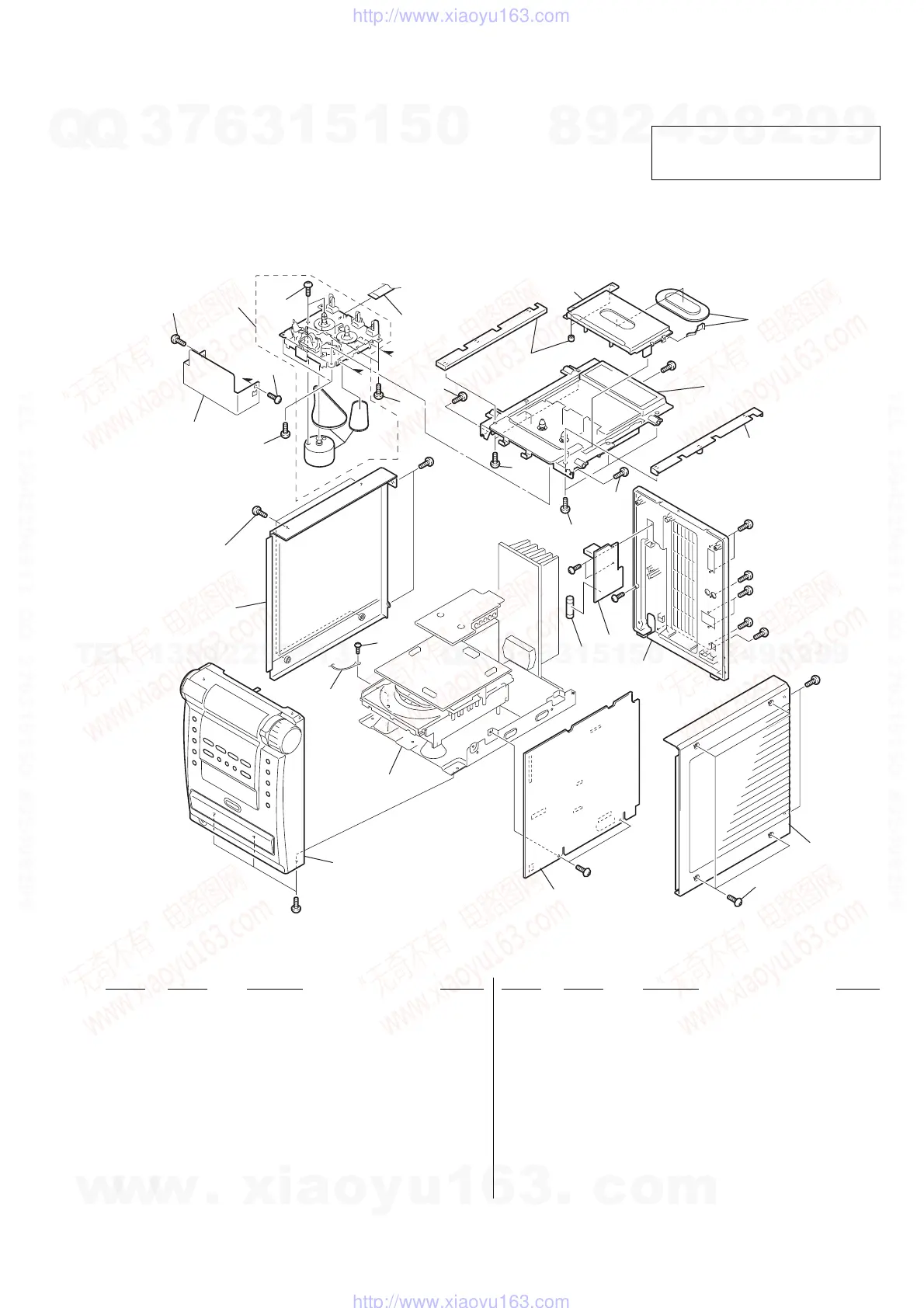

7-1. Side Panel, Back Panel Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1
2
1
7
8
3
4
5
9
6
#1
#1
#1
#1
#1
#2
#2
#2
#2
#2
#2
F901
#2
front panel section
chassis section
not
supplied
a
a
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
10
10
10
12
10
10
10
11
11
10
1 3-363-099-11 SCREW (CASE 3 TP2)
2 4-238-352-01 PANEL (L), SIDE
3 4-238-353-01 PANEL (R), SIDE
4 4-238-351-01 PANEL, TOP (AEP,UK,KR)
4 4-238-351-11 PANEL, TOP (E,MX,TW)
5 1-796-351-21 MECHANISM, SIGNAL CASSETTE
6 4-237-518-11 LID, TC
7 1-683-957-11 SUB TRANSFORMER BOARD
8 A-4729-701-A MAIN BOARD,COMPLETE (AEP,UK)
8 A-4730-327-A MAIN BOARD,COMPLETE (E,MX,KR)
8 A-4730-329-A MAIN BOARD,COMPLETE (TW)
9 1-575-783-21 WIRE (FLAT TYPE) (9 CORE)
10 4-951-620-01 SCREW (2.6X8), +BVTP
11 4-933-134-41 SCREW (+PTPWH 2.6X5)
12 4-238-355-01 PANEL, BACK (AEP,UK)
12 4-238-355-11 PANEL, BACK (E,TW)
12 4-238-355-21 PANEL, BACK (MX)
12 4-238-355-31 PANEL, BACK (KR)
0F901 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) T4A/250V (E,TW)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#2 7-685-872-09 SCREW +BVTT 3X8 (S)
SECTION 7
EXPLODED VIEWS
