Sony HCD-TB10 - VOL Board Removal; Sub Transformer & Back Panel Removal

11
HCD-TB10
sub panel
1 knob (vol)
2 nut
3 flange
4 spring
spring
flange
5 shuttle
6 VOL boar
d
Note: daring reassembling
when flange.

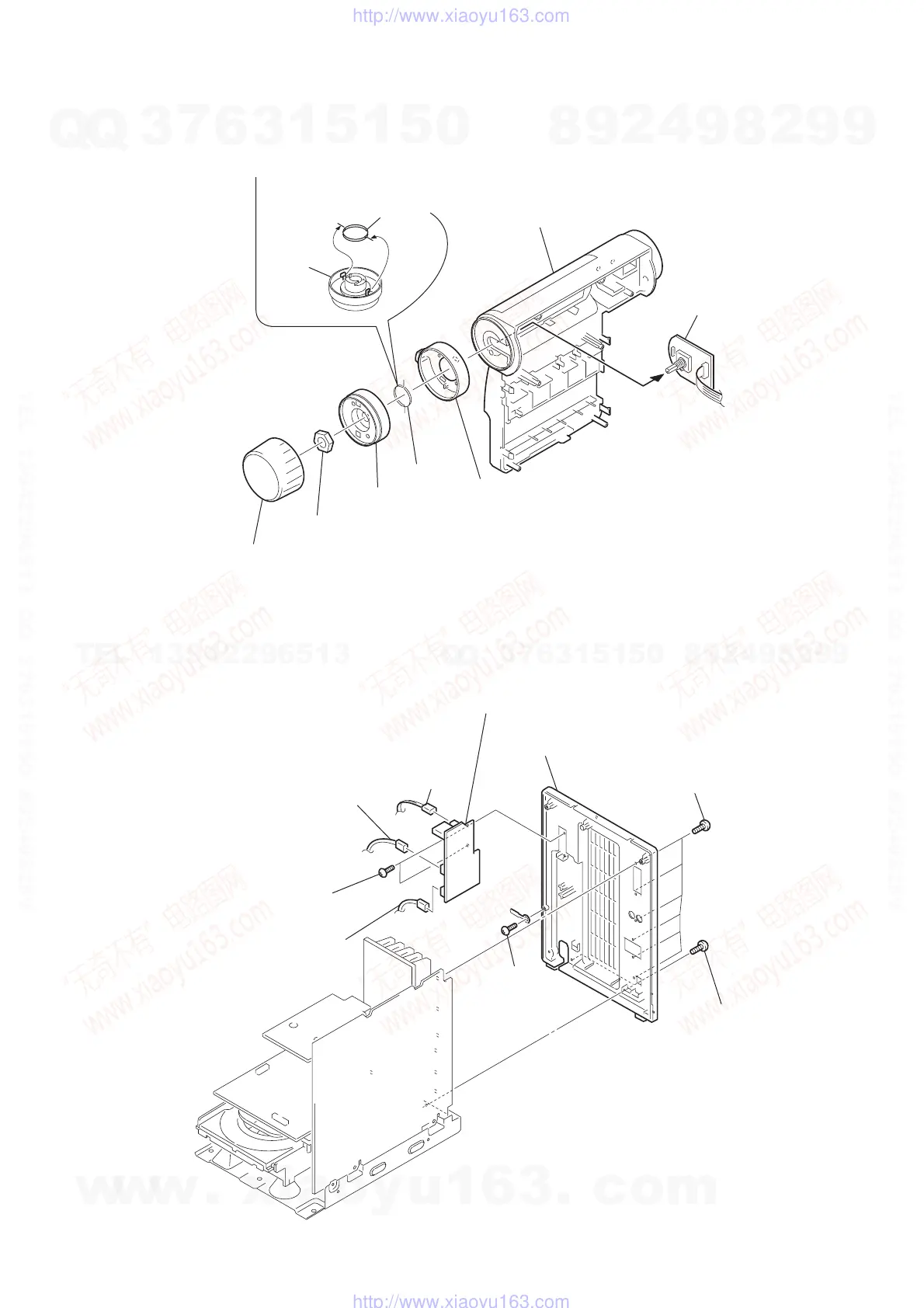

3-7. VOL Board
3-8. SUB TRANSFORMER Board, Back Panel
4 six screws
(
+BVTT 3 × 8 )
5 two screws
(
+BVTT 3 × 10 )
6 screw
(
+BVTT 3 × 8 )
9 back panel
7 two screws
(
+BVTT 3 × 8 )
8 SUB TRANSFORMER board
1 connector
(CN903)
3 connector
(CN905)
2 connector
(CN907)
