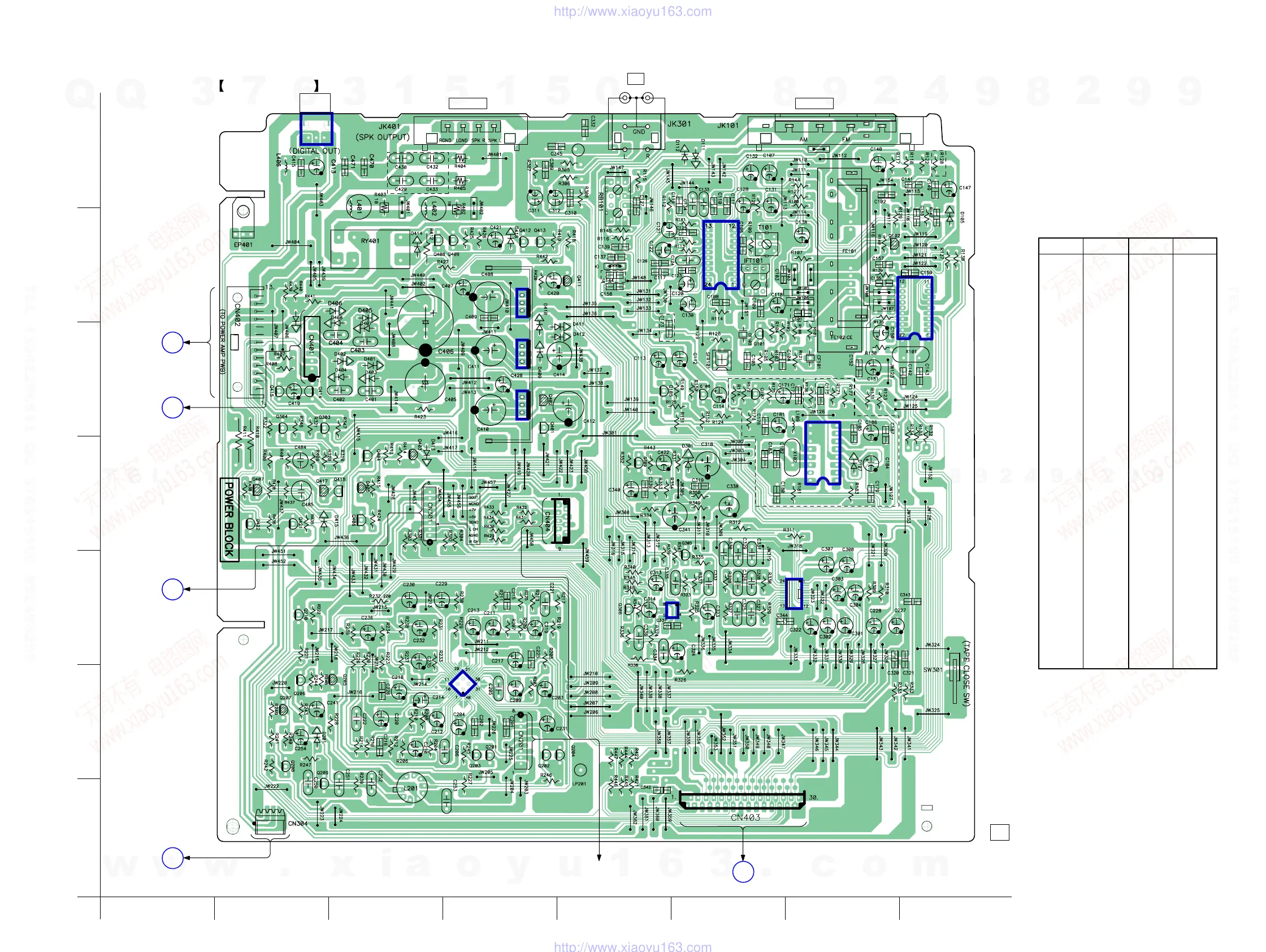

6-3. Printed Wiring Board – MAIN Section –
• See page 19 for Circuit Boards Location.
12
A
B
C
D
E
F
G
345678
IC201
IC101
IC103
IC102
IC301
IC302
IC401
IC402
IC403
PH401
MAIN BOARD
1-683-954-
11
MD
LR
SPEAKER ANTENNA
DIGITAL
OUT
EE
EE
E
3
1
3
1
3
1
E
E
E
E
EE
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
EE
E
E
E
E
TO
PANEL BOARD
CN603
(Page 29)
C
TO
CASSETTE DECK MECHANISM
TO
P-AMP
BOARD
CN501
(Page 32)
E
TO
POWER
TRANSFORMER
BOARD
CN906
(Page 33)
F
TO
CDM
BOARD
CN734
(Page 35)
B
TO
H/P
BOARD
CN303
(Page 30)
D
E
E
D416
AEP,UK
AEP,UK
AEP,UK
AEP,UK
AEP,UK
E,MX,
TW,KR
Ref. No. Location
D105 B-8
D107 D-7
D111 A-6
D112 A-6
D201 F-2
D301 D-6
D401 C-3
D402 C-3
D403 C-3
D404 C-3
D405 B-3
D406 B-3
D407 C-3
D408 B-3
D409 C-4
D410 B-4
D411 C-4
D412 C-4
D413 D-3
D414 B-3
D415 D-2
D416 C-2
D418 B-4
IC101 B-6
IC102 B-8
IC103 D-7
IC201 F-4
IC301 E-7
IC302 E-6
IC401 B-4
IC402 C-4
IC403 C-4
• Semiconductor
Location
Ref. No. Location
Q101 C-6
Q102 B-7
Q105 C-5
Q106 C-6
Q107 C-6
Q201 F-4
Q202 F-4
Q203 F-4
Q204 F-5
Q205 F-3
Q206 F-2
Q207 F-2
Q208 F-2
Q209 G-2
Q210 E-2
Q303 C-2
Q304 C-2
Q305 E-6
Q306 E-5
Q309 D-5
Q401 C-4
Q402 C-4
Q403 D-3
Q404 D-3
Q405 D-3
Q406 D-3
Q407 D-2
Q408 B-3
Q409 B-4
Q411 B-5
Q412 B-4
Q413 B-4
Q414 C-2
Q415 C-2
Q417 D-2
Q418 D-3
Q421 D-2
Q422 D-2
