44
HCD-TB10

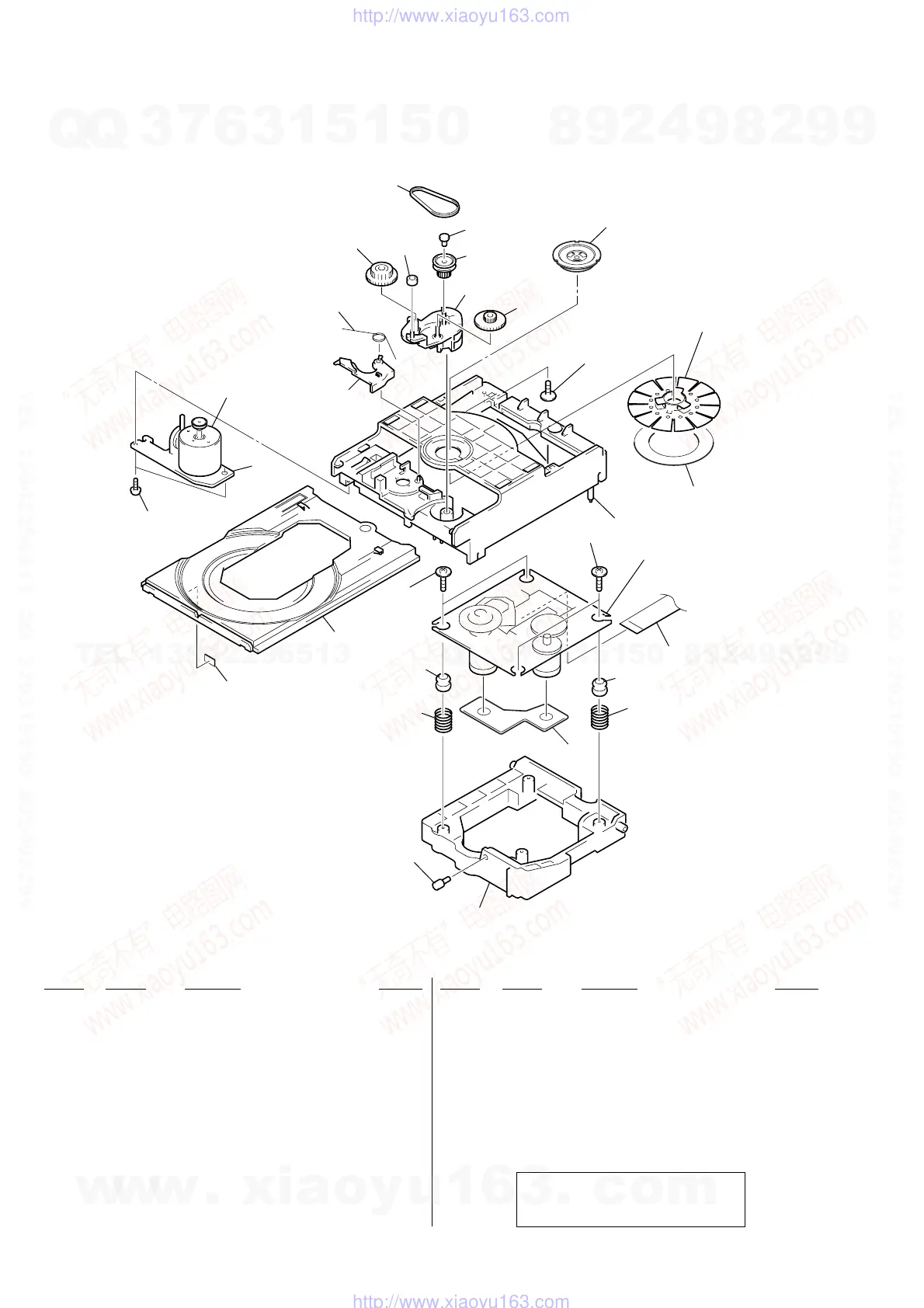

7-4. CD Mechanism Deck Section (CDM55C-K6A)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
501 1-683-960-11 MOTOR (TRAY) BOARD
502 4-224-894-11 TRAY(CDM55D)
503 4-220-229-01 LEVER (SW)
504 4-220-239-01 SPRING, TORSION
505 4-220-237-01 GEAR (A)
506 4-221-815-11 ROLLER
507 4-221-816-11 BELT (CDM55)
508 4-220-233-01 CAM (CDM55)
509 4-220-234-01 PULLEY (LDG)
510 4-227-598-01 SPACER (55)
511 4-220-238-01 GEAR (B)
512 1-452-925-21 MAGNET ASSY
not supplied
not supplied
not supplie
not supplied
501
518
502
503
504
511
512
513
505
508
506
509
507
510
514
514
521
514
515
520
516
516
519
517
515
M103
513 4-227-236-01 CHASSIS
514 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
515 4-227-679-01 INSULATOR (213)
516 4-229-806-01 SPRING (213), COMPRESSION
517 1-823-059-11 WIRE (FLAT TYPE) (16 CORE)
518 4-218-253-31 SCREW (M2.6), +BTTP
519 4-925-315-31 DAMPER
520 1-684-562-11 MOTOR BOARD
0521 8-820-020-02 OPTICAL PICK-UP BLOCK KSM-213DCP
M103 A-4672-984-A MOTOR (LD) ASSY
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
