43
HCD-TB10
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

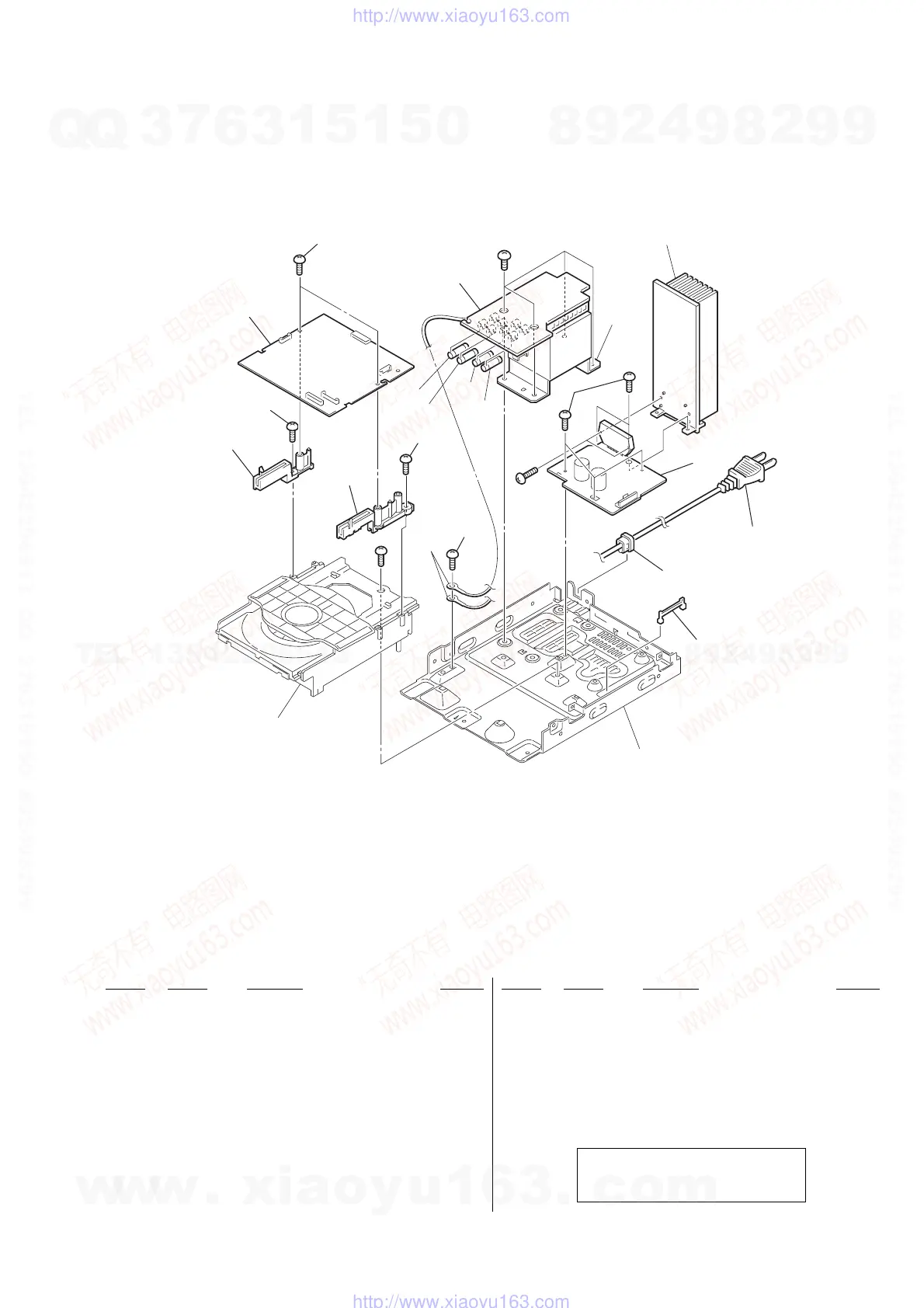

7-3. Chassis Section
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
101 4-238-354-01 HOLDER, PWB
102 A-4729-714-A CDM BOARD, COMPLETE
103 1-683-958-11 POWER TRANSFORMER BOARD
104 A-4729-709-A P-AMP BOARD, COMPLETE
* 105 3-703-244-00 BUSHING (2104), CORD (KR)
105 3-703-244-11 BUSHING (2104), CORD (AEP,UK,E,MX,TW)
0106 1-769-079-21 CORD, POWER (KR)
0106 1-777-071-82 CORD, POWER (AEP,UK,E,TW)
0106 1-791-901-21 CORD, POWER (MX)
107 4-951-620-01 SCREW (2.6X8), +BVTP
* 108 4-988-533-01 HOLDER, PWB
0F904 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3A/250V
0F905 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3A/250V
0F906 1-533-470-11 FUSE, GLASS TUBE (DIA. 5) T3.15A/250V
0F907 1-533-468-11 FUSE, GLASS TUBE (DIA. 5) T2A/250V
0T901 1-437-619-11 TRANSFORMER, POWER (AEP,UK)
0T901 1-437-721-11 TRANSFORMER, POWER (E,MX,TW,KR)
#2 7-685-872-09 SCREW +BVTT3X8 (S)
#3 7-685-880-09 SCREW +BVTT4X6 (S)
#4 7-685-650-79 SCREW +BVTP3X16 TYPE2 IT-3
