Sony HCD-TB10 - Side Panel Disassembly; Top Panel Removal

8
HCD-TB10

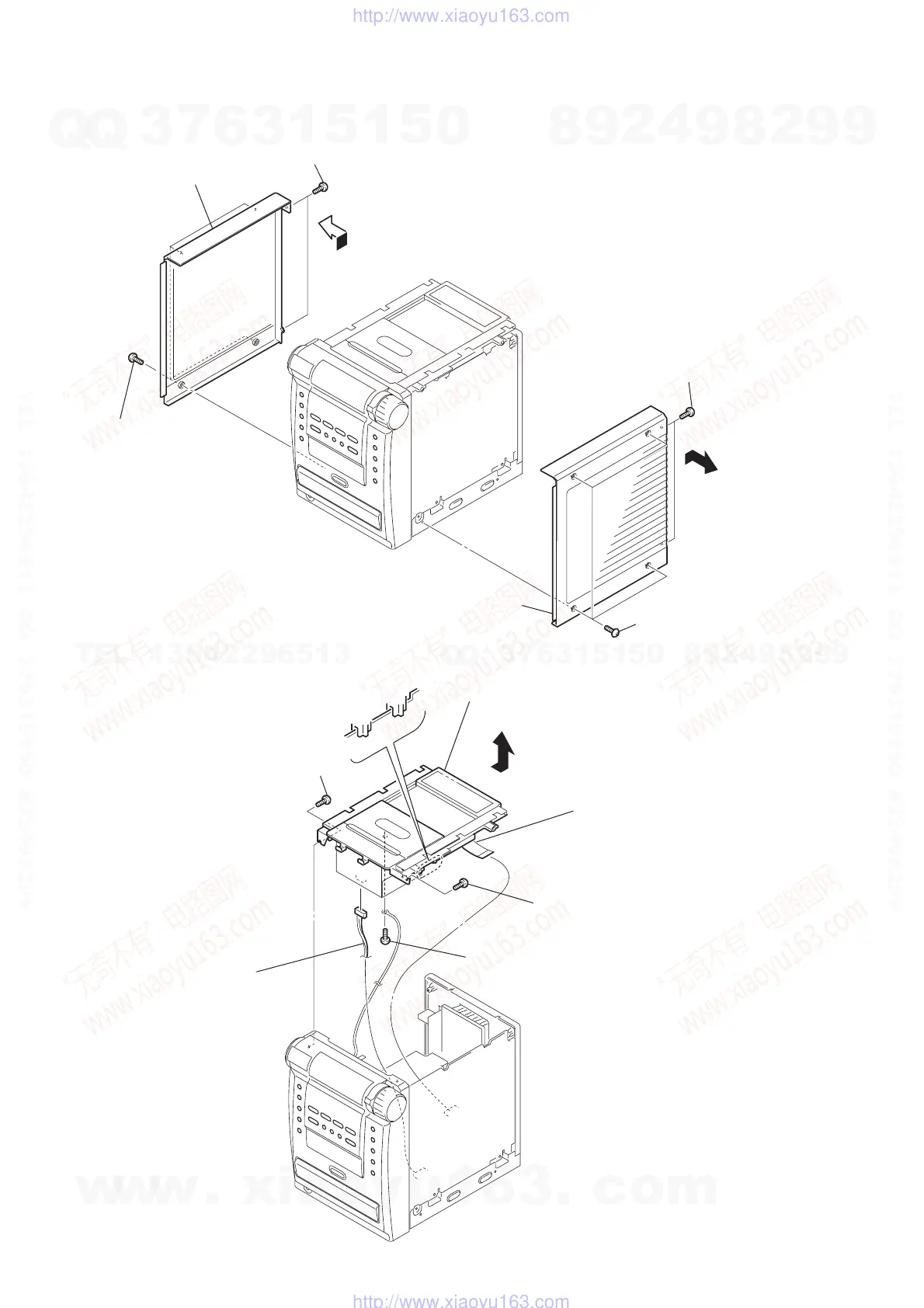

3-1. Side Panel
3-2. Top Panel
Note: Attach it so that it
pressed down the
MAIN board.
3 top panel
(Remove in the direction
of the arrow.)
2 s crew
(
+BVTP 2.6 × 8 )
1 s crew
(
+BVTP 2.6 × 8 )
4 s crew
(
+BVTP 2.6 × 8 )
6 flat cable (9 core
)
(CN404)
5 connector
2 four screws
(
CASE 3 TP2)
5 four screws
(
CASE 3 TP2)
1 two screws
(
+BVTP 3 × 10
)
4 two screws
(
+BVTP 3 × 10 )
3 side panel (R)
(Remove in the direction
of the arrow.)
6 side panel (L)
(Remove in the direction
of the arrow.)
