Sony HCD-VX33 - Printed Wiring Board Main Section

HCD-VX33
3030

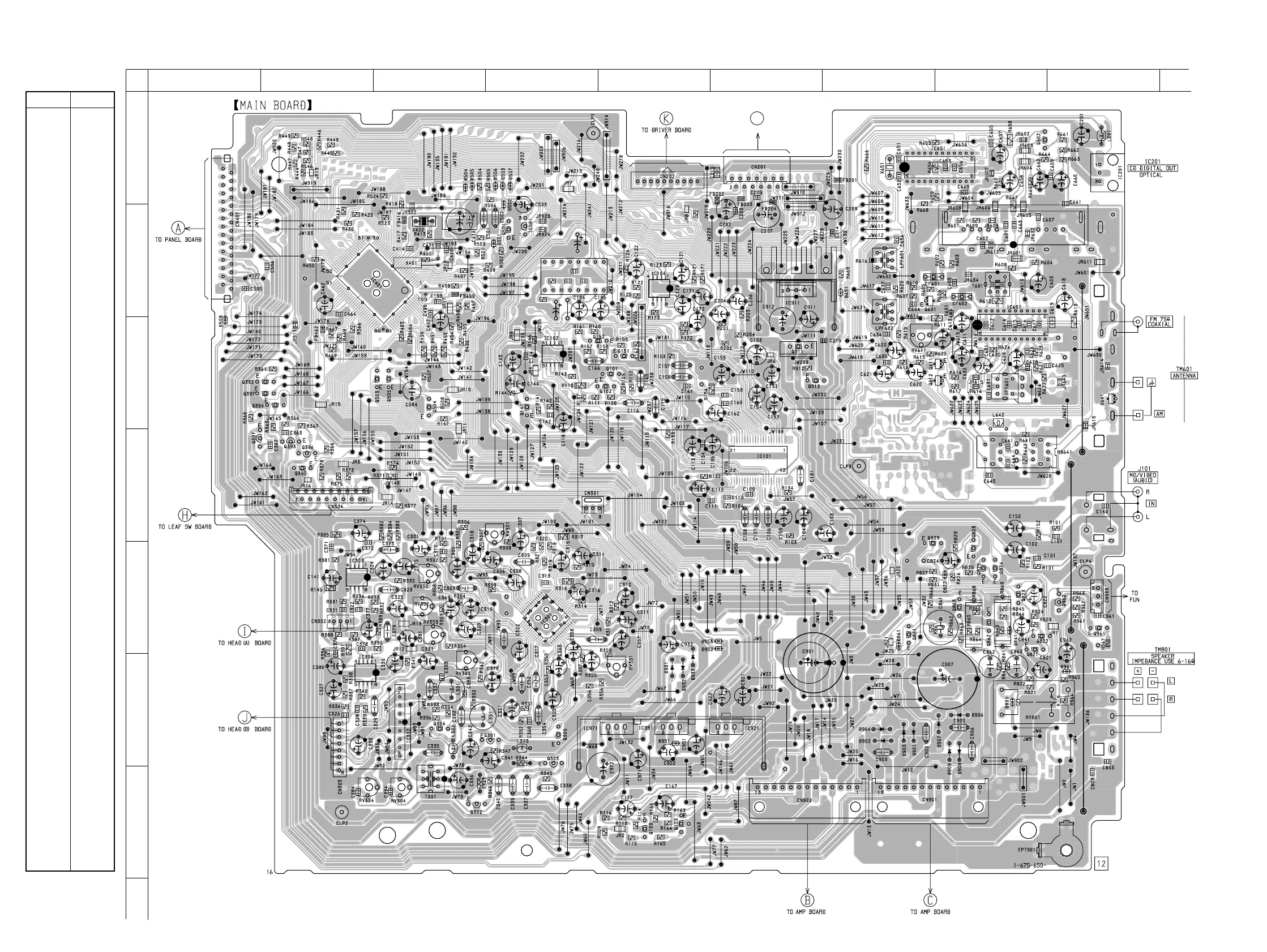

7-5. PRINTED WIRING BOARD MAIN SECTION
• See page page 23 for Circuit Boards Location.
Ref. No. Location
D501 B-4
D502 A-4
D503 A-4
D504 A-3
D505 A-3
D506 A-4
D508 C-1
D511 B-1
D601 B-8
D641 C-9
D651 B-7
D822 E-8
D841 E-8
D861 E-7
D901 F-7
D902 F-7
D903 F-7
D904 F-7
D906 F-8
D907 F-8
D908 F-8
D909 F-8
D931 F-5
D932 F-5
D933 F-5
D951 F-5
D952 E-6
D953 E-6
D961 F-9
IC101 D-6
IC102 C-4
IC103 B-4
IC104 B-5
IC201 A-9
IC301 E-4
IC302 F-3
IC303 E-2
IC304 F-3
IC401 B-3
IC501 B-4
IC601 C-8
IC651 A-8
IC911 B-6
IC921 F-6
IC951 F-5
IC971 F-4
Q101 D-6
Q102 C-5
Q103 G-5
Q141 C-4
Q301 F-4
Q302 G-4
Q304 F-3
Q391 D-2
Q392 C-2
Q393 D-2
Q394 C-2
Q395 D-2
Q396 D-2
Q397 C-1
Q504 C-3
Q601 B-7
Q611 C-7
Q612 C-7
Q821 E-8
Q822 E-8
Q824 D-8
Q825 D-8
Q828 D-8
Q861 E-7
• Semiconductor
13
12
FE601 : JE
FE602 : EXCEPT JE
R205
C189
R182
R181
C181
C182
C187
C188
IC103
TO VIDEO BOARD
D
12
A
B
C
D
E
F
G
3456789
(Page 40) (Page 42)
(Page 36)
(Page 38)
(Page 38)
(Page 38)
(Page 34)
(Page 34)
