Sony HCD-VX33 - Printed Wiring Board Video CD Section

HCD-VX33
4242

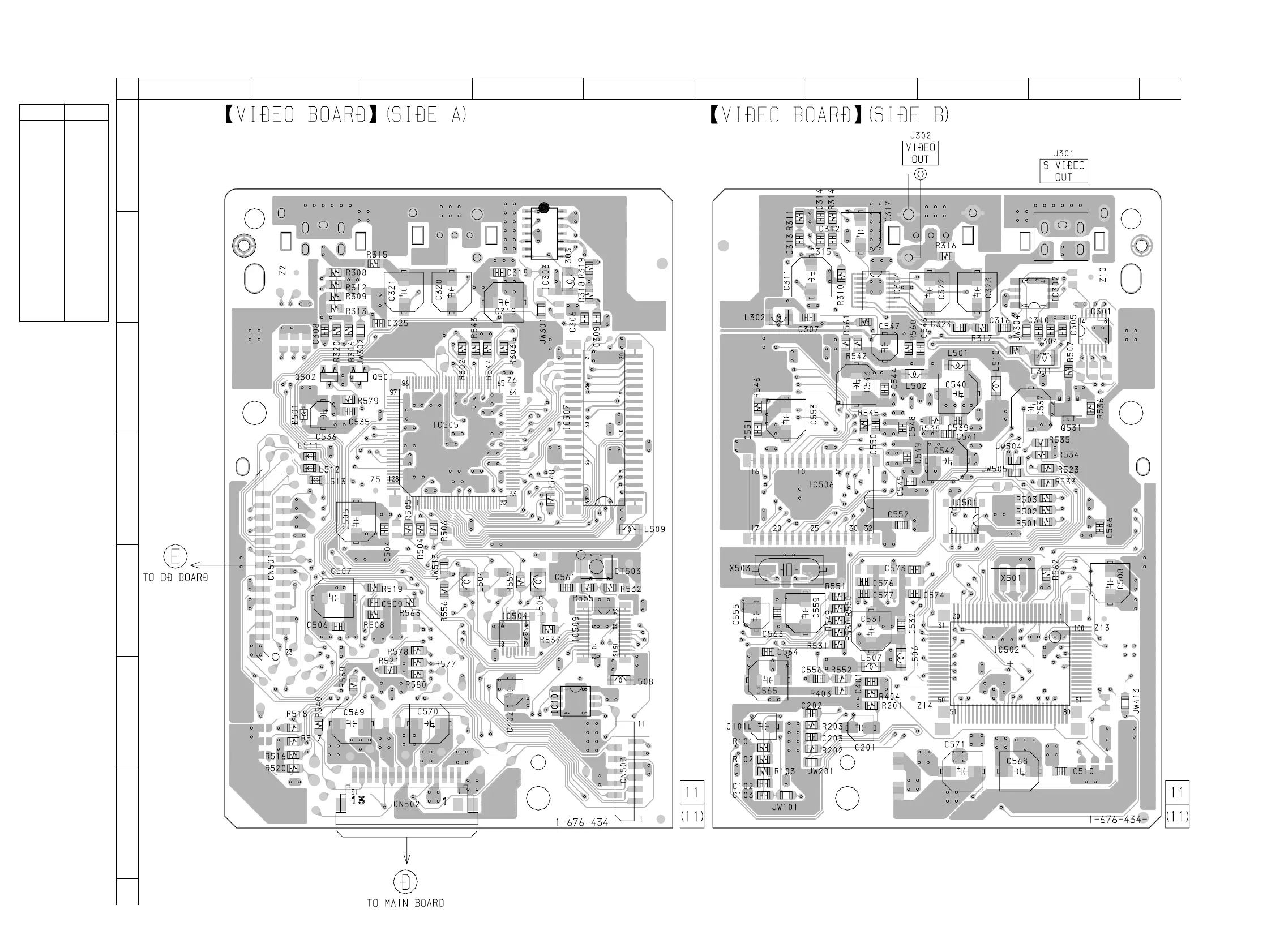

7-17. PRINTED WIRING BOARD VIDEO CD SECTION
• See page 23 for Circuit Boards Location.
16
12
A
B
C
D
E
F
G
345678910
(Page 28)
(Page 30)
Ref. No. Location
D501 C-2
IC101 F-4
IC301 B-9
IC302 B-9
IC303 B-4
IC304 B-7
IC501 D-8
IC502 E-9
IC504 E-4
IC505 C-3
IC506 D-7
IC507 C-4
IC509 E-5
Q501 C-3
Q502 C-2
Q531 C-9
• Semiconductor
Location
