Sony HCD-VX33 - Printed Wiring Board Power AMP Section

HCD-VX33
3434

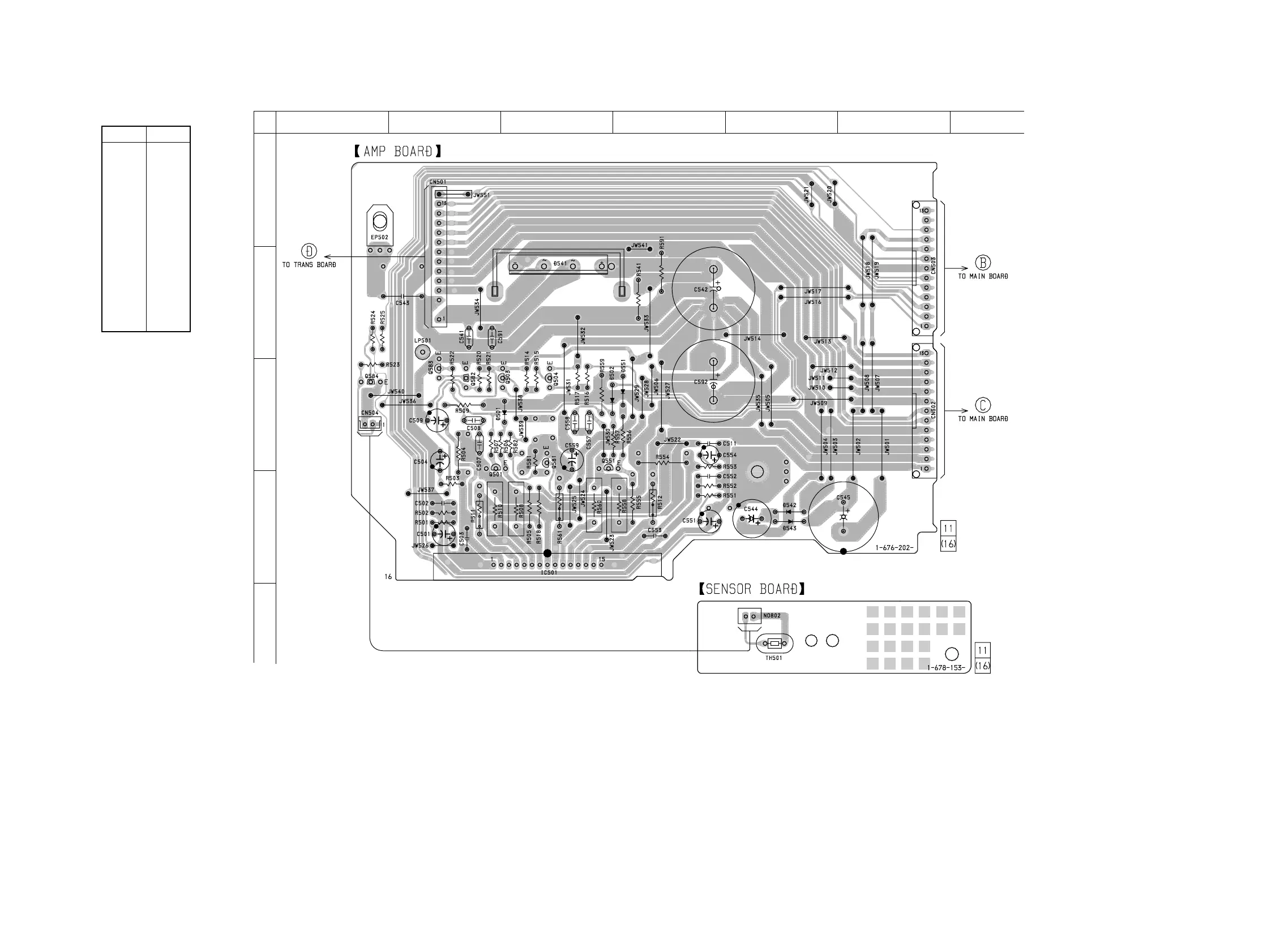

7-9. PRINTED WIRING BOARD POWER AMP SECTION
• See page page 23 for Circuit Boards Location.
(Page 45)
12
A
B
C
D
E
34567
(Page 30)
(Page 30 )
Ref. No. Location
D501 C-3
D502 C-3
D541 B-3
D542 D-5
D543 D-5
D551 C-4
IC501 D-3
Q501 C-3
Q503 C-3
Q504 C-3
Q551 C-4
Q581 C-3
Q582 C-2
Q583 C-2
Q584 C-1
• Semiconductor
Location
