Sony HCD-VX33 - Printed Wiring Board Panel Section

HCD-VX33
3636

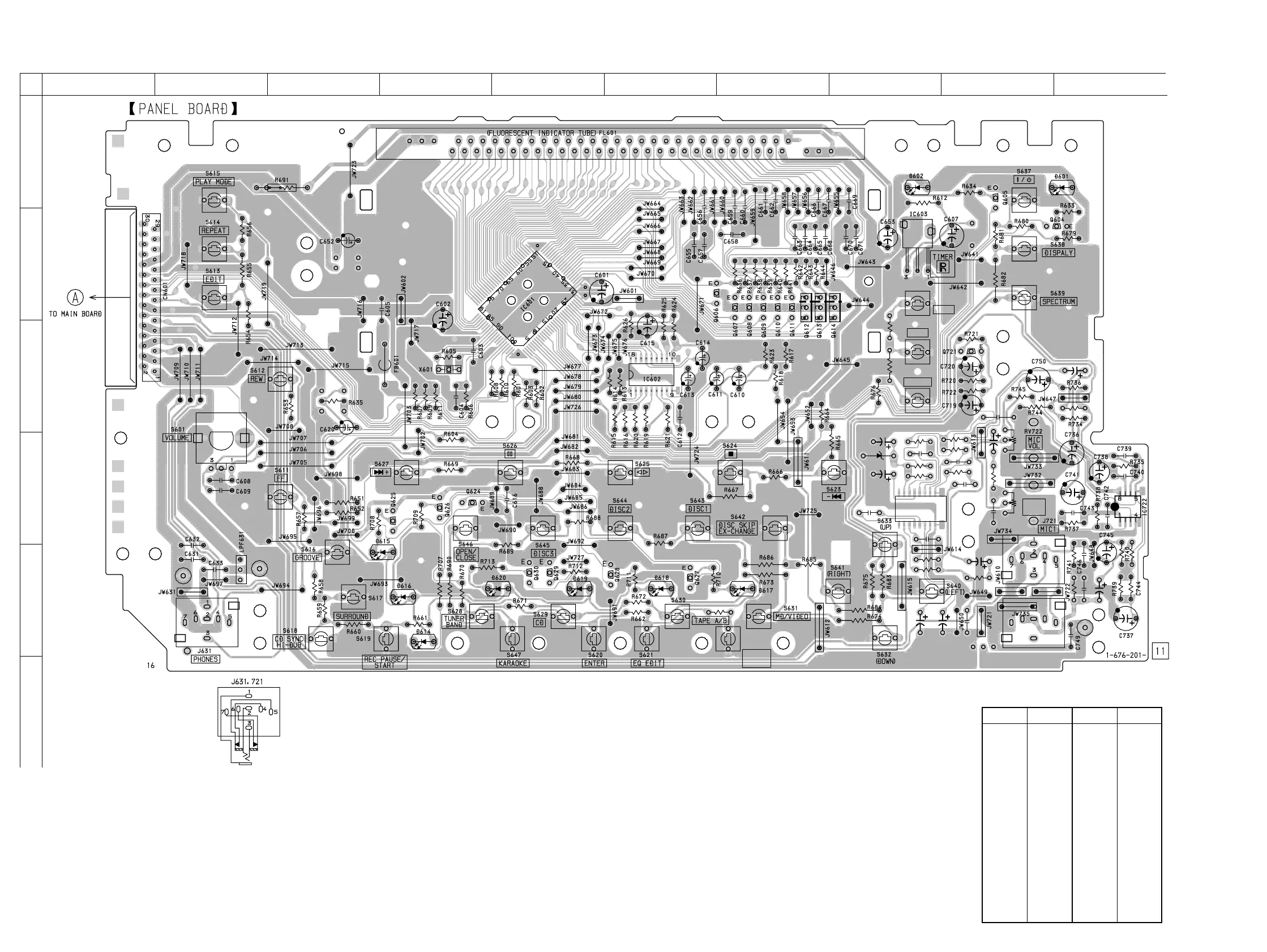

7-11. PRINTED WIRING BOARD PANEL SECTION
• See page page 23 for Circuit Boards Location.
Ref. No. Location
• Semiconductor Location
Ref. No. Location
D601 B-10
D602 A-8
D614 E-4
D615 E-4
D616 E-4
D617 E-7
D618 E-6
D619 E-5
D620 E-5
D721 D-8
IC601 B-5
IC602 C-6
IC603 B-8
IC721 D-8
IC722 D-10
Q604 B-10
Q605 A-9
Q606 B-6
Q607 B-7
Q608 B-7
Q609 B-7
Q610 B-7
Q611 B-7
Q612 B-7
Q613 B-7
Q614 B-8
Q624 D-4
Q625 D-4
Q626 D-4
Q627 E-6
Q628 E-6
Q629 E-5
Q630 E-5
Q721 C-9
R742
J722
R743
C748
C747
C722
C725 C726
R663
EFFECT
S622
1
2
3
5
46
7
R723
R725
R724
C723
C721
IC721
C724
C735
R733
R728
R677 R678
C730
RV721
ECHO
LEVEL
C729
C727
C732
R732
R731
R727
R730
R729
R726
C728
C731
19
1018
C734
C733
D721
S634
RETURN
S635
PREV
S636
NEXT
12
A
B
C
D
E
F
345678910
(Page 30)
