Sony HCD-VX33 - 3 Disassemby

7
SECTION 3
DISASSEMBY
Note : Follow the disassembly procedure in the numerical order given.

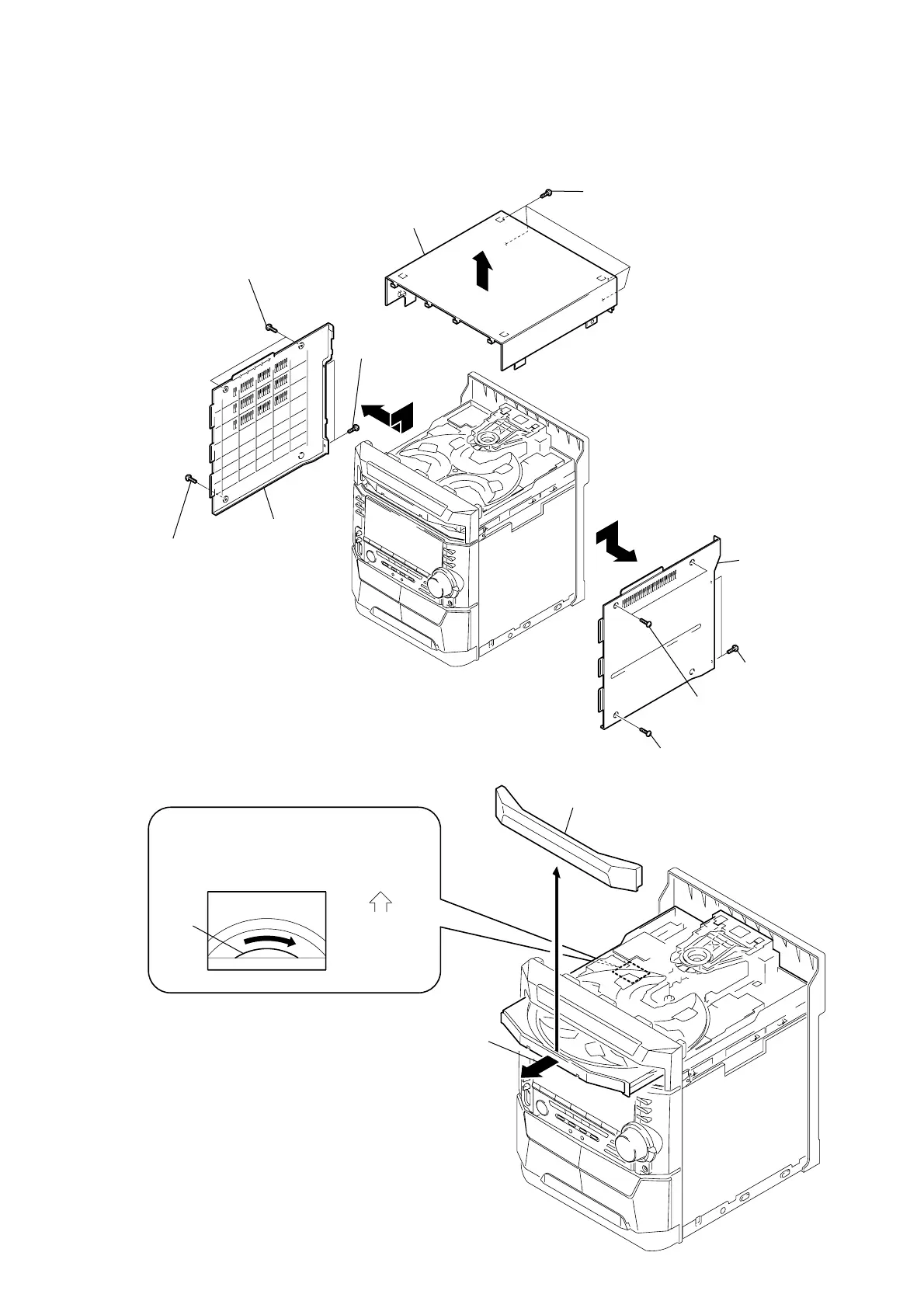

3-1. UPPER CASE (TOP)
3-2. LOADING PANEL ASSY
Case (R)
4
q;
8
Upper case (Top)
Case (L)
5 Two screws (Case)
7 Two screws
(+BVTP 3 × 10)
3 Two screw
s
1 Two screws (Case)
9 Four screws (+BVTP 3 × 10)
6 Screw (Case)
2 Screw (Case)
2 Pull-out the disc tray.
1 Turn the pulley to the direction of arrow.
pulley
Loading panel assy
Front panel side
CD mechanism deck (CDM58)
3
