Sony HCD-VX33 - Tape Mechanism Section (TCM-230 PWR11) (2;2)

58

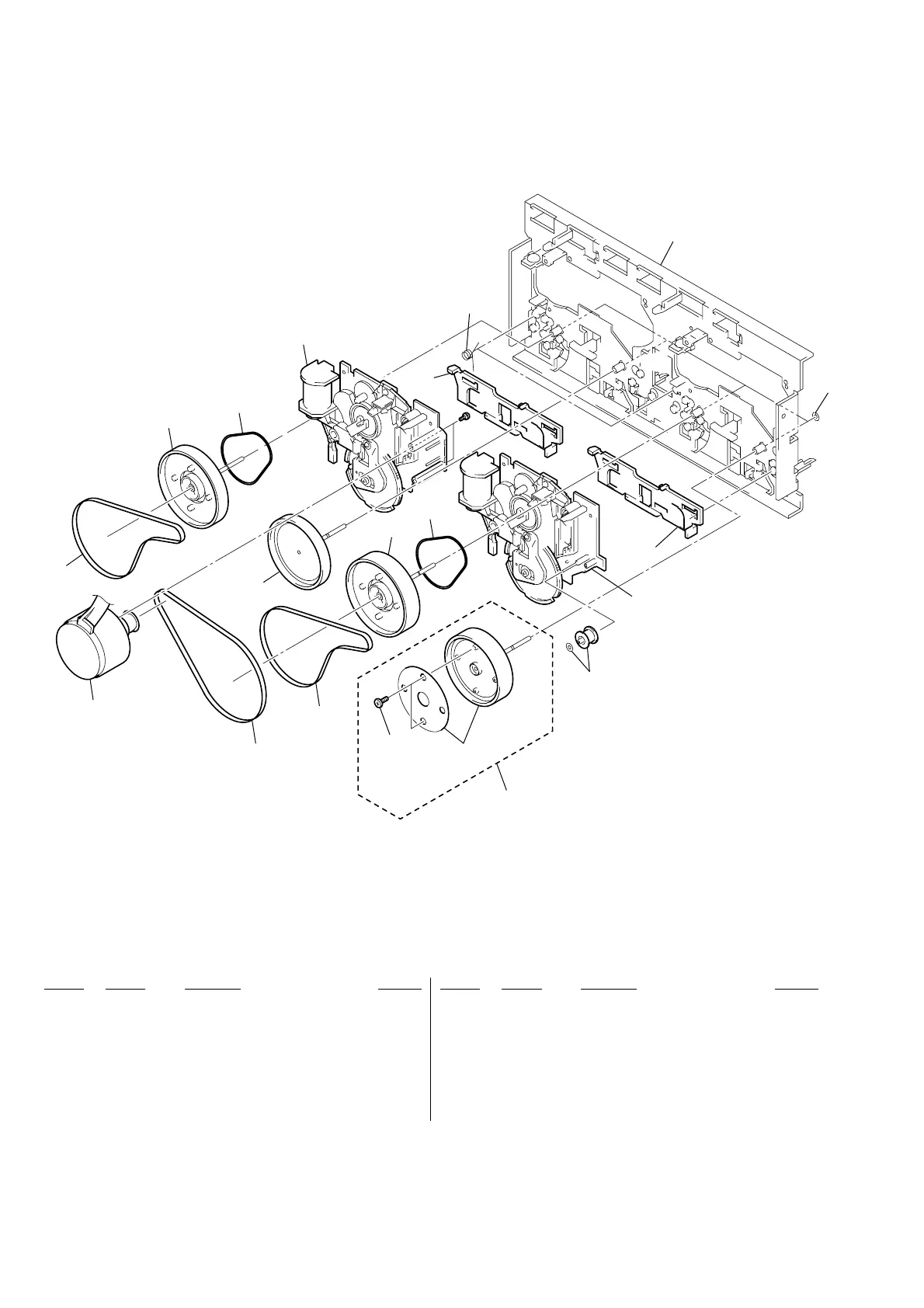

8-5. TAPE MECHANISM DECK SECTION (TCM-230PWR11) (2/2)
201
201
202
205
203
206
212
204
207
207
208
209
210
210
211
213
M1
not supplied
not supplied
#1
not supplied
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
201 3-041-946-01 BELT (CAPSTAN B)
202 4-227-239-01 BELT (CAPSTAN C)
203 X-3378-249-1 FLYWHEEL (B-FWD) ASSY
204 X-3378-250-1 FLYWHEEL (B-REV) ASSY
205 X-3378-247-1 FLYWHEEL (A-FWD) ASSY
206 X-3378-248-1 FLYWHEEL (A-REV) ASSY
207 3-041-947-01 BELT (FR)
208 A-2004-753-A BLOCK (B) ASSY, MECHANICAL
209 A-2004-752-A BLOCK (A) ASSY, MECHANICAL
210 3-016-566-01 SLIDER, REVERSE
211 4-228-450-01 SPRING(REVERSE SLIDER),TORSION
212 3-372-761-01 SCREW (M1.7), TAPPING
213 3-019-208-01 WASHER, STOPPER
M1 X-3378-246-1 MOTOR ASSY
