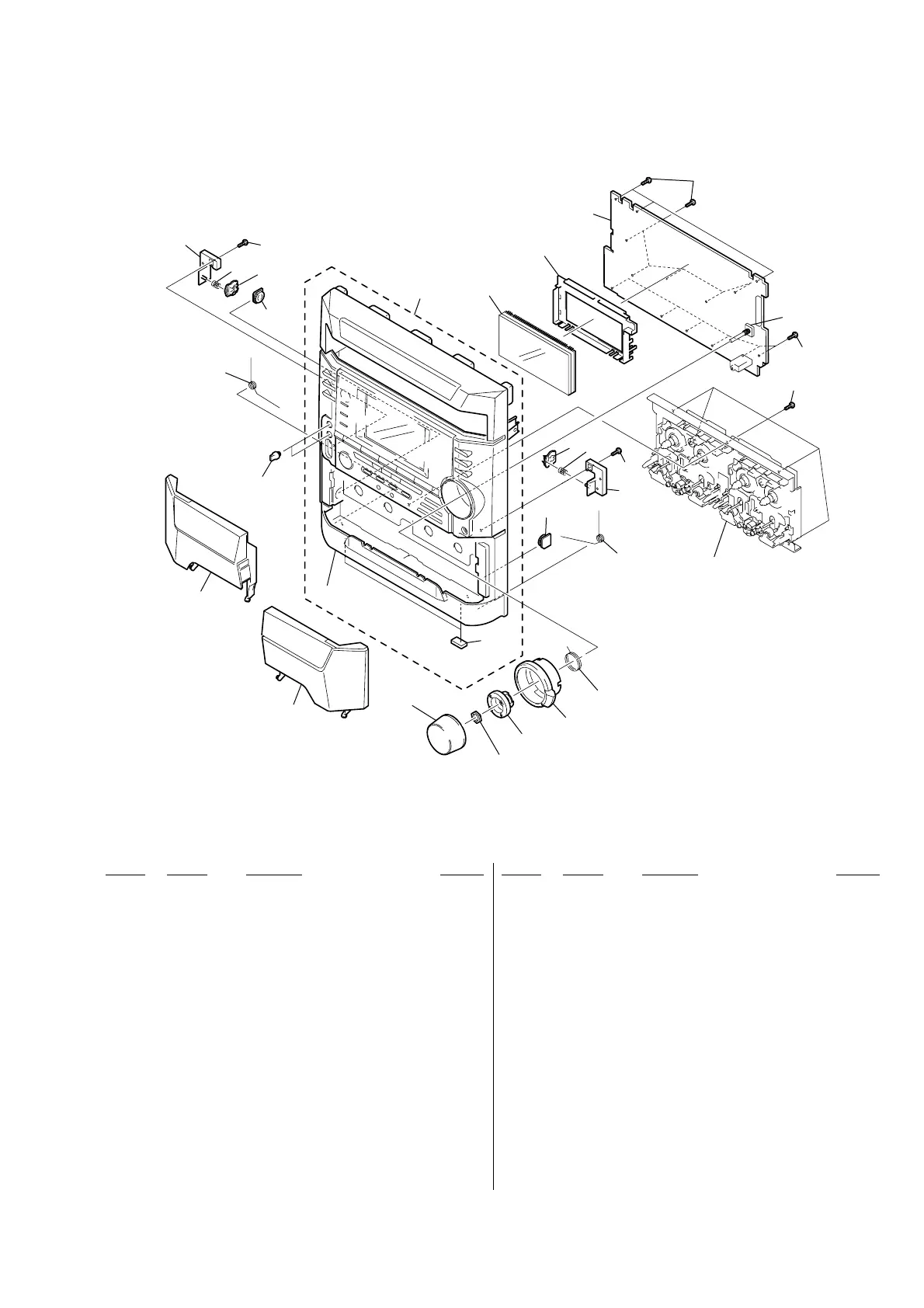

8-2. PANEL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51
52
53
54
55
56
69
58
57
70
59
59
63
64
65
66
* 67
* 67
67
67
67
61
60
60
62
* For service only (Be sure to refer to "Servicie note" on page 4.)
TAPE mechanism deck
FL601
68
not supplied
supplied with S601
S601
51 X-4952-391-1 LID(L) ASSY, CASSETTE (IA)
51 X-4952-958-1 LID(L) ASSY, CASSETTE
(EA,HK,MY,SP,TH,TW,JE)
51 X-4952-888-1 LID(L) ASSY, CASSETTE (E)
52 X-4952-392-1 LID(R) ASSY, CASSETTE (IA)
52 X-4952-959-1 LID(R) ASSY, CASSETTE
(EA,HK,MY,SP,TH,TW,JE)
52 X-4952-889-1 LID(R) ASSY, CASSETTE (E)
53 4-224-554-01 KNOB(VOLUME)(IA)
53 4-224-554-21 KNOB(VOLUME)(EXCEPT IA)
54 4-225-531-01 BRACKET (RING)
55 4-224-800-01 SPRING (JOG), TORSION
56 4-224-556-01 RING(VOL) (IA)
56 4-224-556-21 RING(VOL) (EXCEPT IA)
57 X-4952-887-1 PANEL ASSY, FRONT
58 4-224-562-01 BRACKET (HEART CAM L)
59 4-224-803-01 SPRING (PUSH),COMPRESSION COIL
60 4-224-104-11 DAMPER (EXCEPT IA)
60 4-224-104-21 DAMPER (IA)
61 4-224-560-01 CAM(L), HEART
62 4-224-559-01 CAM(R), HEART
63 4-224-561-01 BRACKET (HEART CAM R)
64 4-224-801-01 SPRING (B), TORSION
65 4-224-584-11 HOLDER (FL)
66 A-4428-035-A PANEL BOARD, COMPLETE
(E,EA,HK,MY,SP,TW,JE)
66 A-4428-539-A PANEL BOARD, COMPLETE (IA)
66 A-4428-607-A PANEL BOARD, COMPLETE (TH)
67 4-951-620-01 SCREW (2.6X8), +BVTP
68 4-224-578-01 KNOB(MIC) (EXCEPT IA)
68 4-224-578-11 KNOB(MIC) (IA)
69 4-224-802-01 SPRING (A), TORSION
70 4-225-252-01 CUSHION (FOOT)
FL601 1-517-928-11 INDICATOR TUBE, FLUORESCENT
