HCD-VX33
3838

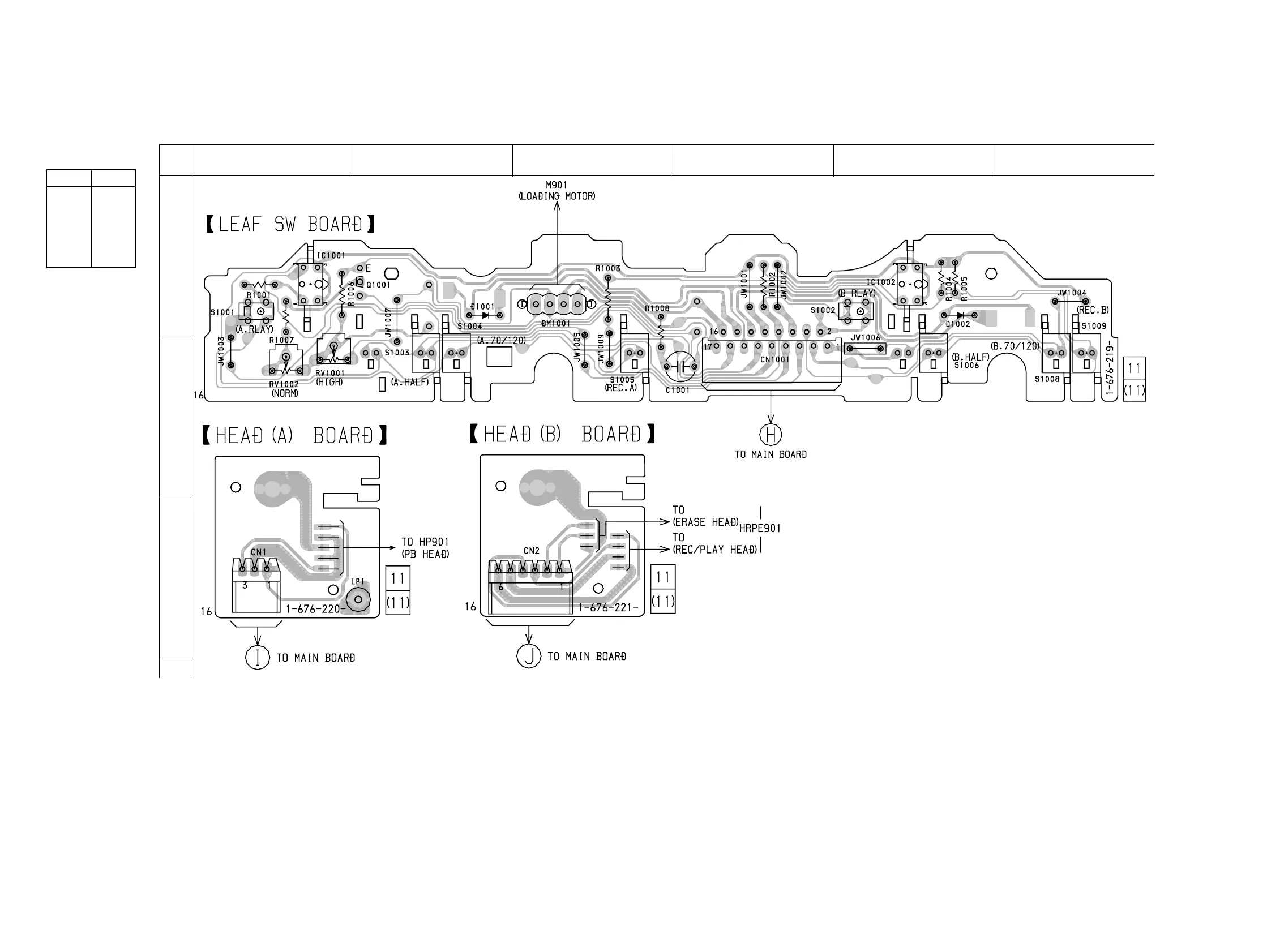

7-13. PRINTED WIRING BOARD LEAF SW SECTION
• See page 23 for Circuit Boards Location.
12
A
B
C
3456
(Page 30)
(Page 30)
(Page 30)
Ref. No. Location
D1001 A-2
D1002 A-5
IC1001 A-1
IC1002 A-5
Q1001 A-2
• Semiconductor
Location
