Sony HCD-VX33 - 8 Exploded Views; Main Section

SECTION 8
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
54
• Abbreviation
EA : Saudi Arabia model
MY : Malaysia model
SP : Singapore model
TH : Thai model
TW : Taiwan model
IA : Indonesia model
HK : Hong Kong model
JE : Tourist model

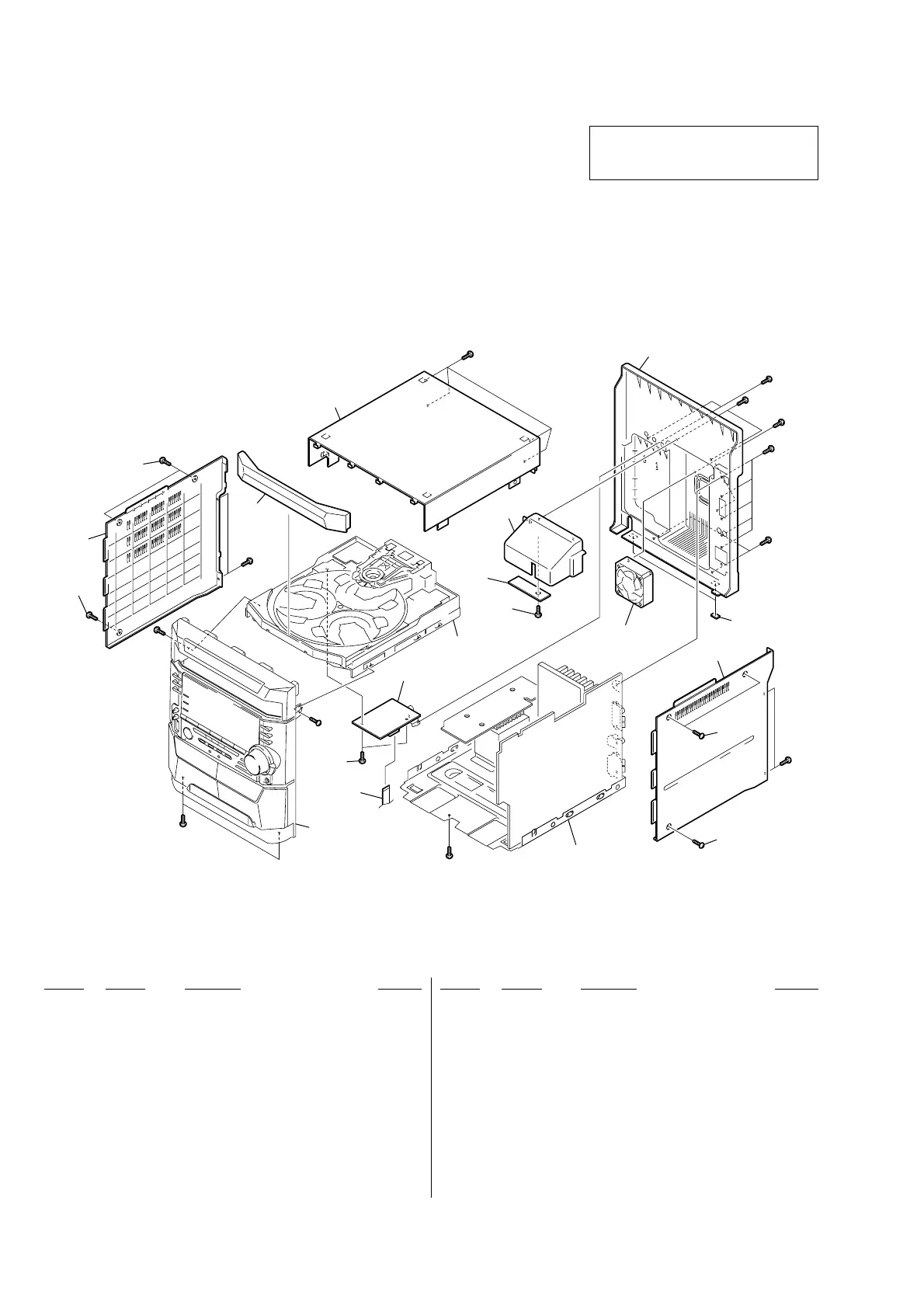

8-1. MAIN SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
CD mechanism
deck
#3
#3
#3
#3
#3
#5
#5
4
3
5
1
1
2
2
6
Front panel section
Chassis section
#3
#3
#3
#3
#3
M961
9
8
10
11
7
13
11
12
1 3-363-099-01 SCREW(CASE 3 TP2)
2 3-363-099-41 SCREW(CASE 3 TP2)
3 4-224-549-11 CASE(SIDE-L) (IA)
3 4-224-549-21 CASE(SIDE-L) (EXCEPT IA)
4 X-4952-396-1 PANELASSY, LOADING (EXCEPT E)
4 X-4952-891-1 PANEL ASSY, LOADING (E)
5 4-224-548-11 CASE(SIDE-R) (IA)
5 4-224-548-21 CASE(SIDE-R) (EXCEPT IA)
6 4-224-550-11 UPPER CASE(TOP) (IA)
6 4-224-550-41 UPPER CASE(TOP) (EXCEPT IA)
7 A-4724-973-A VIDEO BOARD, COMPLETE
8 4-224-547-31 PANEL, BACK (E,EA,HK,MY,SP,TW,JE)
8 4-224-547-51 PANEL, BACK (TH)
8 4-226-245-41 PANEL, BACK (IA)
9 4-225-252-01 CUSHION (FOOT)
10 4-227-984-11 COVER (DUCT) (IA)
10 4-227-984-21 COVER (DUCT) (EXCEPT IA)
11 4-951-620-01 SCREW (2.6X8), +BVTP
12 1-678-153-11 SENSOR BOARD
13 1-792-246-11 WIRE(FLAT TYPE) (23 CORE)
M961 1-698-792-11 FAN, DC
