Sony HCD-VX33 - Printed Wiring Board BD Section

HCD-VX33
2828

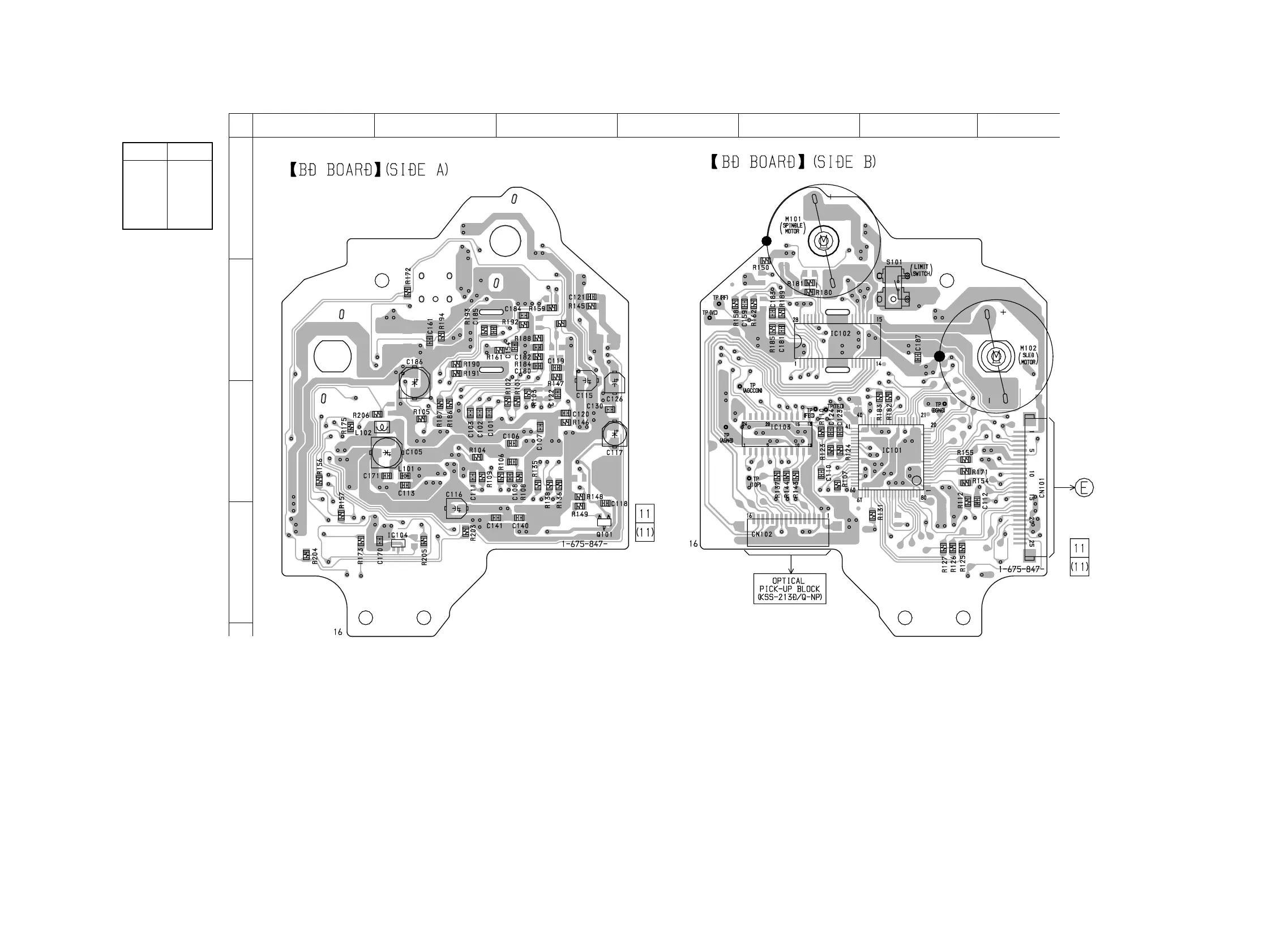

7-3. PRINTED WIRING BOARD BD SECTION
• See page page 23 for Circuit Boards Location.
12
A
B
C
D
34567
TO
VIDEO BOARD
(Page 42)
Ref. No. Location
IC101 C-6
IC102 B-5
IC103 C-5
IC104 D-2
Q101 D-3
• Semiconductor
Location
