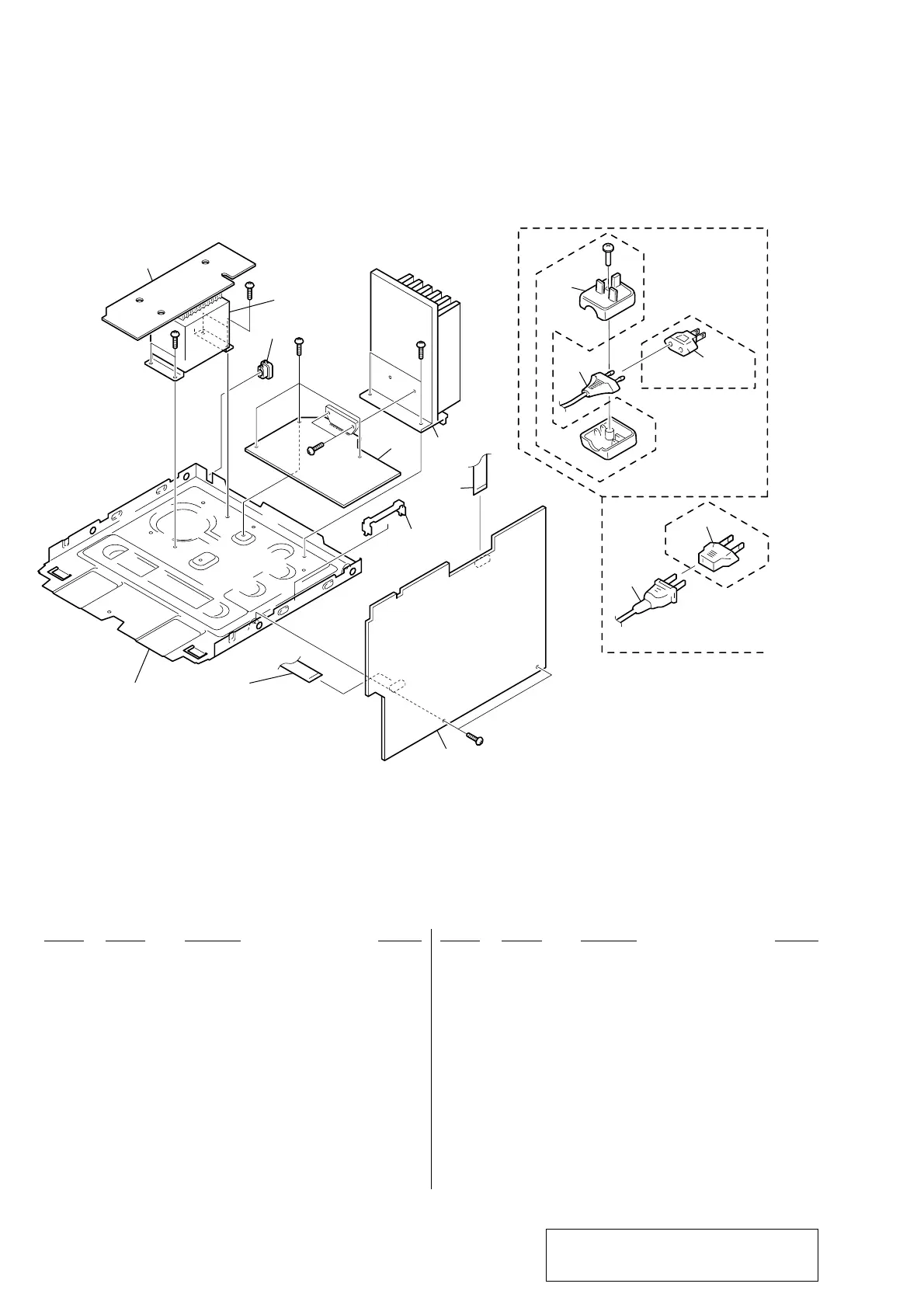

8-3. MAIN BOARD SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
EA,IA,TH,JE,E
109
110
108
108
MY,SP,TW,EA
MY,SP,TW,HK,EA
EA,IA,
JE,E
HK
109
#3
#3
#4
#7
#2
#7
103
107
106
101
102
104
105
not supplied
T971
not supplied
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
101 1-773-042-11 WIRE (FLAT TYPE) (17 CORE)
102 A-4428-031-A MAIN BOARD, COMPLETE (HK,MY,SP)
102 A-4428-543-A MAIN BOARD, COMPLETE (IA)
102 A-4428-605-A MAIN BOARD, COMPLETE (E,EA)
102 A-4428-611-A MAIN BOARD, COMPLETE (TH)
102 A-4473-582-A MAIN BOARD, COMPLETE (JE)
102 A-4473-589-A MAIN BOARD, COMPLETE (TW)
* 103 4-988-533-01 HOLDER, PWB
104 1-769-986-11 WIRE (FLAT TYPE) (13 CORE)
105 A-4428-542-A TRANS BOARD, COMPLETE (IA)
105 A-4428-604-A TRANS BOARD, COMPLETE
(E,EA,HK,MY,SP,TW,JE)
105 A-4428-610-A TRANS BOARD, COMPLETE (TH)
106 3-703-571-11 BUSHING (S) (4516),CORD (EA,TH,JE)
106 4-966-266-01 BUSHING (S) (FBS002),CORD (IA)
106 3-703-244-00 BUSHING (2104), CORD (E,HK,MY,SP,TW)
107 A-4428-064-A AMP BOARD, COMPLETE
(E,EA,HK,MY,SP,TW,JE)
107 A-4428-064-A AMP BOARD, COMPLETE (IA)
107 A-4428-590-A AMP BOARD, COMPLETE (TH)
0108 1-791-901-11 CORD, POWER (E,TH,IA,JE)
0108 1-777-071-81 CORD, POWER (EA,HK,MY,SP,TW)
0109 1-569-007-11 ADAPTOR, CONVERSION 2P (E,IA,JE)
0109 1-569-008-21 ADAPTOR, CONVERSION 2P (EA,MY,SP,TW)
0110 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK)
0T971 1-435-371-11 TRANSFORMER, POWER
