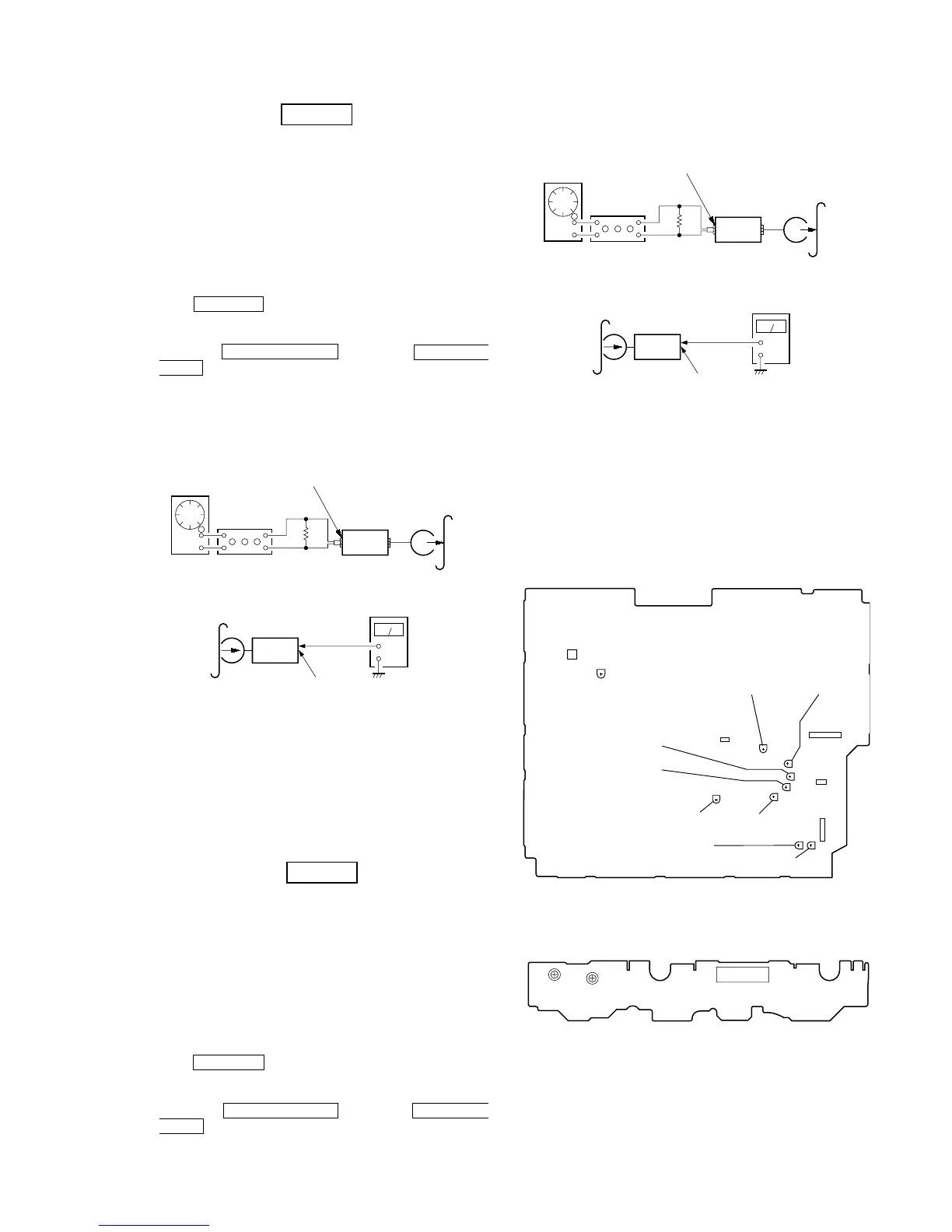

4. Mode: Record
5. Mode: Playback
6. Confirm playback the signal recorded in step 3 become
adjustable level as follows.
If these levels do not adjustable level, adjustment the RV301
(L-CH) and RV351 (R-CH) on the MAIN board to repeat steps
4 and 5.
Adjustable level:
CN301 PB level: 47.2 to 53.0 mV (24.3 to 23.3 dB)
Adjustment Location: MAIN board
[MAIN BOARD] (Component Side)
[LEAF SW BOARD] (Component Side)
REC Bias Adjustment DECK B
Procedure:
INTRODUCTION
When set to the test mode performed in Tape Speed Adjustment,
when the tape is rewound after recording, the REC memory mode
which rewinds only the recorded portion and playback is set.
This REC memory mode is convenient for performing this
adjustment. During recording, the input signal FUNCTION will
automatically switch to VIDEO.
(If do not operation of stopped from recording complete, and rotette
of shuttle knob then rewind to recording start position.)
1. Press MD/VIDEO button to select VIDEO. (This step is not
necessary if the above test mode has already been set.)
2. Insert a tape into deck B.
3. After press REC PAUSE/START button, press REC PAUSE/
START button, then recording start.
4. Mode: Record
5. Mode: Playback
6. Confirm playback the signal recorded in step 3 become
adjustable level as follows.
If these levels do not adjustable level, adjustment the RV304
(L-CH) and RV354 (R-CH) on the AUDIO board to repeat steps
4 and 5.
Adjustable level: Playback output of 315 Hz to playback output
of 10 kHz: ±1.0 dB
Adjustment Location: MAIN board
REC Level Adjustment
DECK B
Procedure:
INTRODUCTION
When set to the test mode performed in Tape Speed Adjustment,
when the tape is rewound after recording, the REC memory mode
which rewinds only the recorded portion and playback is set.
This REC memory mode is convenient for performing this
adjustment. During recording, the input signal FUNCTION will
automatically switch to VIDEO.
(If do not operation of stopped from recording complete, and rotate
of shuttle knob then rewind to recording start position.)
1. Press MD/VIDEO button to select VIDEO. (This step is not
necessary if the above test mode has already been set.)
2. Insert a tape into deck B.
3. After press REC PAUSE/START button, press REC PAUSE/
START button, then recording start.
attenuator
set
MD/VIDEO (AUDIO) IN
1) 315 Hz
2) 10 kHz
50 mV (23.8 dB)
600
blank tape
CN-123
AF OSC
+
set
recorded
portion
CN301 (Pin 3 : L-CH)
(
Pin 1 : R-CH
)
level meter
set
MD/VIDEO (AUDIO) IN
315 Hz, 50 mV (23.8 dB)
blank tape
CS-123
600
attenuator
AF OSC
+
set
recorded
portion
CN301 (Pin 3 : L-CH)
(
Pin 1 : R-CH
)
level meter
TAPE SPEED
RV1002
RV1001
(NORMAL) (HIGH)
CN1001
T601
RV611
RV351
RV354
RV304
RV303
RV302
RV352
RV353
RV301
CN301
CN304
CN302
CN303
13
REC LEVEL (L)
(B)
PB LEVEL (L)
(B)
PB LEVEL (L)
(A)
PB LEVEL (R)
(A)
PB LEVEL (R)
(B)
REC LEVEL (R)
(A)
REC LEVEL (L)
(A)
REC LEVEL (R)
(B)
