Sony HCD-VX77 - Front Panel and Tape Mechanism Disassembly

8
7
CD mechanism deck (CDM58)
Front panel section
3 Connector (CN2)
8 Connector (CN201)
9 Connector (CN202)
2 Connector (CN1)
Connector
(CN601)
1 Flat type wire (CN304)
6 Three screws (+BVTT 3 × 6)
5 Screw (+BVTP 3 × 10)
4 Screw (+BVTP 3 × 10)
0Two screws (+BVTP 3 × 10)
qaTwo screws (+BVTP 2.6 × 8
)
qs
6 Tape mechanism deck
5 Five screws (+BVTP 2.6 × 8)
1 Screw (+BVTP 2.6 × 8
)
2 Bracket (Heart cam R)
4 Bracket (Heart cam L)
3 Screw (+BVTP 2.6 × 8)

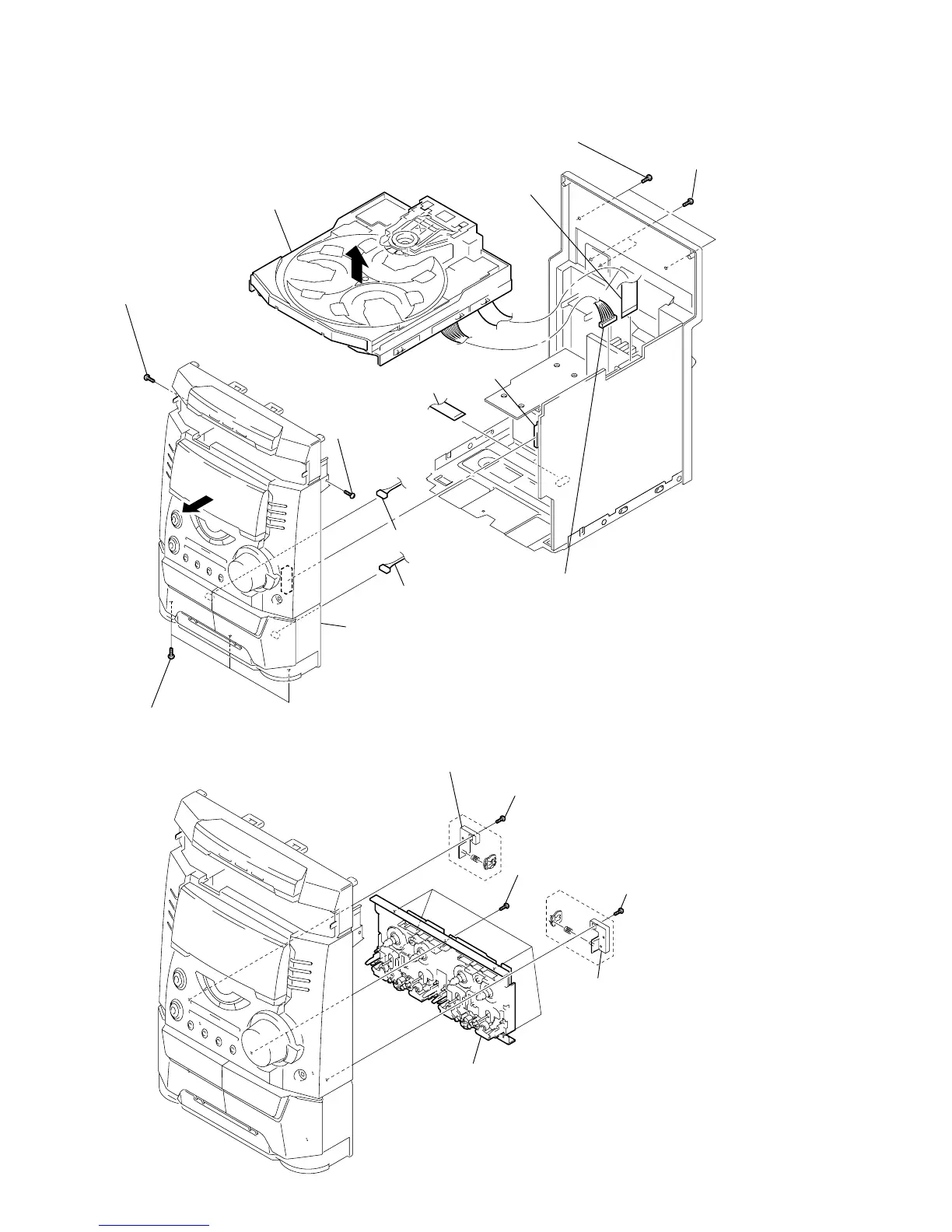

3-3. FRONT PANEL SECTION
3-4. TAPE MECHANISM DECK
