Sony HDCU3300 - PIX Output Level Adjustment; WF Output Level Adjustment

3-9 (E)
HDCU3300/MM (J,E)

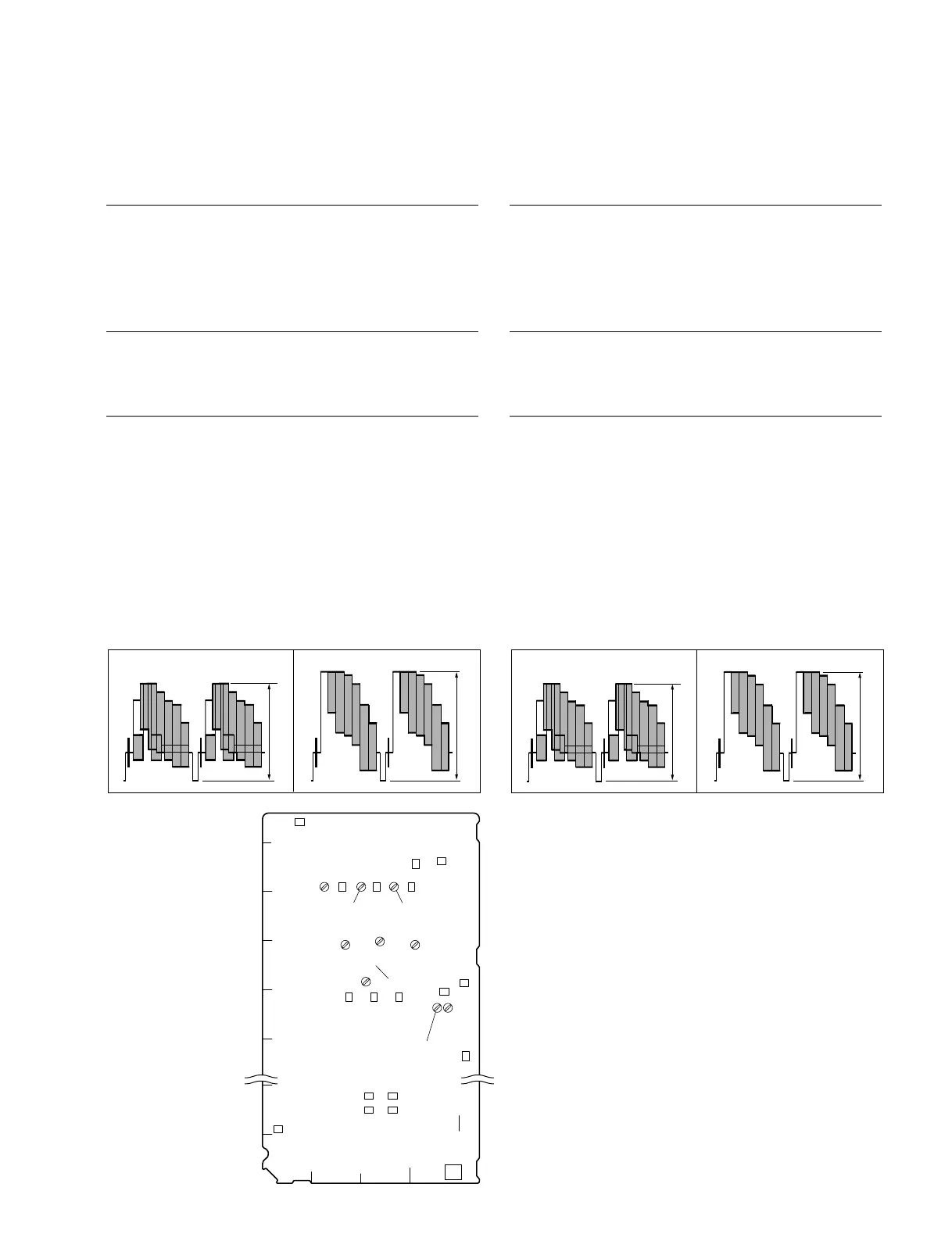

3-5-2. PIX Output Level Adjustment
Measures : SD waveform monitor (NTSC or PAL)
Note
The adjustment can be performed using PIX on page
“C09” of the configuration menu. (Fine-adjustment can be
performed when used as a system.)
Preparation
To be extended : EN-159A/159B board (front side)
Adjustment Procedure
1. Video level adjustment
Measuring point : PIX OUT connector/VDA-64A
board
Adjusting point : 1RV304 (F-3)/EN-159A/159B
board
Specifications : A = 100 ± 1 IRE
(terminated at 75 Z) (for NTSC)
A = 700 ± 7 mV
(terminated at 75 Z) (for PAL)
[for PAL]
[for NTSC]
AA
3-5-3. WF Output Level Adjustment
Measures : SD waveform monitor (NTSC or PAL)
Note
The adjustment can be performed using WFM on page
“C09” of the configuration menu. (Fine-adjustment can be
performed when used as a system.)
Preparation
To be extended : EN-159A/159B board (front side)
Adjustment Procedure
1. Video level adjustment
Measuring point : WF OUT connector/VDA-64A
board
Adjusting point : 1RV305 (F-4)/EN-159A/159B
board
Specifications : A = 100 ± 1 IRE
(terminated at 75 Z) (for NTSC)
A = 700 ± 7 mV
(terminated at 75 Z) (for PAL)
[for PAL]
[for NTSC]
AA
AB D E F G H J
1 2 3
4 5
S201
RV302
RV301
RV303
RV304
RV305
RV503
RV501
RV502
RV506 RV505
RV504
11
TP201
TP204
TP206
TP203
TP205
TP306 TP307 TP305
TP302
TP303
TP304
TP501
TP503
TP502
TP301
TP207
TP202
EN-159A/159B board (A side)
