Sony HXR-NX5R User Manual

21
Getting Started
Perform the procedure up to step 3 of “Step
2: Charging the battery pack” (p. 19).
b Notes
• The video light will not turn on when using the
AC-L100 C AC Adaptor (supplied). Use a
separate battery pack (supplied or sold
separately) to power the video light (p. 49).
• You can power the video light while supplying
power by using a DK-415 battery eliminator
connecting cable adaptor (1-782-361-xx) and a
AC-VL1 AC Adaptor/Charger (1-487-539-xx).
For details about purchasing the DK-415 battery
eliminator connecting cable adaptor and AC-
VL1 AC Adaptor/Charger, contact your Sony
dealer.
On the AC Adaptor
• Do not short-circuit the DC plug of the AC
Adaptor or battery terminal with any metallic
objects. This may cause a malfunction.

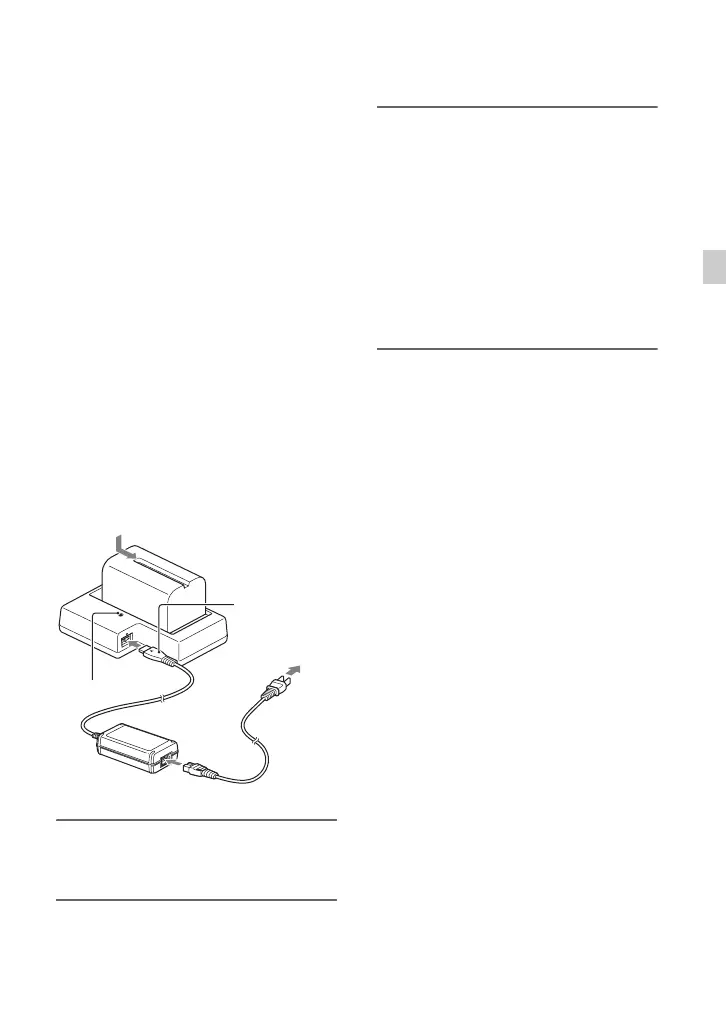

To charge the battery pack using the
supplied battery charger (BC-L1)
1 Connect the DC plug to the DC IN
jack of the battery charger.
2 Connect the power cord (mains
lead) to the AC Adaptor and the
wall outlet (wall socket).
3 Push the battery in and slide it in
the direction of the arrow in the
diagram.
The CHG lamp lights up and charging
starts.
When charging ends, the CHG lamp
turns off.
Slide the battery pack out in the
opposite direction and remove it from
the battery charger.
b Note
• Even if the CHG lamp is not lit, the battery
charger is not disconnected from the AC power
source (mains) as long as it is connected to the
wall outlet (wall socket).
CHG lamp
Power cord
DC plug
To power outlet

Sony HXR-NX5R Specifications

General

Camcorder type	Handheld camcorder
Minimum illumination	1 lx
Supported aspect ratios	4:3, 16:9
Product color	Black
DC-in jack	Yes
PictBridge	No
Composite video out	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	0
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	7.2 h
Battery technology	-
Video resolutions	720 x 576, 1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Maximum frame rate	50 fps
Video formats supported	AVC, AVCHD, H.264, MPEG4
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Bitrate at maximum video resolution	50 Mbit/s
Sensor type	CMOS
Total megapixels	2.07 MP
Optical sensor size	1/2.8 \
Memory slots	2
Camcorder media type	Memory card
Compatible memory cards	MS PRO Duo, SD, SDHC, SDXC
Maximum memory card size	64 GB
Internal storage capacity	- GB
Audio system	Dolby Digital
PCM digital audio	16-bit/48 kHz
Audio formats supported	PCM
Filter size	72 mm
Digital zoom	40 x
Optical zoom	20 x
Focal length range	4.1 - 82 mm
Maximum aperture number	3.4
Minimum aperture number	1.6
Focal length (35mm film equivalent)	28.8 - 576 mm
Focus adjustment	Auto/Manual
Closest focusing distance	0.01 m
Camera shutter speed	1/3 - 1/10000 s
Viewfinder type	Electronic
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cables included	AC, USB
Maximum image resolution	- pixels
Display diagonal	8.8 \

Weight and Dimensions

Depth	385 mm
Width	176 mm
Height	199.5 mm
Weight	2110 g
