Step 3: Attaching the microphone, lens cover
with hood, and video light diffuser

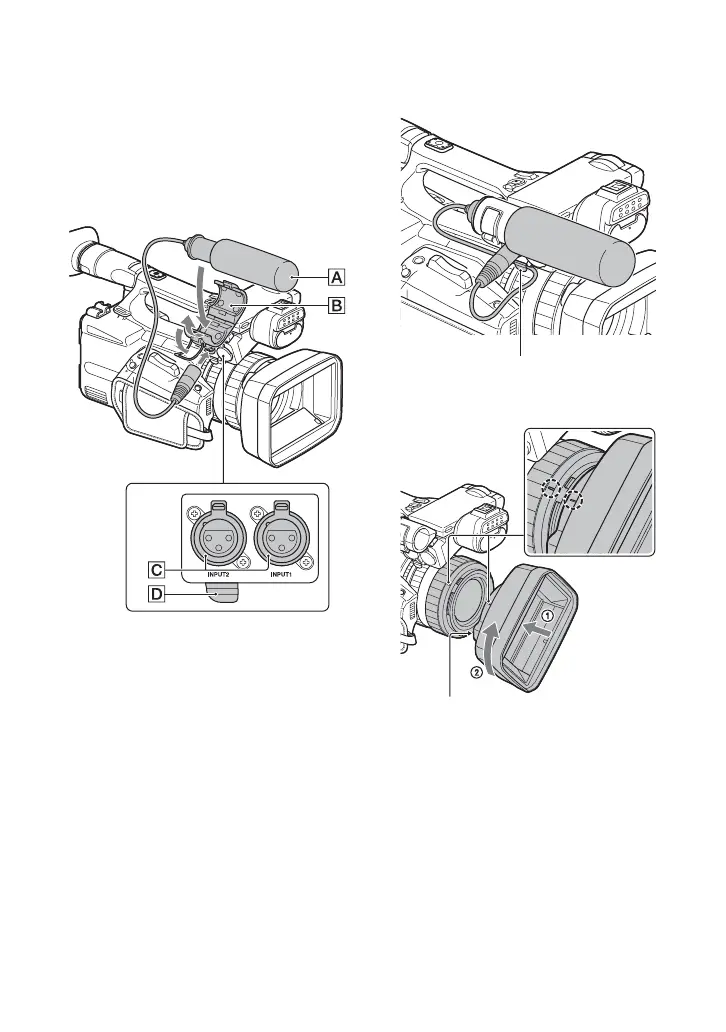

Attaching the microphone (sold
separately)
Use the following procedure to attach an
external microphone (sold separately) to
record audio.
1 Place the microphone A into the
microphone holder B.
2 Connect the plug of the microphone to
the INPUT1 jack or INPUT2 jack C.
3 Place the microphone cable into the
cable holder D.
Attaching the lens cover with hood
Align the mark on the lens hood to the mark
on the camcorder, and turn the lens hood in
the direction of the arrow
2 until it is
locked.
Removing the lens cover with hood
Press and hold the PUSH (lens hood
removal) button, and turn the lens hood in
the opposite direction to the arrow.
z Tip
• If you attach or remove a 72 mm PL filter or
MC protector, remove the lens hood.
Put the cable in the outer cable holder.
PUSH (lens hood removal) button

Sony HXR-NX5R Specifications

General

Camcorder type	Handheld camcorder
Minimum illumination	1 lx
Supported aspect ratios	4:3, 16:9
Product color	Black
DC-in jack	Yes
PictBridge	No
Composite video out	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	0
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	7.2 h
Battery technology	-
Video resolutions	720 x 576, 1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Maximum frame rate	50 fps
Video formats supported	AVC, AVCHD, H.264, MPEG4
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Bitrate at maximum video resolution	50 Mbit/s
Sensor type	CMOS
Total megapixels	2.07 MP
Optical sensor size	1/2.8 \
Memory slots	2
Camcorder media type	Memory card
Compatible memory cards	MS PRO Duo, SD, SDHC, SDXC
Maximum memory card size	64 GB
Internal storage capacity	- GB
Audio system	Dolby Digital
PCM digital audio	16-bit/48 kHz
Audio formats supported	PCM
Filter size	72 mm
Digital zoom	40 x
Optical zoom	20 x
Focal length range	4.1 - 82 mm
Maximum aperture number	3.4
Minimum aperture number	1.6
Focal length (35mm film equivalent)	28.8 - 576 mm
Focus adjustment	Auto/Manual
Closest focusing distance	0.01 m
Camera shutter speed	1/3 - 1/10000 s
Viewfinder type	Electronic
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cables included	AC, USB
Maximum image resolution	- pixels
Display diagonal	8.8 \

Weight and Dimensions

Depth	385 mm
Width	176 mm
Height	199.5 mm
Weight	2110 g
