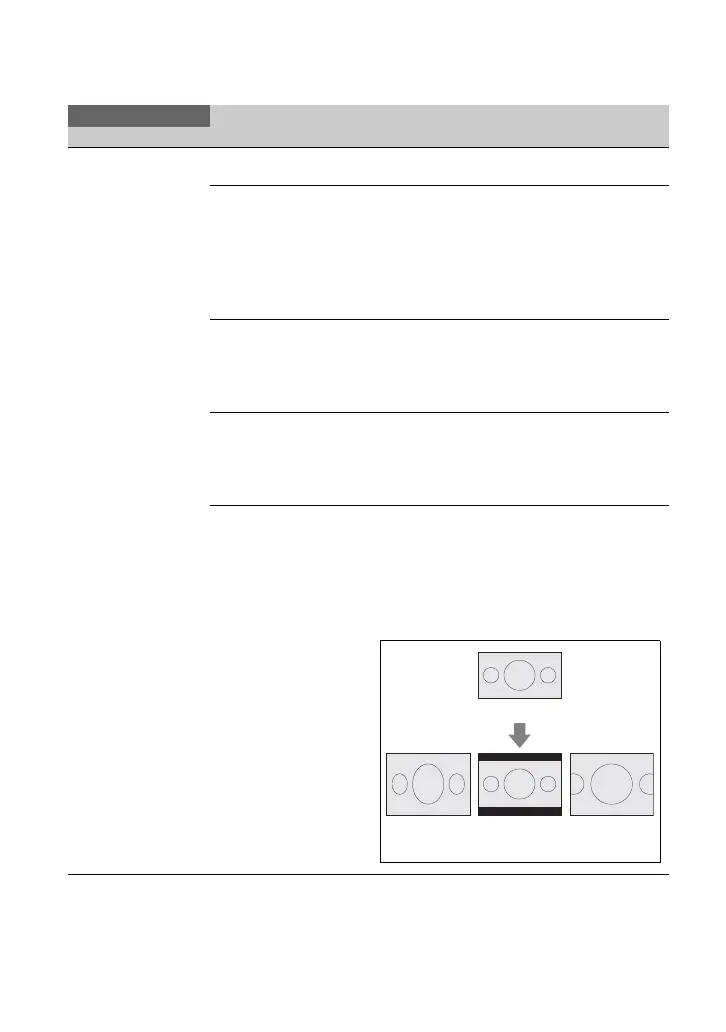

94
VIDEO OUT
OUTPUT SELECT
SDI, HDMI, VIDEO
Selects the video output destination.
SDI/HDMI
60i model:
1080p/480i, 720p/480i,
1080i/480i, 480p, 480i
50i model:
1080p/576i, 720p/576i,
1080i/576i, 576p, 576i
Selects the resolution of the output signal from
the SDI OUT/HDMI OUT jacks.
See page 62 for the format of the output
signal for each type of connection cable.
24p/30p OUTPUT
60p(Pull Down),
24p/30p, 24PsF/30PsF
Sets the SDI output format when [REC
FORMAT] is set to 24p or 30p.
Available on the 60i model only.
See page 62 for the format of the output
signal.
25p OUTPUT
50p(Pull Down), 25p,
25PsF
Sets the SDI output format when [REC
FORMAT] is set to 25p.
Available on the 50i model only.
See page 62 for the format of the output
signal.
DOWN CONVERT TYPE
SQUEEZE, LETTER
BOX (16:9), EDGE
CROP
Sets the video output signal format.
Use this function for outputting movies
recorded in 16:9 under the following
conditions.
Output from VIDEO OUT
480p/480i output from HDMI OUT
480i output from SDI OUT
REC/OUT SET
Menu item Sub-items/Settings Description
HD (16:9)
SQUEEZE LETTER
BOX(16:9)
EDGE
CROP
Menu items (Continued)
