Selecting the State After Power-on 315
Chapter
17
System
Setup
Setting the conversion format
1 Open the Engineering Setup >System >Format menu
(7313).
Setting the Screen Aspect Ratio
Switches the screen aspect ratio to 16:9 or 4:3.
Setting the screen aspect ratio

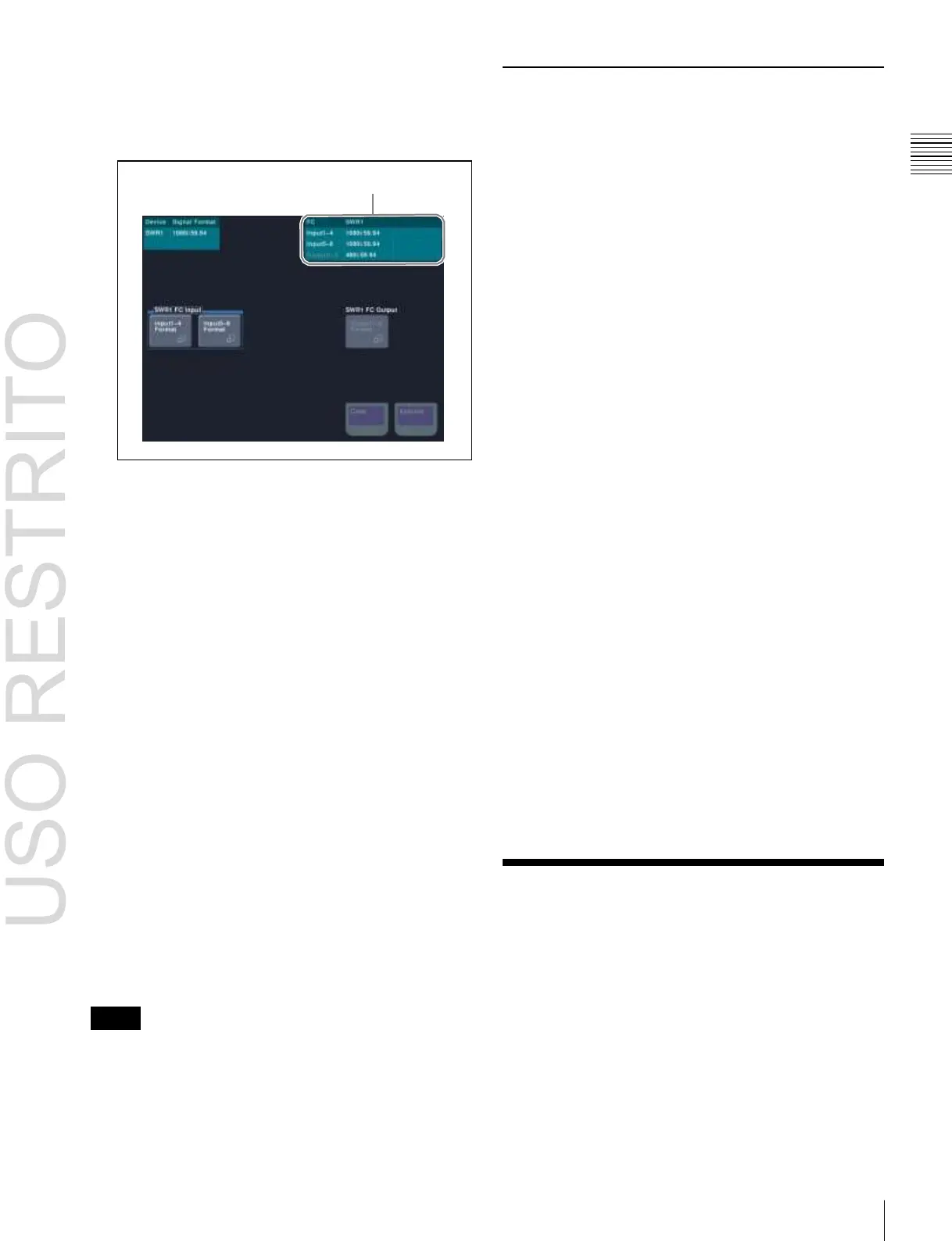

Current settings of format converter
2 Press [Format Converter].
The Format Converter menu (7313.4) appears.
3 To select the conversion format for format converter
inputs 1 to 4, press [Input 1-4 Format] in the <SWR1
FC Input> group.
4 Press the button for the desired signal format in the
pop-up window
5 Set one of the following, as determined by the setting
in “FC Config” ( 1 p. 322).
• If [8 in] is selected, press [Input 5-8 Format] and
then set the desired signal format in the same way as
in step 4.
• If [4 in 2 out] is selected, press [Output 1-2 Format]
in the <SWR1 FC Output> group and then press the
the button for the desired format.
To delay unconverted input signals (frame delay
function)
When the signal format is 1080i/59.94 or 1080i/50, you
can press [Frame Delay] in the pop-up window in step 4 to
delay input signals.
For the format of the format converter input signal, the
same format as the signal format is shown.
Notes
You can set the delay amount in units of frames, up to eight
frames.
For details, 1 “Selecting the Input to which the Frame
Delay Function Applies” (p. 349).
1 In the Engineering Setup >System >Format menu
(7313), press [Aspect].
The Aspect menu (7313.1) appears.
2 In the <Screen Aspect> group, select one of the
following.
16:9
4:3
Independ: Set the screen aspect ratio separately for
M/E, P/P, and User on the switcher, and for each
channel independently on the DME.
3 If you selected [Independ] in step 2, select from the
following.
Switcher Aspect: Make the setting for the switcher.
DME Aspect: Make the setting for the DME.
A menu appears according to the selection.
4 Carry out either of the following, depending on the
selection you made in step 3.
IF you selected [Switcher Aspect]: In each of the
<M/E-1>, <P/P>, and <User> groups, select either
[16:9] or [4:3].
If you selected [DME Aspect]: In each of the <CH1>
and <CH2> groups (for DME1) or <CH1> to
<CH4> groups (for DME2), select either [16:9] or
[4:3].
5 Press [Aspect Execute].
6 Check the message, then press [Yes].
Selecting the State After
Power-on
Sets the initial state of the devices when the system is
powered on.
For each device, you can select Resume mode or Custom
mode.
Resume mode
This resumes the setting state at the previous power-off
operation. This setting is only available for the switcher
processor and control panel.
