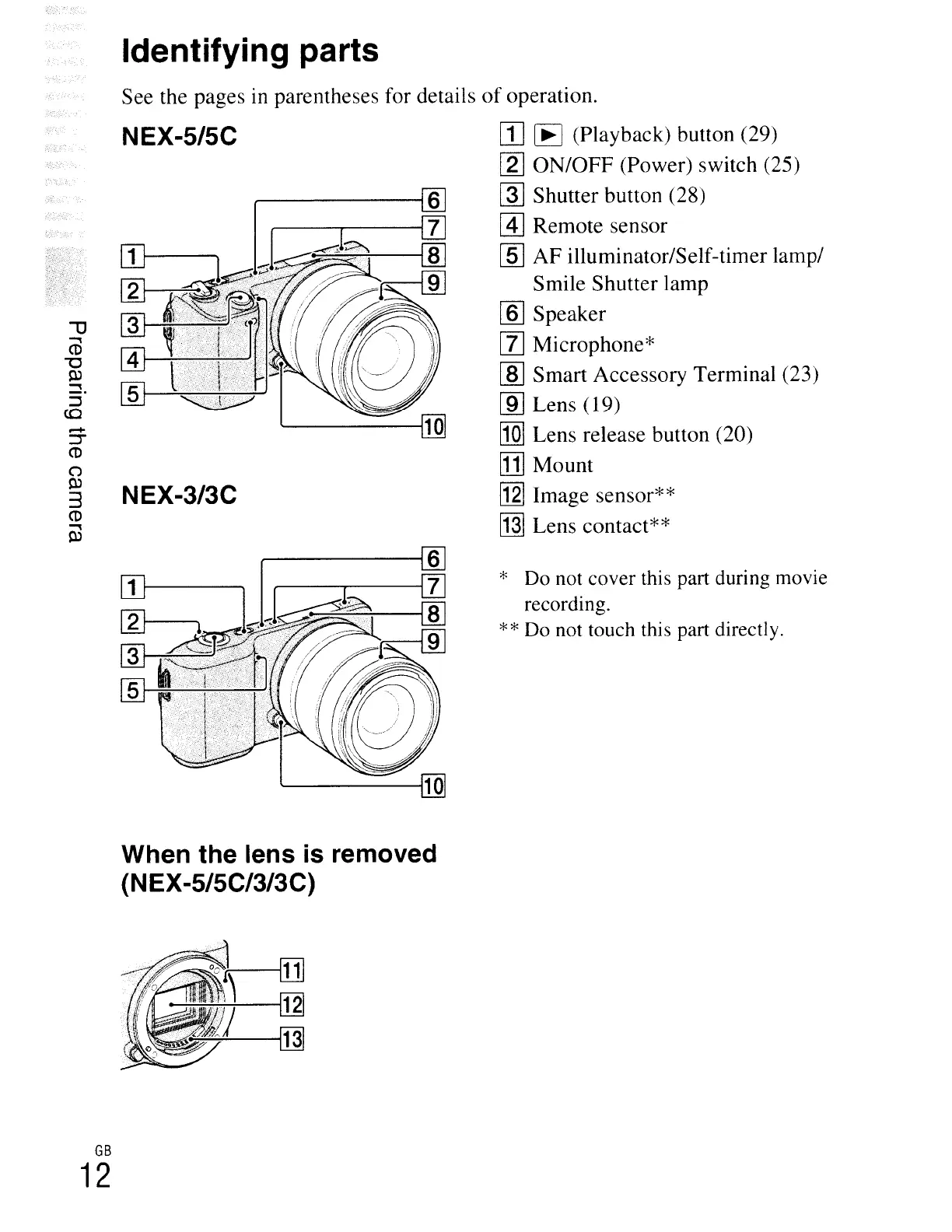

Identifying parts
See the pages in parentheses for details of operation.
NEX-5/5C
r-+
::T
CD
()
~ NEX-3/3C
CD
~
~
'-----------110
rn ~ (Playback) button (29)
[2] ON/OFF (Power) switch (25)
~ Shutter button (28)
@] Remote sensor
[§] AF illuminator/Self-timer lamp/
Smile Shutter lamp
[ID Speaker
IlJ Microphone*
[ID Smart Accessory Terminal (23)
~ Lens (19)
[Q] Lens release button (20)
[j] Mount
1121 Image sensor**
~ Lens contact**
* Do not cover this part during movie
recording.
** Do not touch this part directly.
When the lens is removed
(NEX-5/5C/3/3C)
