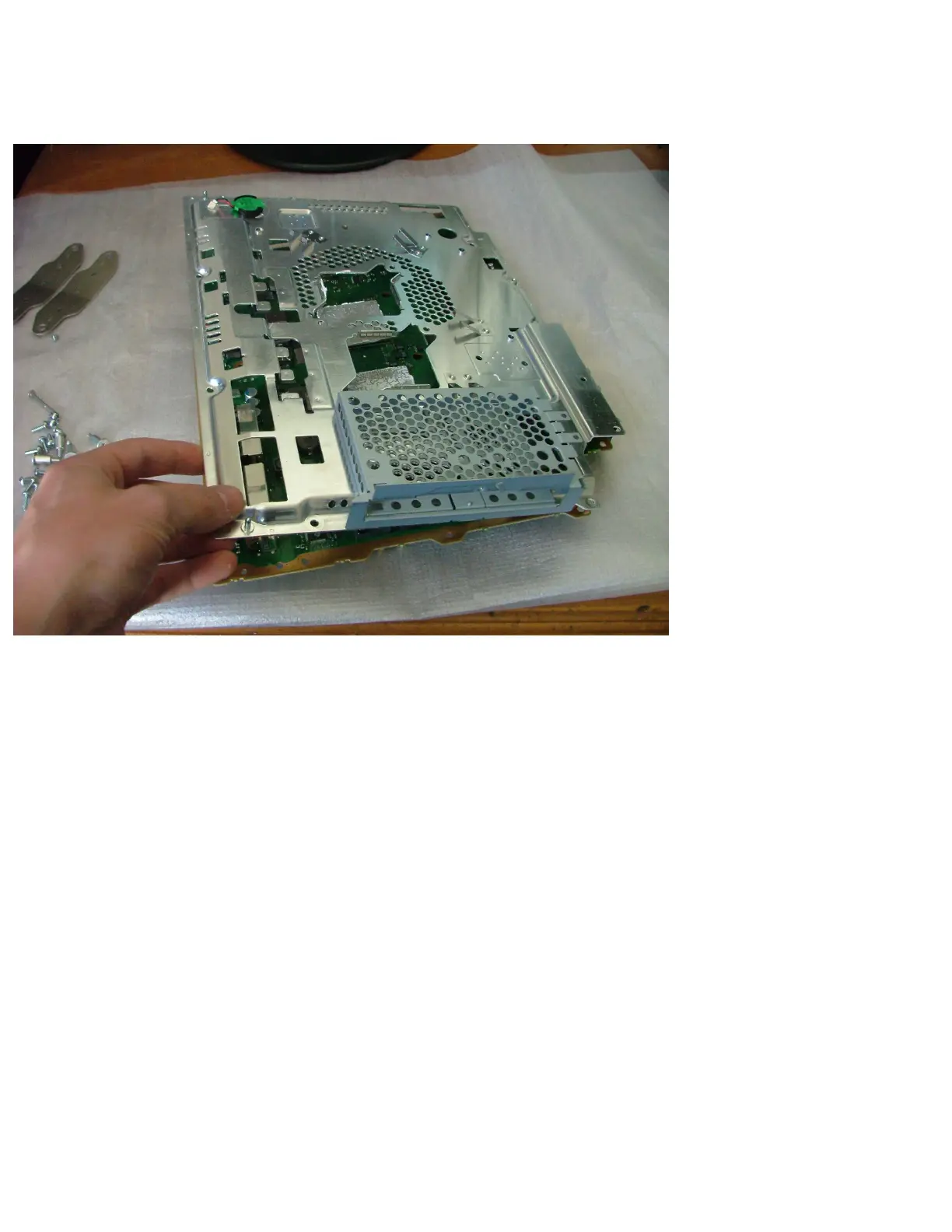

After you get the heat sink off, you can lift up the metal shielding. Be gentle with this as the shielding
as it is very thin and bending it could possibly cause the shielding to short out something on the
motherboard when the PS3 is reassembled.
Now flip the motherboard over again, and remove the metal shielding on the other side and you will
now see the naked motherboard:
Top Side:
