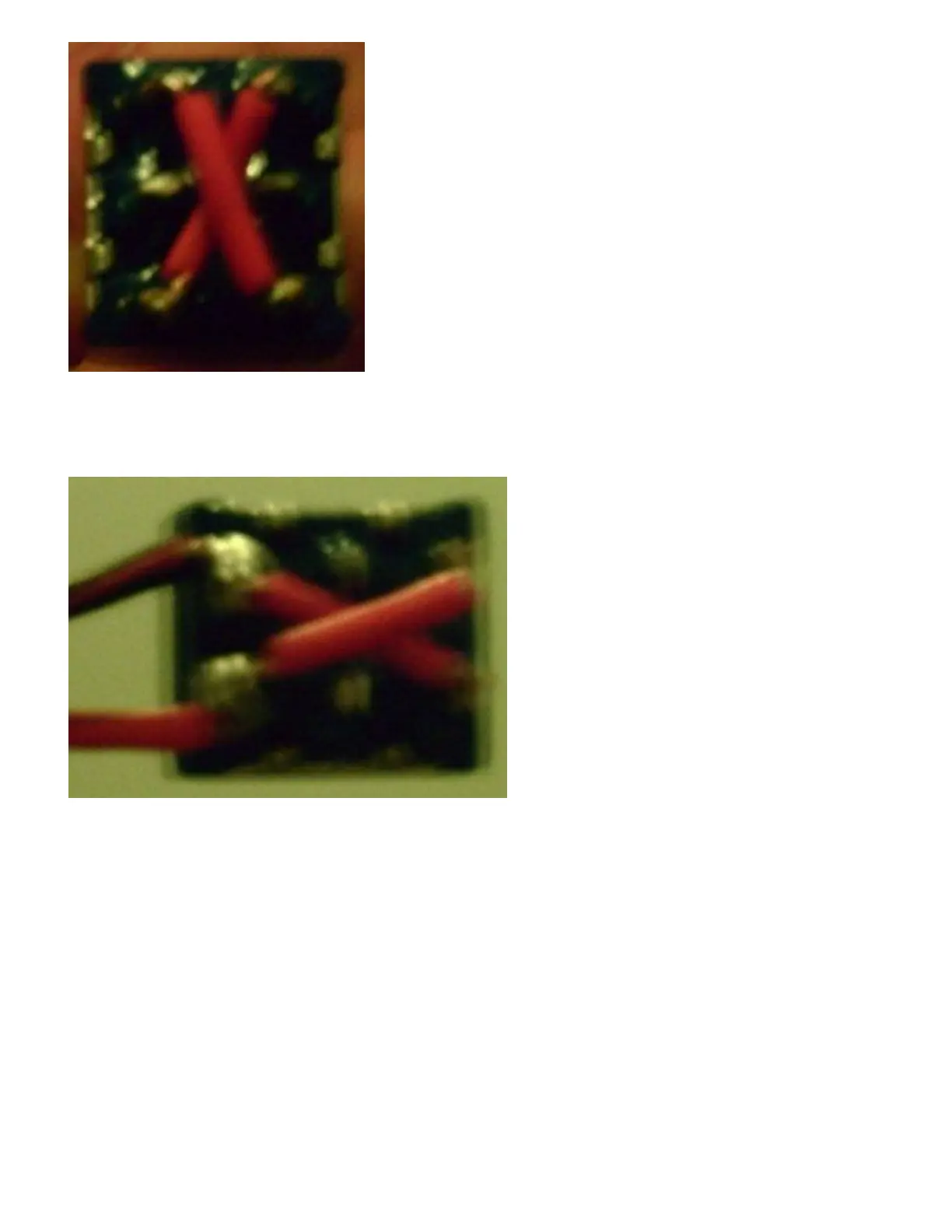

3. Solder a RED wire to pin 4, and a BLACK wire to pin 1. This will be your power wires that run
to your Blu-ray load/unload motor. I'd say make the length about a foot just to be safe. You can
cut off what you don't need later.
4. Pin 2 and pin 5 are the power source. Doesn't matter which way you connect those. I'm using a
plug-in power adapter with an output switch on it up to 12 volts. It's set at 3 volts.
