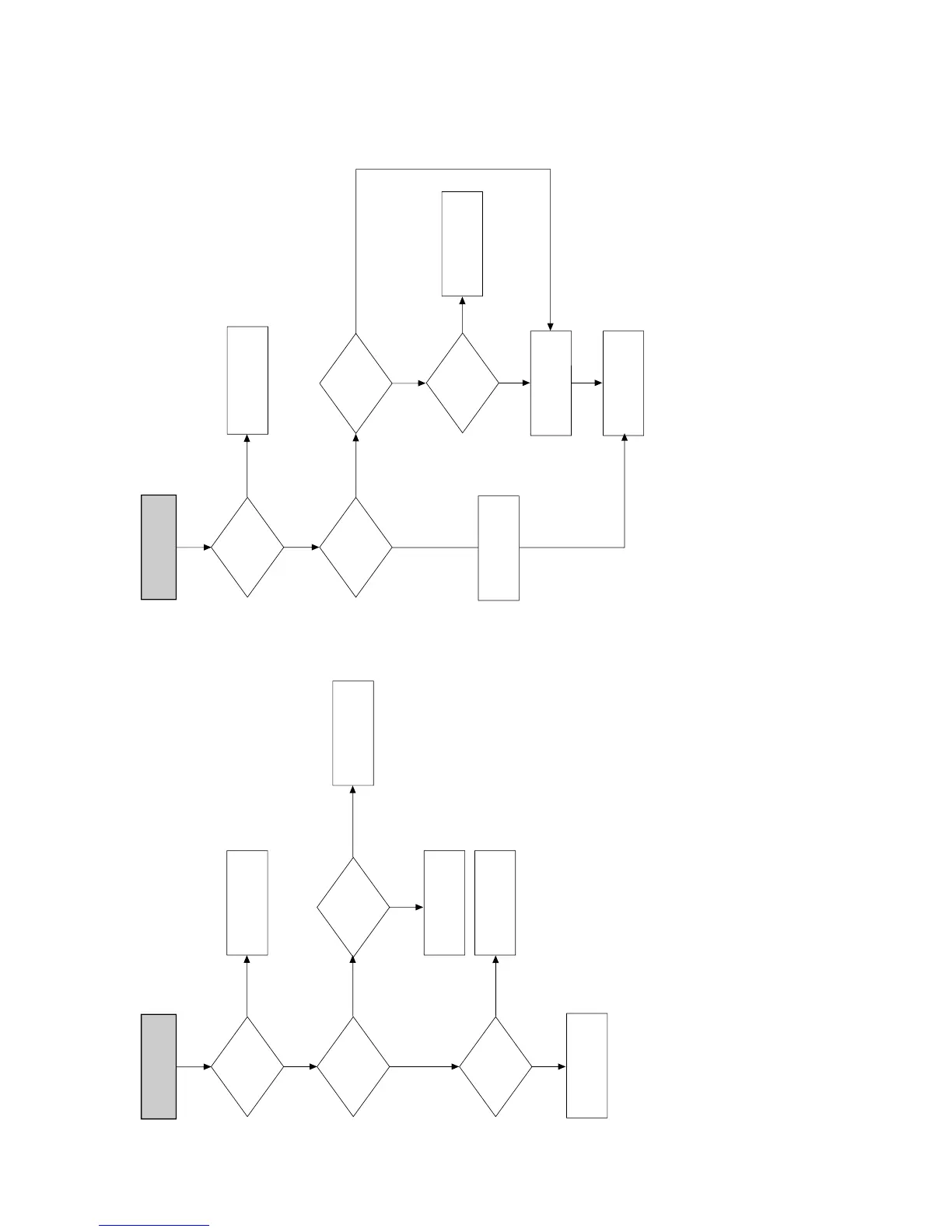

7-7
COLOR MISSING IN
RECORD MODE
(VIDEO IN)
RECORD MODE
(VCR Section)
NOTE: XT301 - Always (3.579545MHz)
COLOR signal
IC301-46
COLOR KILLER
IC301 "60"(2V)
CHANGE
IC301
CHECK THE REC LINE
SEE PAGE 7-6
(VIDEO MISSING IN RECORD
MODE)
NO
NO
NO
YES
NO
YES
CHECK XT301
CHANGE XT301
NO
NO
CHANGE IC301
COLOR MISSING IN
PLAY MODE
FM-ENV
IC301-14
COLOR-MONITOR
IC301-46
COLOR-KILLER
IC301-"6"(2V)
SW 30HZ
IC301-57
CHANGE
IC301
CHECK IC301-48, 51
XT301
CHECK IC601
SEE PAGE 7-6
(VIDEO MISSING IN PLAY MODE)
NO
NO
NO
NO
YES
YES
YES
YES
NOTE: XT301 - Always (3.579545MHz)
(VCR Section)
CHECK
IC301-26
