Sony SLV-E120AE - Topview; Underside

5-4

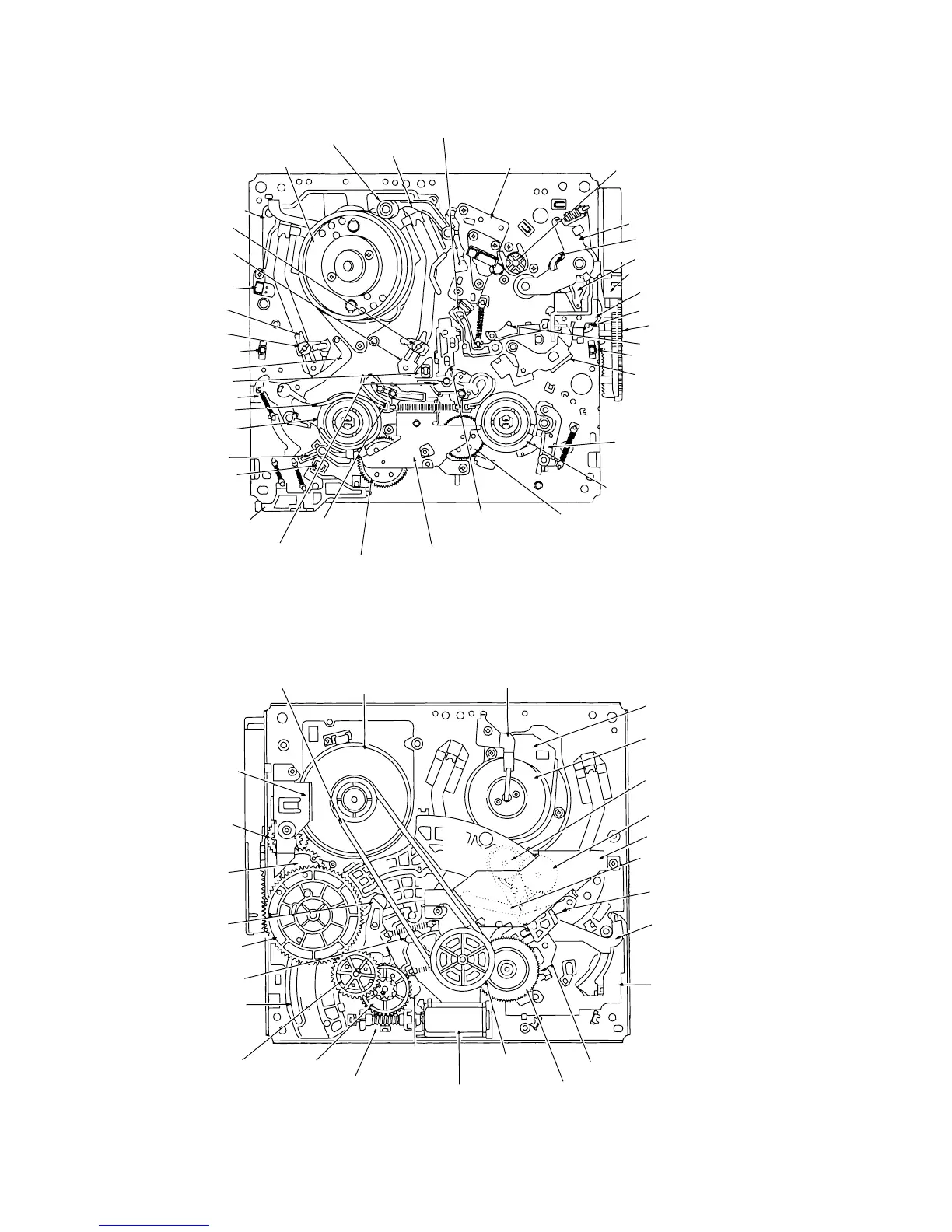

2-1-2. TOPVIEW
2-1-3. UNDERSIDE
Capstan motor
Pinch roller lever assembly
Pinch lift cam
Pinch lift mounting
Front rack gear
Opener mounting
Pinch cam gear
Start rack gear
Load lever assembly
Tape top sensor
L guide act lever assembly
T soft brake assembly
Take-up reel assembly
T reel gear
Cylinder (Drum)
Cleaner lever
Cleaner roller assembly
Capstan brake assembly
Audio R/P head assembly
(ACE head)
T brake act slide
Clutch mounting assembly
S reel gear
S brake
assembly
T brake assembly
EP sw lever
EP switch
S soft lever
Supply reel assembly
Band brake assembly
BT spring
Tape sensor LED
BT lever assembly
Tape end sensor
Guide roller assembly
S incline mounting assembly
Full erase head
T incline mounting assembly
Guide roller assembly
Cylinder mounting
Fig. 2-1-2
Fig. 2-1-3
Stator
Rotor
T load gear
S load gear
Crescent mounting
T load lever assembly
S load lever assembly
BT spring lever assembly
MC-1 PWB assembly
Reel belt
Capstan motor
Loading motor assembly
Reel pulley
Friction gear assembly
S brake act slide
Wheel gear 2 Wheel gear 1
Worm gear assembly
Cylinder earth
assembly
Brake act lever
assembly
Harness mounting
Pinch cam gear
Mode switch (S8001)
Brake control lever
Main cam
Clutch change lever
Crescent slide
