5-6

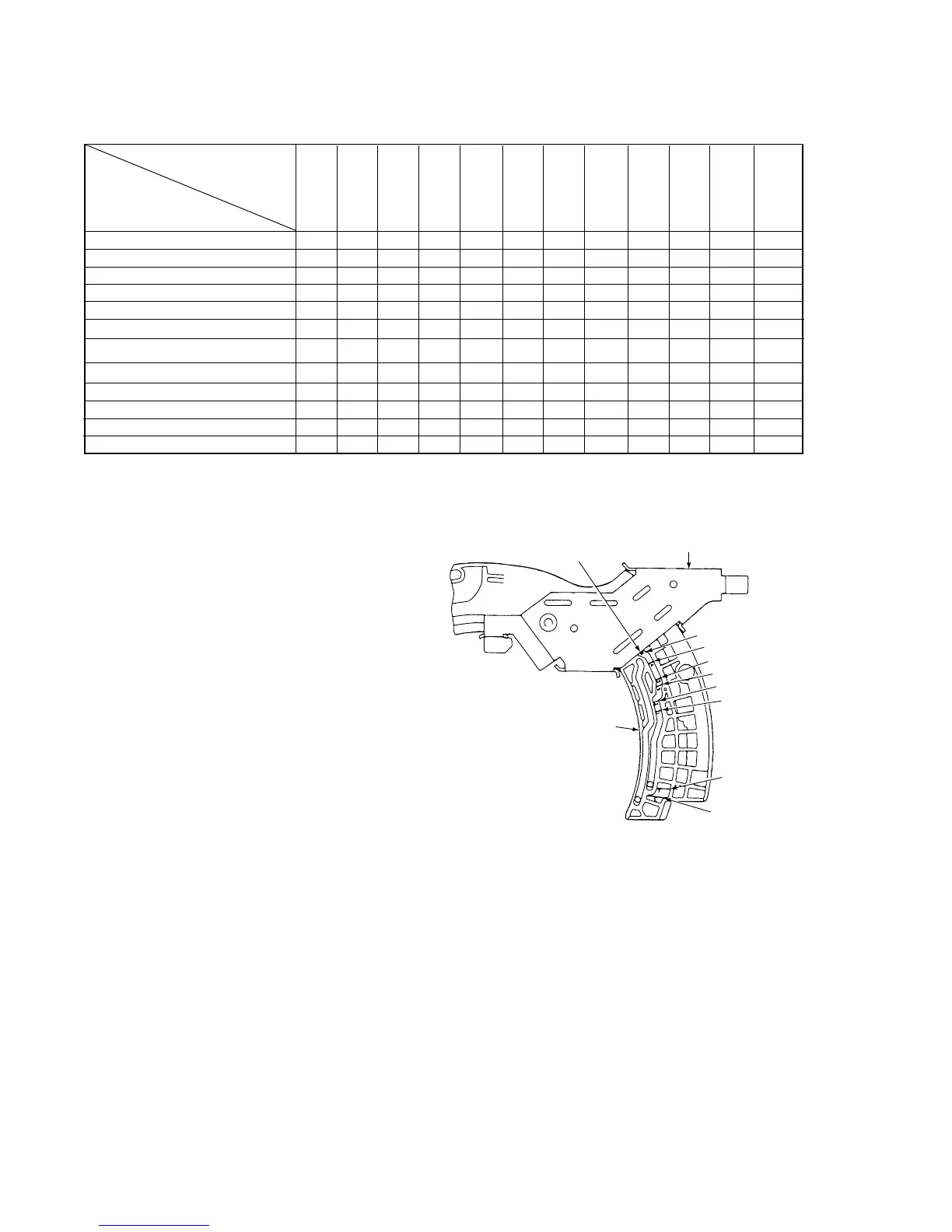

2-2-2. MOVEMENT CHECK LIST FOR THE MAIN PARTS OF THE MECHANISM
2-2-3. HOW TO CHECK THE MECHANISM MODE
POSITION
You can tell which mode the mechanism is currently in by
looking at the codes and marking-lines on the crescent
slide on the underside of the mechanism chassis. The
edge of the crescent mounting is used as the reference
line, as shown in Fig.2-2-2, and the marking-lines and
symbols indicating the mechanism modes are displayed
on the crescent slide, which slides against the edge of the
crescent mounting. The mechanism mode is read off from
the marking-line on the slide crescent which is aligned
with the reference-line on the crescent mounting.
Example: In Fig.2-2-2, marking-line 6 is aligned with the
reference-line on the crescent mounting , so the mecha-
nism is seen to be in FF/REW mode.
2-2-4. SELF-DIAGNOSIS DISPLAY
Some models are equipped with the SELF-DIAGNOSIS
DISPLAYS function.
Use it as a means of finding out the symptoms and cause
of the error before performing repairs.
For details, refer to the separate service manual for the
respective models.
6: FF/REW
4: BRAKE
5: PLAY/STOP
3: STILL/SLOW
2: IDLER
1: REVIEW
7: INITIAL
(POWER OFF)
E: EJECT
Crescent slide
Crescent mounting
The edge of the
crescent mounting
is the reference-line
Fig. 2-2-2
(S): Strength (W): Weakness
T brake assembly OFF OFF ON ON ON OFF OFF OFF OFF ON
ON/OFF
S brake assembly OFF OFF OFF OFF OFF OFF OFF OFF OFF ON
ON/OFF
T soft brake assembly OFF OFF OFF ON ON ON ON OFF OFF OFF OFF
S soft lever ON ON ON ON ON OFF OFF OFF OFF OFF OFF
BT lever assembly OFF OFF OFF OFF OFF ON ON ON ON ON ON
BT spring OFF OFF OFF OFF OFF
ON(W) ON(W) ON(S) ON(S) ON(S) ON(W)
Pinch roller lever assembly UP UP UP
UP/ DOWN/
ON OFF ON ON OFF OFF
DOWN UP
Clutch mounting assembly PLAY PLAY PLAY PLAY PLAY PLAY PLAY PLAY PLAY PLAY FF
Load lever assembly UNLO UNLO UNLO LO LO LO LO LO L LO LO
Capstan brake assembly OFF OFF OFF OFF OFF OFF OFF ON OFF OFF OFF
S and T incline mounting assembly LO UNLO
Cleaner roller assembly OFF OFF OFF (ON) (ON) OFF OFF OFF OFF OFF OFF
Principal parts
Mechanism mode
EJECT
IN REW
INITIAL
(POWER OFF)
(LOADING)
(UNLOADING)
REV
IDLER
STILL/SLOW
PLAY/STOP
BRAKE
FF/REW
