STR-DB798
10

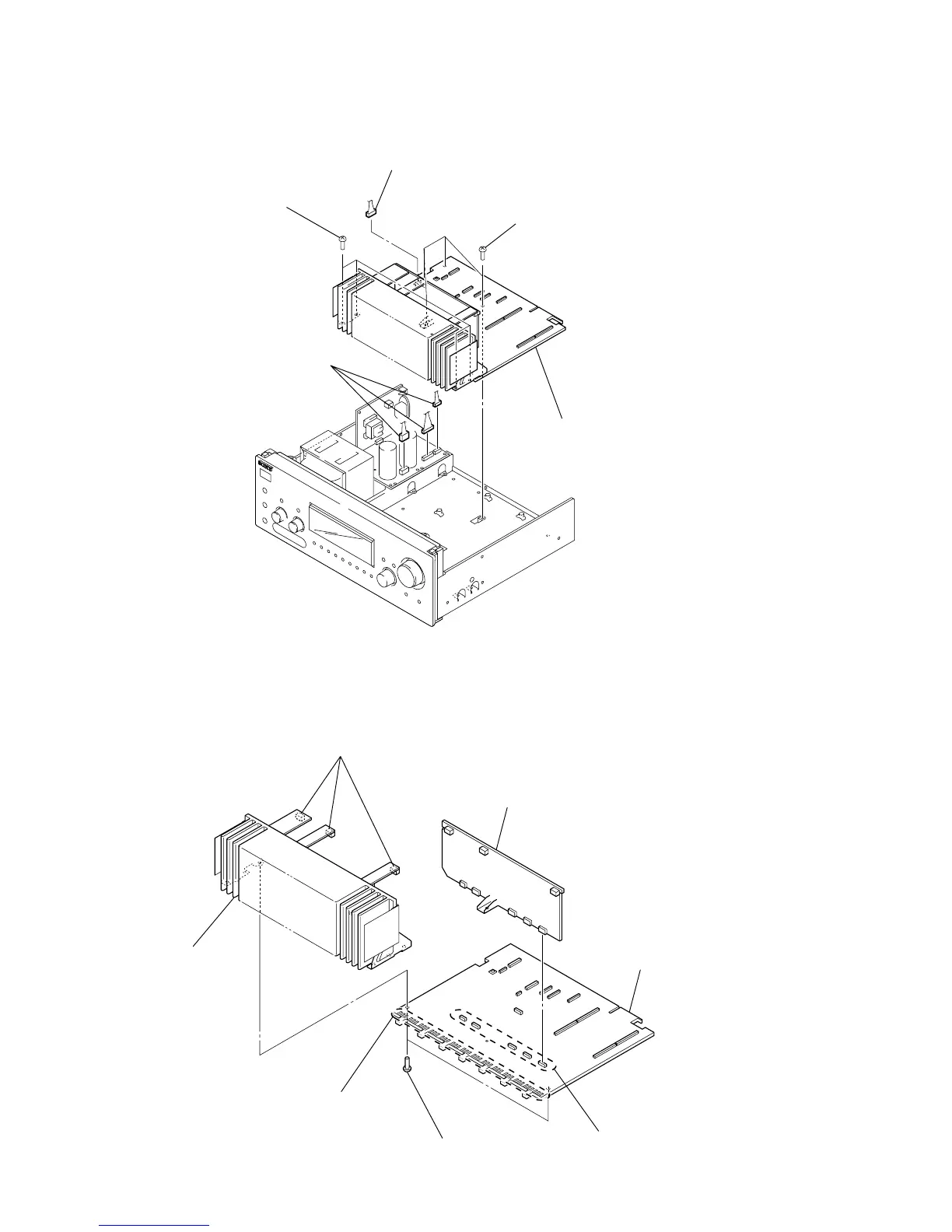

3-7. MAIN BOARD BLOCK
3-8. MAIN BOARD
3
four screws
(BVTP3
×
8)
1
connector
(CN418)
4
MAIN board bloc
k
1
three connectors
(CN907, 909, 910)
2
four screws
(BVTP3
×
8)
5
five connectors
(CN401, 421, 501, 601, 651
)
4
heat sink
assy
3
two screws
(BVTP3
×
8)
1
Remove fourty
two solders.
7
MAIN board
6
A CLASS board
2
three connectors
(CN18, 28, 38)
