STR-DB798
7

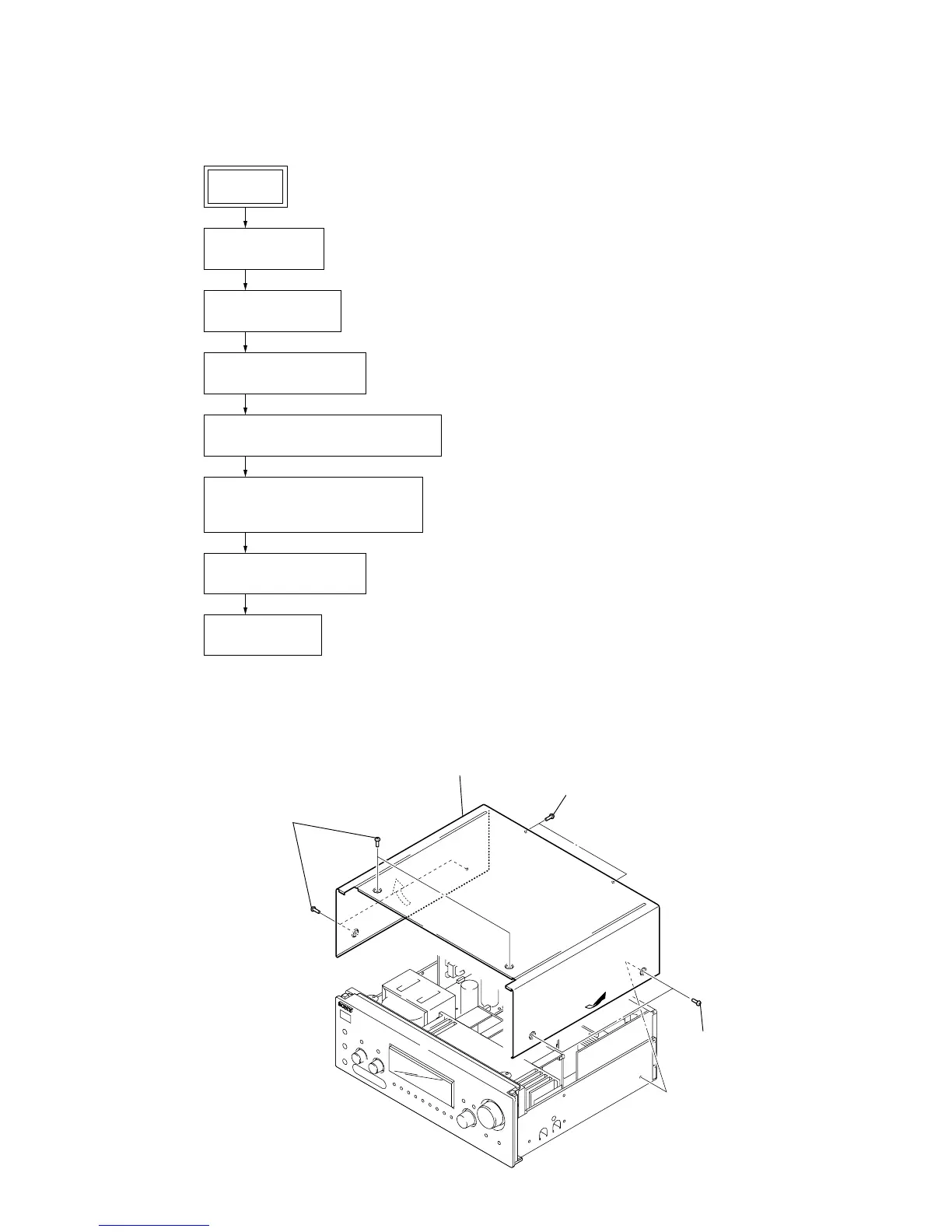

Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE
This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
SECTION 3
DISASSEMBLY
3-2. CASE
(Page 7)
SET
3-3. COMP-V BOARD
(Page 8)
3-4. BACK PANEL BLOCK
(Page 8)
3-5. DIGITAL BOARD, A/V SYNC BOARD
(Page 9)
3-6. STAY-5/AU-IN/VIDEO-AU/VIDEO/
S-VIDEO/SPK-A/SPK-B BOARD
(Page 9)
3-7. MAIN BOARD BLOCK
(Page 10)
3-8. MAIN BOARD
(Page 10)
4
case
3
two screws
(BVTP3
×
8)
2
two flat head
screws
1
four flat head
screws
