Sony STR-DB798 Service Manual

74
STR-DB798

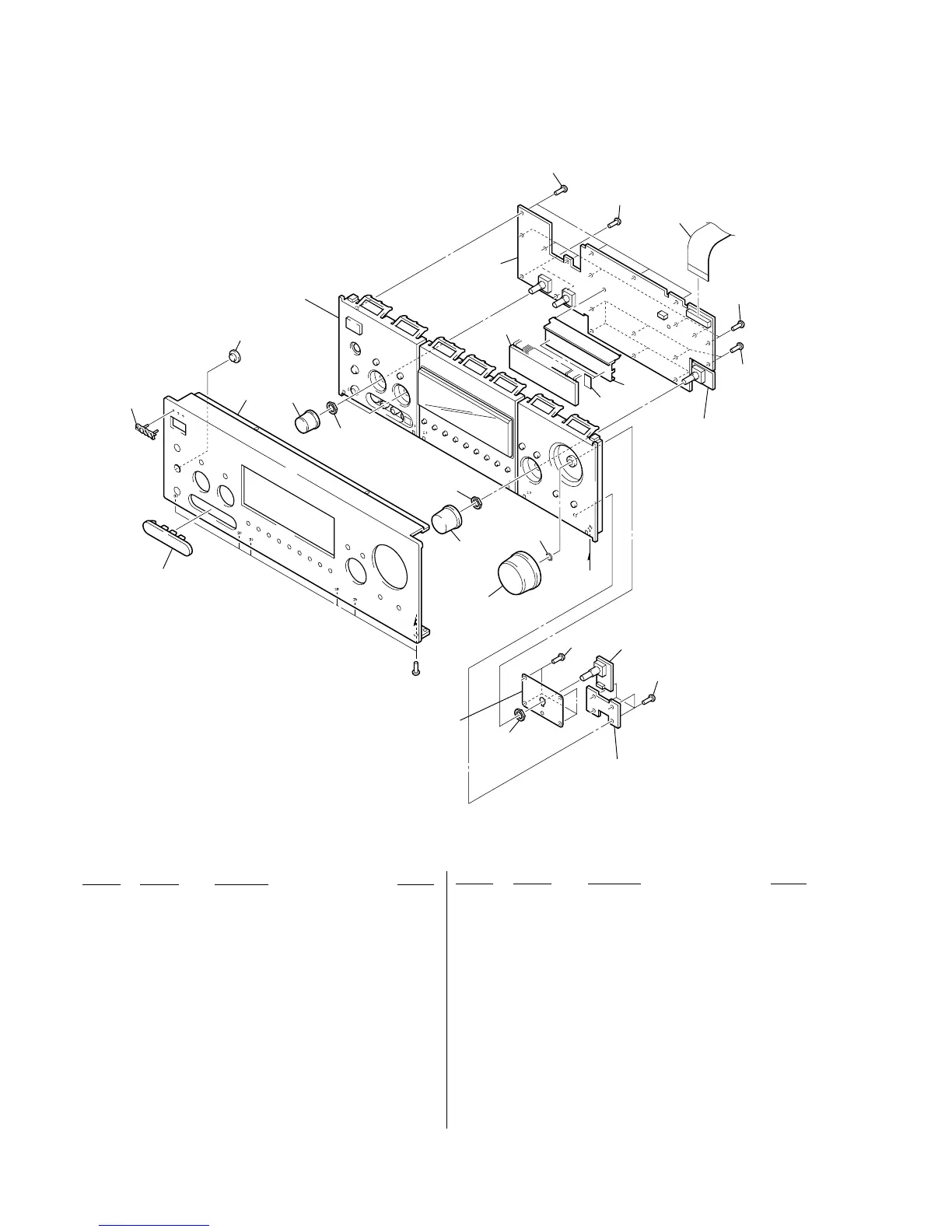

7-6. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
351 4-240-507-01 KNOB (VOL) (for BLACK)
351 X-4953-671-1 KNOB (VOL-E) ASSY (for GOLD)
351 X-4953-672-1 KNOB (VOL-E) ASSY (for SILVER)
352 4-232-569-02 KNOB (FN DE9) (for BLACK)
352 4-232-569-12 KNOB (FN DE9) (for GOLD)
352 4-232-569-22 KNOB (FN DE9) (for SILVER)
353 4-245-437-01 KNOB (MENU) (for BLACK)
353 4-245-437-21 KNOB (MENU) (for GOLD)
353 4-245-437-31 KNOB (MENU) (for SILVER)
354 1-773-339-11 WIRE (FLAT TYPE) (31 CORE)
355 1-867-412-11 DISPLAY BOARD
356 3-087-053-01 +BVTP2.6 (3CR)
357 3-350-426-01 SPRING, RING
358 2-594-538-01 FRONT PANEL (AL 798) (BLACK)
358 2-594-538-11 FRONT PANEL (AL 798) (SILVER)
358 2-594-538-21 FRONT PANEL (AL 798) (GOLD)
359 X-4955-963-2 LID ASSY (for BLACK)
359 X-4955-967-1 LID ASSY (for GOLD)
359 X-4955-968-2 LID ASSY (for SILVER)
360 X-4953-000-1 WINDOW ASSY, REMOTE CONTROL
361 4-942-568-41 EMBLEM (NO.5), SONY (for BLACK)
361 4-942-568-51 EMBLEM (NO.5), SONY (for GOLD)
361 4-942-568-61 EMBLEM (NO.5), SONY (for SILVER)
362 4-245-442-01 HOLDER (FL)
* 363 4-921-941-01 CUSHION (FL)
FL1603 1-518-966-11 VOCUUM FLUORESENT DISPLAYS
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
353
352
351
357
358
359
360
361
356
356
363
362
356
354
355
356
supplied
with RV1051, 1052
supplied
with RV1061
supplied
with RV1060
panel base section
not
supplied
#1
not supplied
(VOL board)
not supplied
(DIRECT board)
356
not supplied
(FUNC board)
FL1603
356

Sony STR-DB798 Specifications

General

Impedance	8 Ω
Supported radio bands	FM
Radio Data System (RDS)	Yes
Channels quantity	7 channels
I/O ports	Output(Component x 1, Optical Digital x 1, Composite x 1, S-Video x 1), Input(Component x 2, Optical Digital x 4, S-Video x 4, Coaxial Digital x 2, Composite x 4)
