Sony STR-DB798 Service Manual

75
STR-DB798

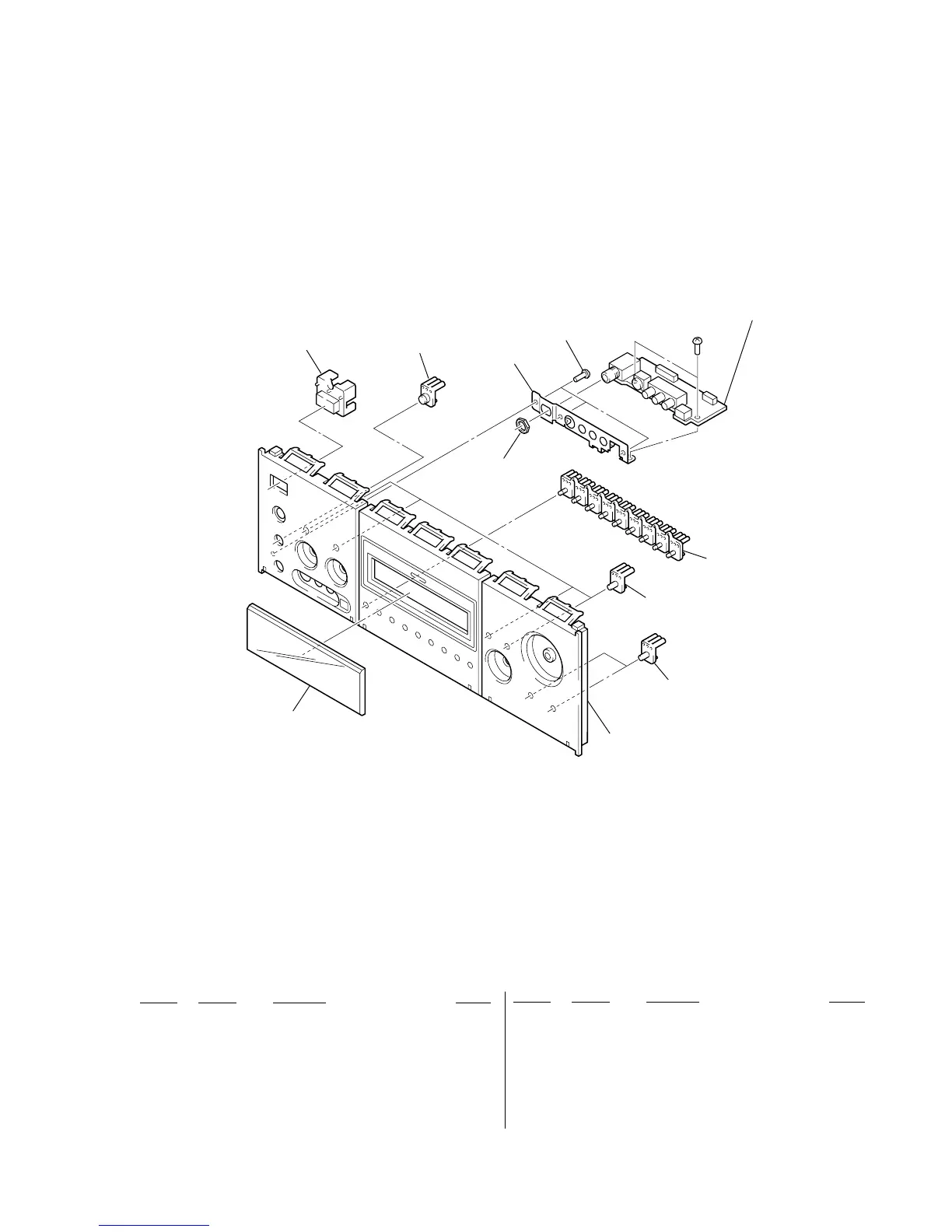

7-7. PANEL BASE SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
401 4-245-438-02 PLATE, INDICATION (for BLACK)
401 4-245-438-21 PLATE, INDICATION (for SILVER, GOLD)
402 4-998-592-01 BUTTON (POWER) (for BLACK)
402 4-998-592-12 BUTTON (POWER) (for GOLD)
402 4-998-592-31 BUTTON (POWER) (for SILVER)
403 4-245-436-01 BUTTON (MENU) (for BLACK)
403 4-245-436-21 BUTTON (MENU) (for GOLD)
403 4-245-436-31 BUTTON (MENU) (for SILVER)
405 3-087-053-01 +BVTP2.6 (3CR)
406 4-245-435-02 BUTTON (MODE)
407 4-245-434-01 BUTTON (SP) (for BLACK)
407 4-245-434-21 BUTTON (SP) (for GOLD)
407 4-245-434-31 BUTTON (SP) (for SILVER)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
401
403
406
402
407
405
not supplied
not supplied
(HP-V3 board)
#1
supplied with J1081
403
not supplied
